60 Series 2WD/4WD, Model - 8560
Hydraulics & Transmission
Adding Hydraulic and Transmission Oil
Change Transmission & Hydraulic oil at every 1000 hrs. of
operation. While changing the complete oil of transmission,
8.59 US gallon oil has to be filled in rear housing and
0.66 US gallon oil in each rear axle.
Check the level of oil in the Transmission & hydraulic
reservoir as follows,
1. Keep the tractor on level ground.
2. Clean the area around dipstick cum filler cap (A) before
removing.
3. Unscrew and remove the dipstick cum filler cap (A).
4. Clean the dipstick cum filler cap (A) and refit it in the
housing till it reaches its bottom be slight hand
pressure.
5. Again unscrew the Dipstick cum filler cap and observe
the level of oil on Dipstick of filler-level plug (A).
6. The oil level should be maintained between upper and
lower mark on the Dipstick cum filler cap.
7. Add oil of specified grade only when ever required.
Adding Oil in Rear Axle
1. Open filler cum breather (B) of both rear axle.
2. Add 0.66 US gallon oil in each rear axle.
3. Clean the breather with diesel.
4. Refit breather.

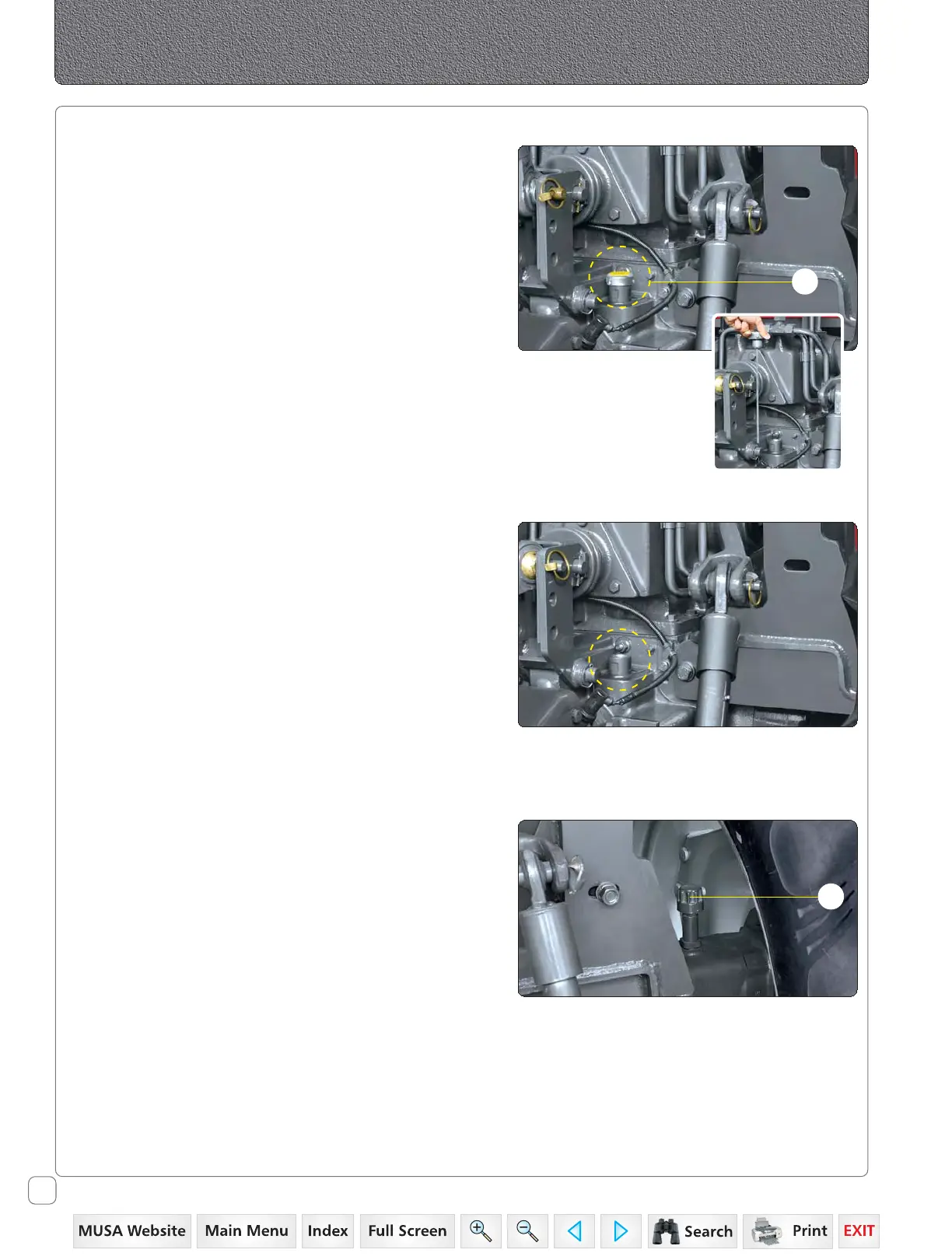

Dipstick Location
Oil Filling
Oil Level Check
Adding Oil to Rear Axle
B
A
