Controls
PTO

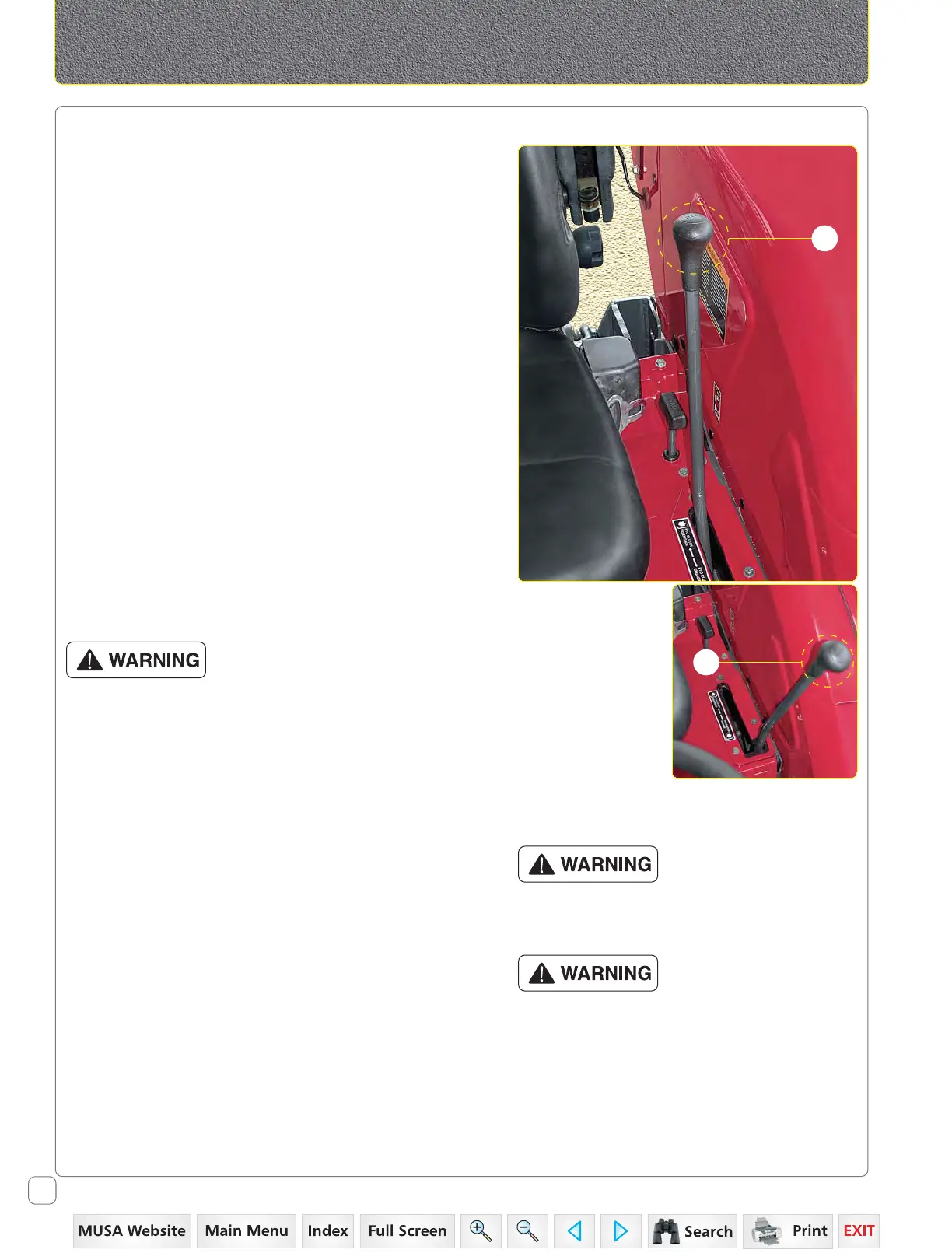

The PTO power is obtained by engaging the hand operated
IPTO lever (A).
IPTO Clutch
The term IPTO means, PTO is independent of main clutch.
The power is transmitted to PTO shaft through an IPTO
clutch which can be engaged or disengaged by IPTO clutch
lever (A) located on LH side of operator’s seat.
The IPTO clutch is always to be kept in disengaged position
and engagement of PTO drive can be achieved by putting
the IPTO lever forward in engaged position.
To engage the PTO unit, proceed as under
Move the IPTO clutch lever forward to engage the clutch.
The PTO is now in engaged position.
To disengage the PTO unit, proceed as under
Slowly move the IPTO clutch lever rearward to disengage
the clutch.
The PTO is now in disengaged position.
The free play of the PTO clutch is preset at factory. It is not
recommended to adjust the same through PTO clutch
linkage.
NOTE :
The clutch may required replacement due to normal wear,
if loss of power to PTO shaft is observed when IPTO lever
is engaged. Get the cause identified & rectified from the
nearest Mahindra dealers under such circumstances.
When PTO drive is not in use keep the IPTO lever
in disengaged position.
Firmly apply the parking brakes, place all gear
shift levers in neutral and block all four wheels
before operating any stationary PTO equipment
Do not approach or work on the PTO shaft or
equipment while the PTO is in motion.
Shut-off engine and the PTO and wait for all
movement to stop before working on the PTO
or equipment.
Disengaged
Engaged
A
A
