44
60 Series 2WD/4WD, Model - 8560

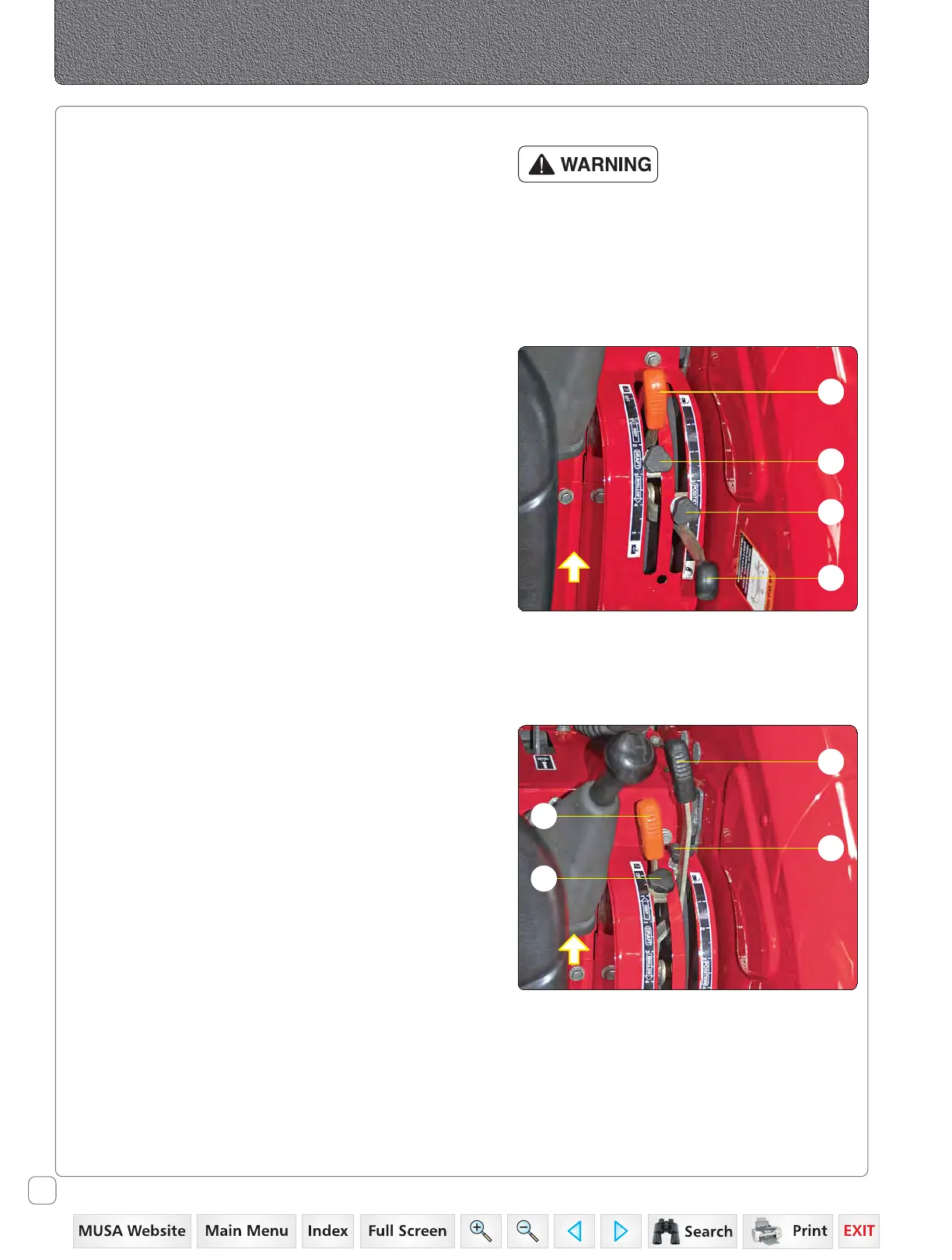

Quadrant Assembly
This system incorporates a Position control and a Draft
control. Both these controls are within easy reach of the
operator.
Position Control
This lever (D) controls the lifting and lowering of all
implements used on the three point linkage.
1. Moving the lever Forward will lower the implement.
2. Moving the lever Rearward will raise the implement.
The control can also be set by PC stop screw (C) to govern
the height of out-of-ground implements such as mowers,
rakes etc., so that the implement can be lowered to exactly
the same height at the commencement of each run.
PC lever (D) should be used for the following applications:
1. TRANSPORT of implements and turn around at the end
of the field.
2. CONSTANT DEPTH of implements on level terrain and
for non-ground engaging implements such as spreaders
or sprayers. Place the PC lever at desired depth.
Position Control Lever Stop
1. Move the DC lever (A) to its most forward position.
2. Move the PC lever (D) back to the upper limit and allow
the implement to lift fully.
3. Move the PC lever (D) forward until the implement has
reached the desired working height.
4. Set the position control stop screw (C) against the PC
lever & tighten the knob.
Whenever the lever is returned to the stop from the lift
position, the implement will return to and remain at the
preset height.
The operator must be thoroughly acquainted
with the location and use of all controls
regardless of experience, must read this section
carefully before attempting to operate the
tractor.
Tractor Front
Tractor Front
A
B
C
D
D
C
A
B
Position Control - Operation
