Mahindra 60 Series - Instrument Cluster Indicators; Indicator Lights During Operation

55
60 Series 2WD/4WD, Model - 8560
Operating Instructions

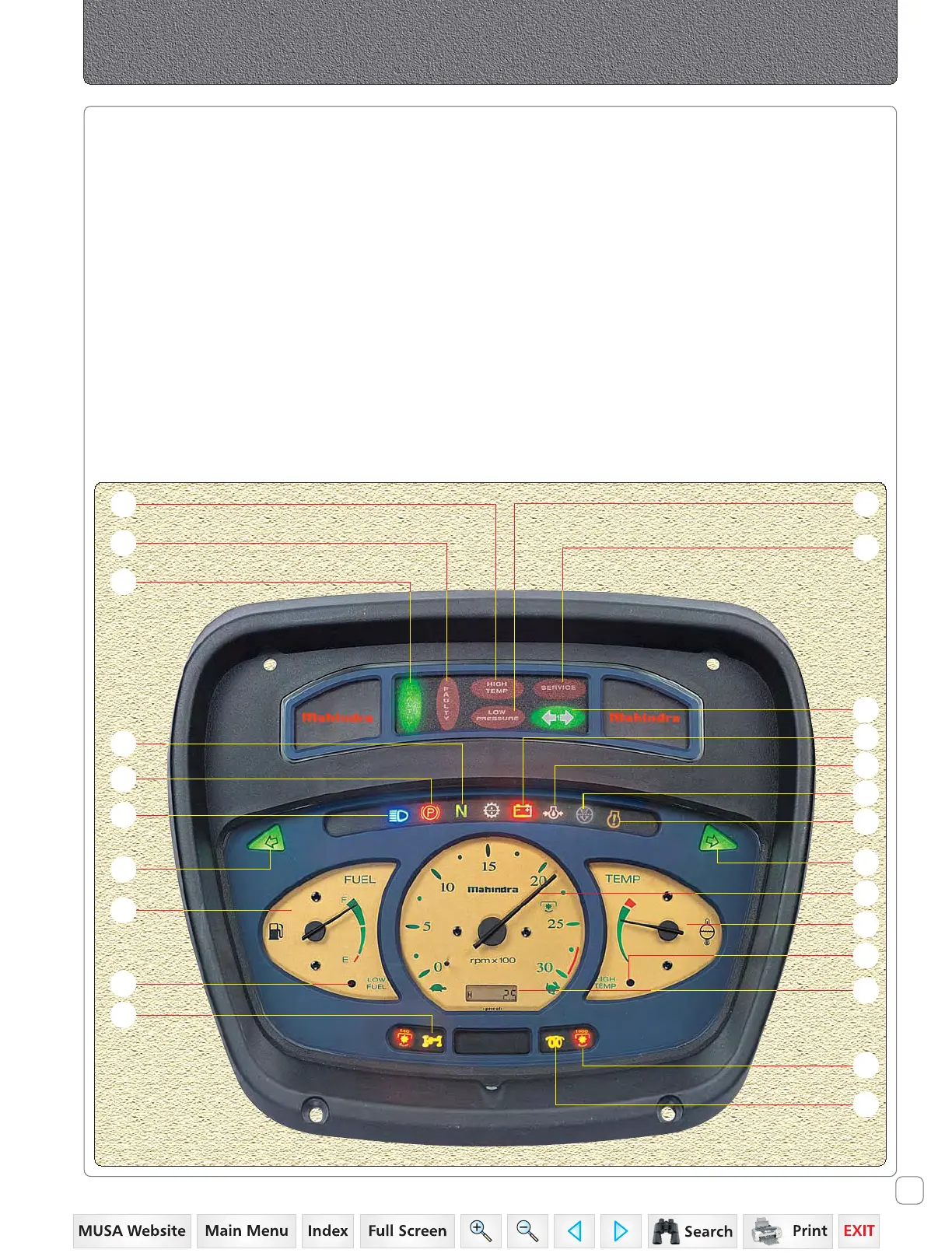

Indications on Instrument Cluster
Following indicators will glow under different circumstances.
When the Key is turned to its second position "ACC" following indicators shall glow for :
First 7 seconds When the Key is turned to its third
position "IG", following indicators shall glow,
4 to 6, 9, 10, 14 to 17, 21 to 25.
After 7 seconds following indicators shall glow,
4 - If Transmission and PTO are in neutral.
5 - If Park brake is engaged.
14, 15 &
24 - It shall continue to glow for 35 seconds.
While Cranking following indicators shall glow,
4
5 - If Park brake is engaged.
14 & 15
After Starting the Engine following indicators shall
glow,
4
5 - If Park brake is engaged.
