Mahindra 60 Series User Manual

77
60 Series 2WD/4WD, Model - 8560

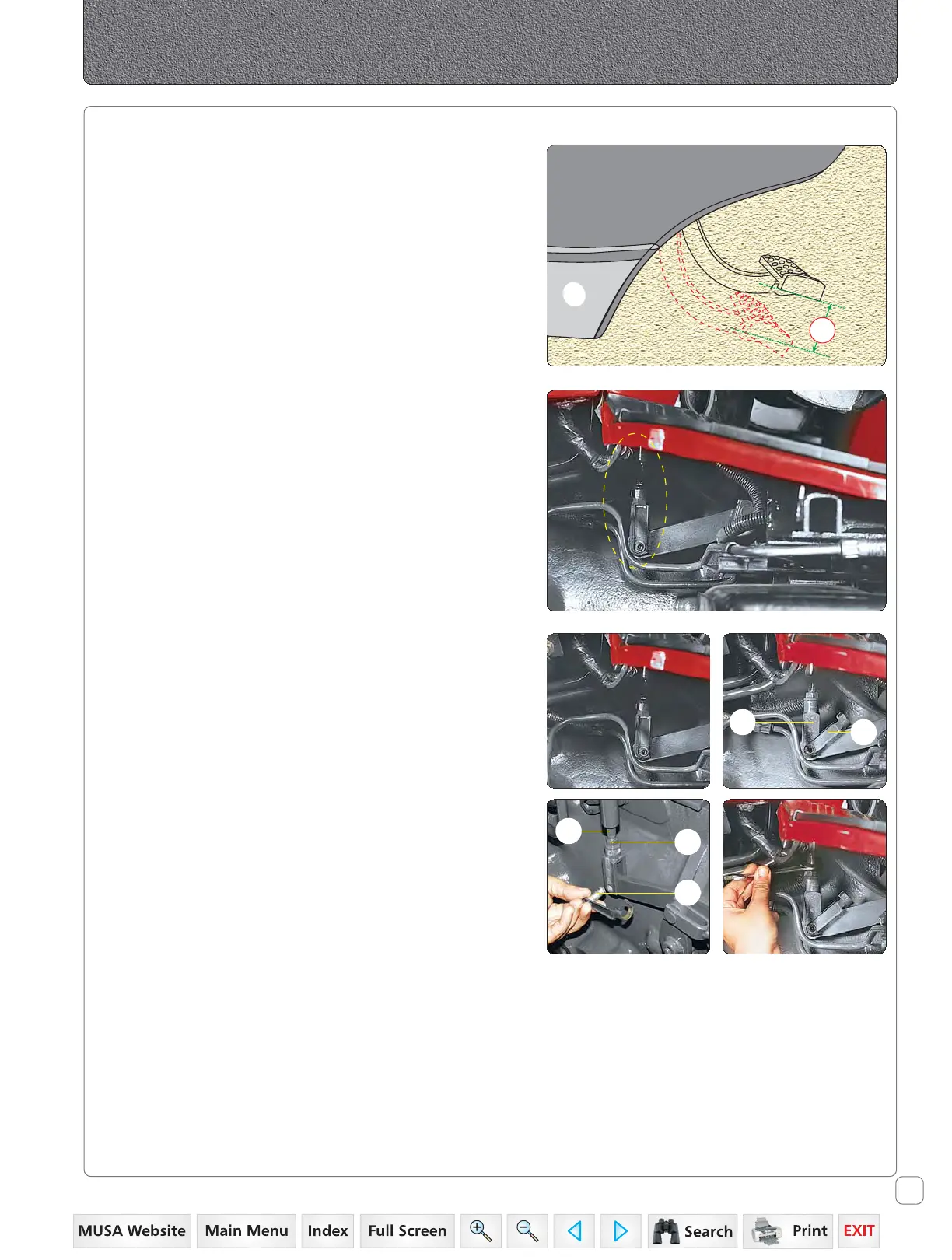

Clutch Pedal Free Play
Check and adjust clutch pedal free play
Measure free play of pedal stroke (A). Ensure free play is
within specified limits. If free play is not within specified
limits, adjust clutch linkage as shown below.
Free Play - Distance 1.6 to 1.8 inch (40 to 45 mm)
1. Unlock the lock pin (B).
2. Pull out Lockpin (B) out of yoke (C).
3. Loosen jam nut (D).
4. Lock the turn buckle (E) by spanner.
5. Turn the yoke anticlockwise (from eyesight view) to
decrease play and clockwise to increase play.
A
B
D
E
B
C

Mahindra 60 Series Specifications

General

Engine Power	60 HP
Cylinders	4
Steering	Power Steering
Fuel Type	Diesel
Transmission	8 Forward + 2 Reverse
Brakes	Oil Immersed
Gears	8 Forward + 2 Reverse
Engine Type	4-Stroke, Direct Injection
