60 Series 2WD/4WD, Model - 8560

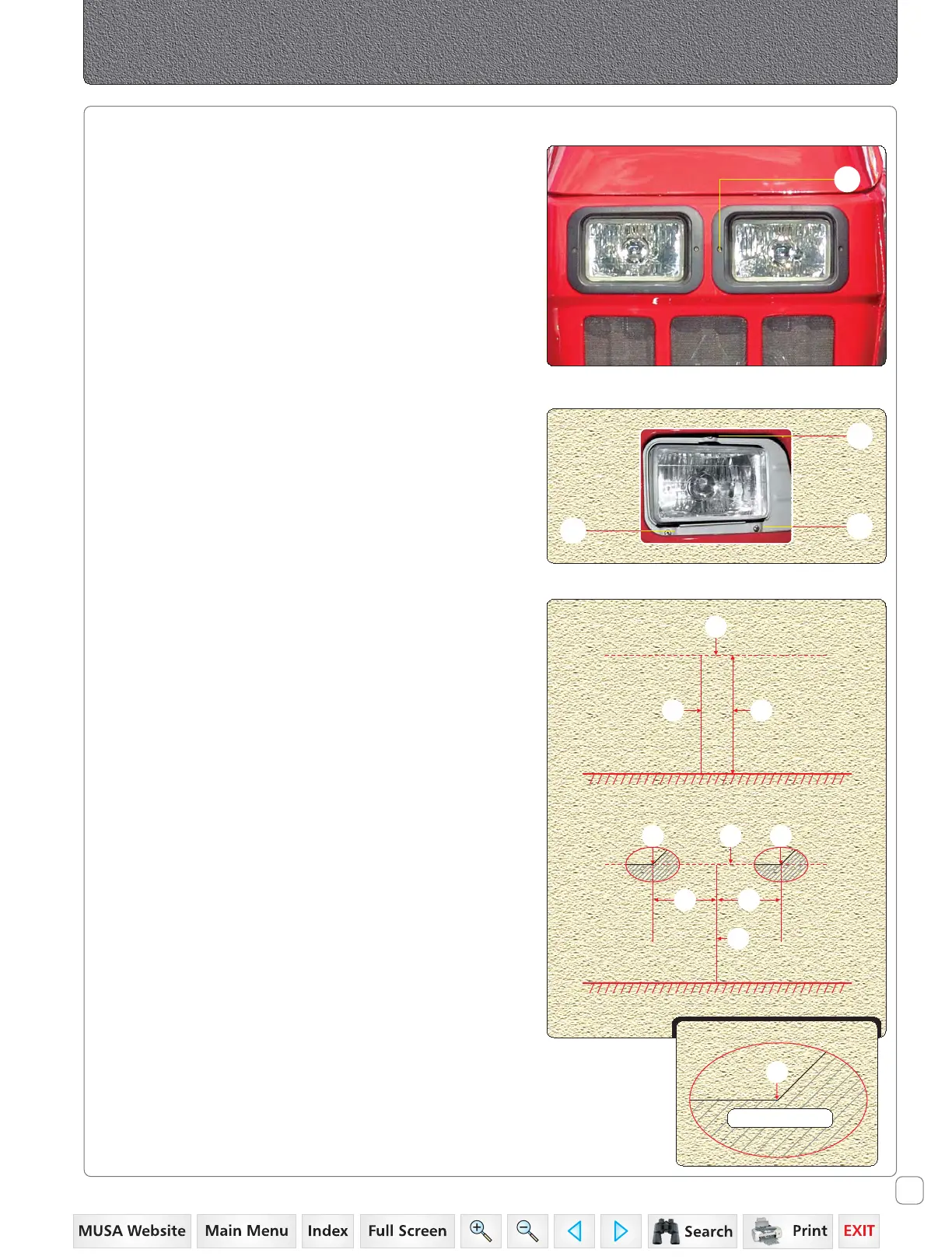

Head Lamp Adjustment
Head lamp adjustment
1. Remove Head Lamp cover by unscrewing screws (S).
2. Tighten screws (X), (Y) and (Z) fully.
3. Turning screw (X) in anticlockwise direction will raise
the Beam.
4. Turning screw (Y) in anticlockwise direction will lower
the Beam and move towards Right of the operator’s
view.
5. Turning screw (Z) in anticlockwise direction will lower
the Beam and move towards Left of the operator’s view.
Aiming Head Lamps
1. Park tractor on level ground, with lights 9.8 ft. (3 m)
from a wall.
2. Measure centre of headlamp to ground height (A). Place
a strip of masking tape (B) on the wall at the same
height.
3. Place a piece of tape, folded in the middle to make a
point, on the top front center of the Hood.
4. Using the Hood tape as a guide, sight across steering
wheel and Hood to locate tractor centerline. Mark
tractor centerline (C) on wall.
5. From tractor centerline (C), mark a point (D) 5 inch.
(127 mm) out in each direction.
6. Turn light switch to dim position.
7. Locate point (E) of bright light projected by each lamp
by adjusting screws (X), (Y) and (Z) as required. Cover
other lamps, if necessary.
E
Bright Light Area
C
DD
BBE
AC
B
Y
X
Z
S
