48
60 Series 2WD/4WD, Model - 8560

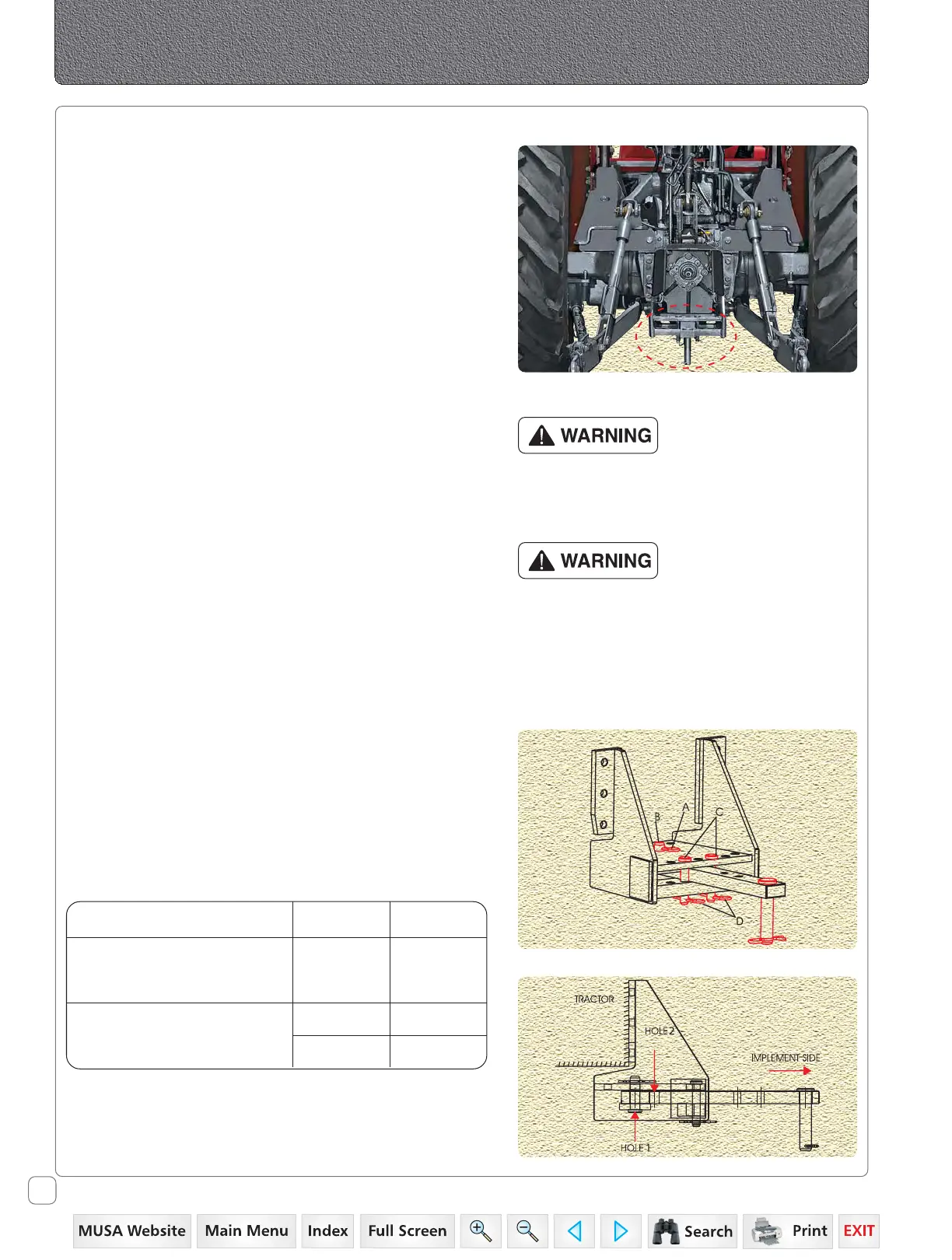

Swinging Drawbar
Tractor can be equipped with a drawbar for connecting to
pull behind implements. It can swing from side to side and
can be adjusted fore and aft. It can be set at various
positions.
The distance between end of PTO shaft and implement /
attachment pin hole can be set at three positions. In each
position the dimensions achieved are as per chart.
Certain heavy equipment such as a loaded single axle trailer
can place excessive strain on the drawbar. Strain is greatly
increased by rough road and high speed. Static vertical load
on drawbar should not exceed as stated in chart.
The drawbar can also be offset from the center on both
sides. See your implement operator’s manual for drawbar
positions.
The drawbar must be locked in center position when
1. Operating a drawbar pulled PTO driven implement.
2. Towing implements/Trailers on road or field.
Adjusting Drawbar length
1. Remove Nut (A).
2. Pull drawbar pin (B)
3. Slide drawbar to desired position.
4. Insert the drawbar pin (B) in hole of drawbar.
5. Lock the drawbar pin (B) in position with Nut (A)
Using swinging Drawbar
1. Remove “R” pin (D) of both pins (C).
2. Remove both pins (C).
3. Shift to next holes as desired.
4. Lock the “R” pins.
5. See your implement operator’s manual for drawbar
positions.
Drawbar Positions I II
Dist. of Implement
Pin Hole from 14 12
PTO shaft end (in)
Max. Vertical (kg) 800 1000
Load On Drawbar (lb) 1763 2204
Rear roll-over can result if pulling from wrong
location on tractor. Hitch only to drawbar.
Use three point hitch only with implements
designed for its use, not as a drawbar.
Try to balance the load primarily on the
implement wheels. Avoid overloading the
drawbar. Add Jerrycan weights for improved
stability. Engage the clutch smoothly, avoid
jerking and use brakes cautiously to avoid jack-
knifing.
