MP7500 Router Installation Manual Version 1.0

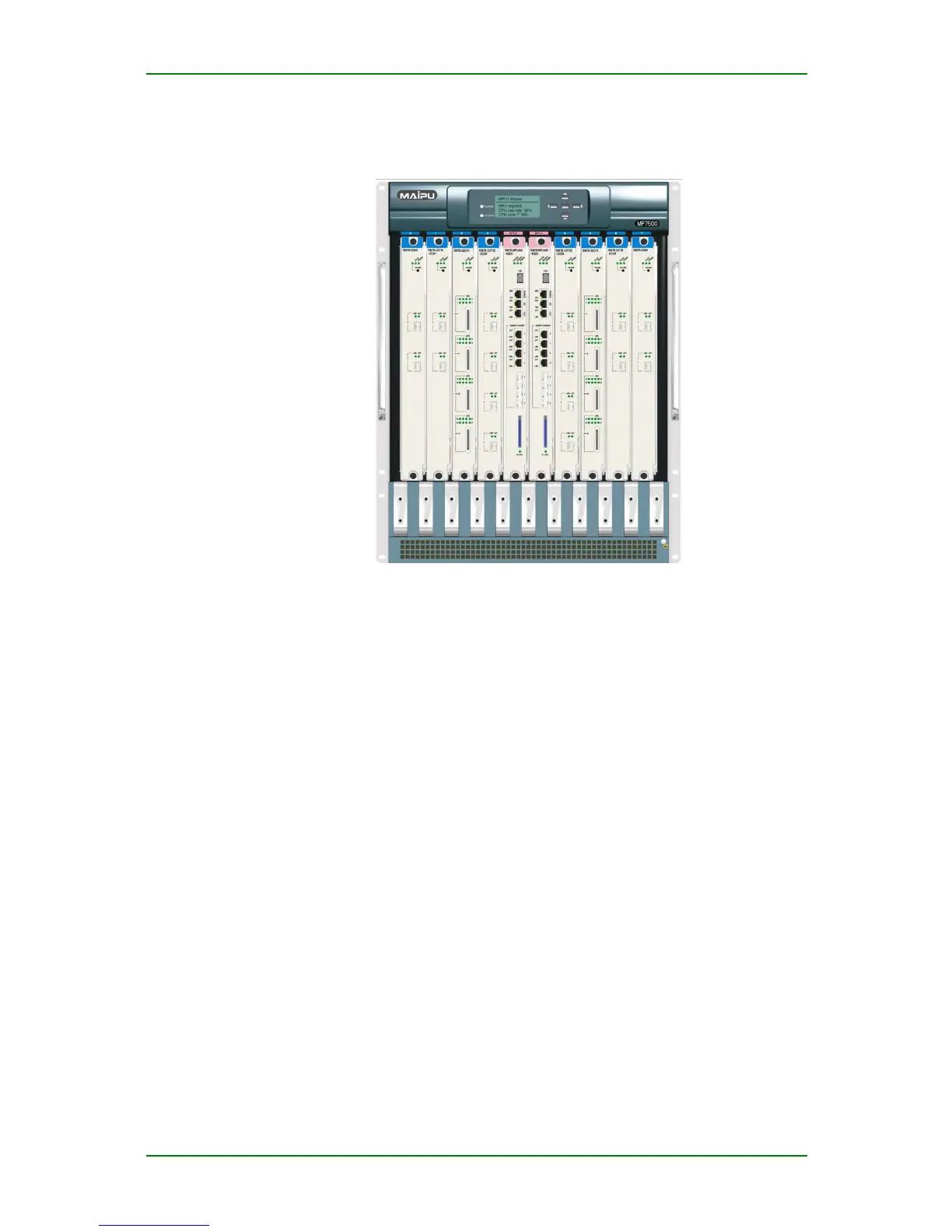

MP7500 Front Panel
MP7500 front panel comprises shelf, control slot and module slot. There
are system information unit, slots, lead groove and front air inlet from the
top to the bottom of the shelf.
Maipu Confidential & Proprietary Information Page 10 of 62
