MP7500 Router Installation Manual Version 1.0

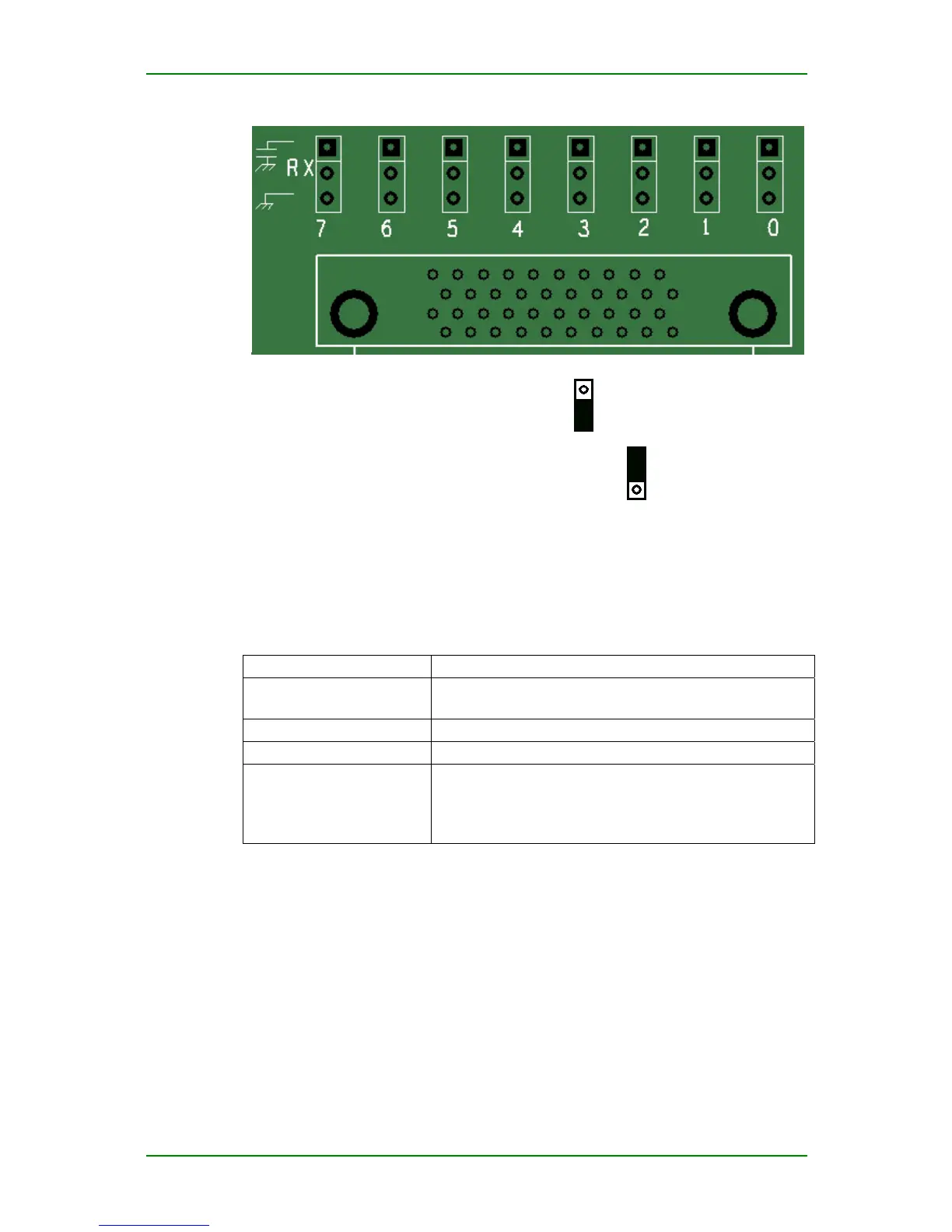

Jumping mode:
RxShield direct grounding
RxShield grounding through capacitance
RM7B-32E1H Interface Board Attributes
RM7B-32E1H interface attributes:
Attributes Description
Interface type DB40
DB40<——>8×BNC
Number of interfaces 32
Interface standard G.703
Supported protocol ·PPP
·HDLC
·frame-relay
·virtualethernet
1-port Channelized POS High-speed Interface Board (RM7B-1CPOS-OC3H)
The RM7B-1CPOS-OC3H high-speed interface board transmits up-
layers data packet (transmitting rate is 155.52Mbps) by using 63-port
E1 channel or port1-12 E1 combination channel of SDH network.
Maipu Confidential & Proprietary Information Page 34 of 62
