MP7500 Router Installation Manual Version 1.0

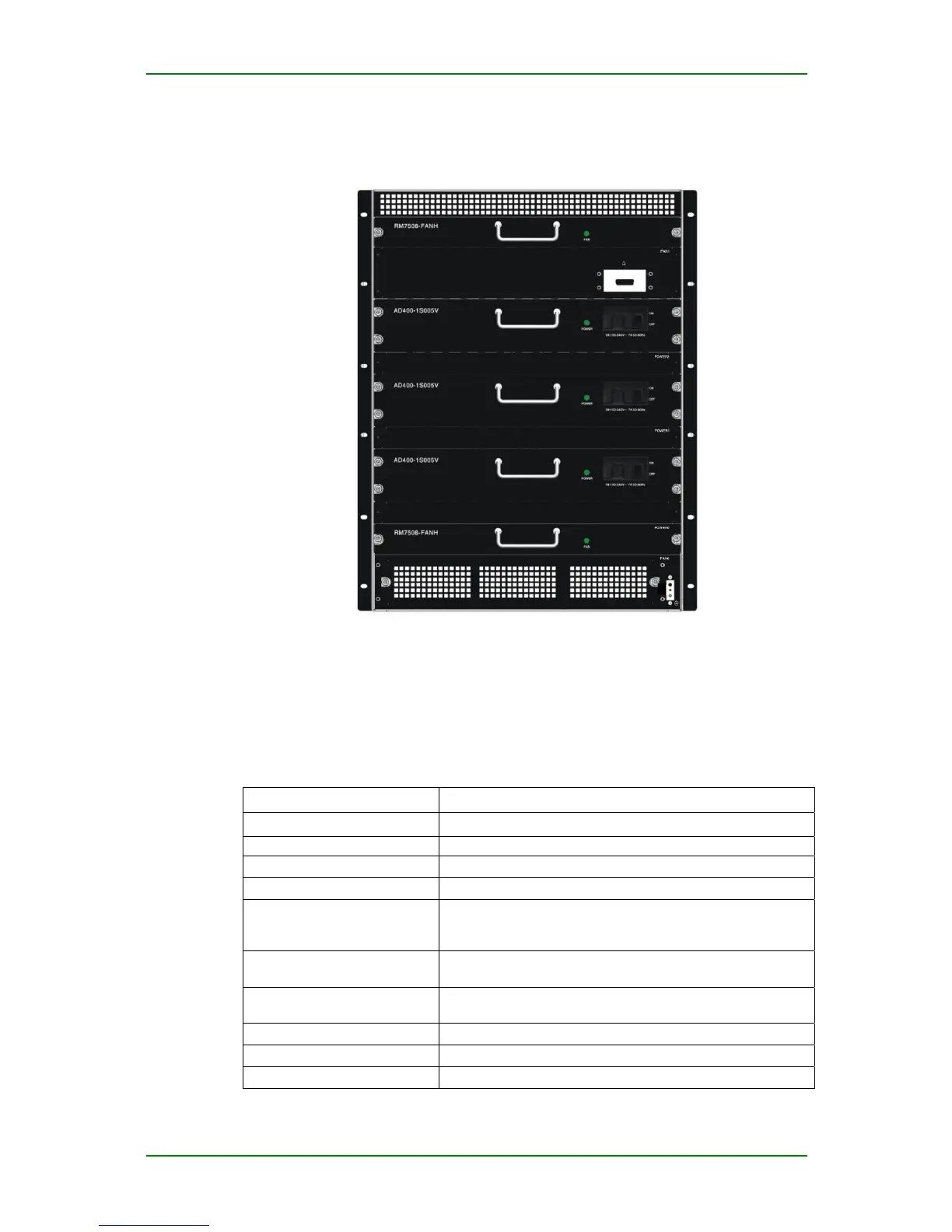

MP7500 Back Panel
MP7500 back panel provides two fan slots, three power slots, one DB15
alarm interface and electrostatic terminal.
MP7500 System
MP7500 basic configuration and working environment:
Item Description
Control board type RM7B-MPU408-4GEH
Processor High performance MIPS processor
Console port
1 (RJ45)
AUX port 1 standard AUX interface
Network management port
1 (RJ45), standard 100M Ethernet interface, only serves as
network management system and does not support service
data forwarding
Ethernet interface
Four 10/100/1000Mbps auto-sensing Ethernet interface
(RJ45＋SFP slot), and supports electric and optical interfaces
FLASH
64 M by default, and can be extended to 1Gbytes through CF
card and 10 1Gbytes through USB interface
Memory Two memory slots, 512M-1G DDR2 (by default)
Control slot Two
Module slot Eight
