MP7500 Router Installation Manual Version 1.0

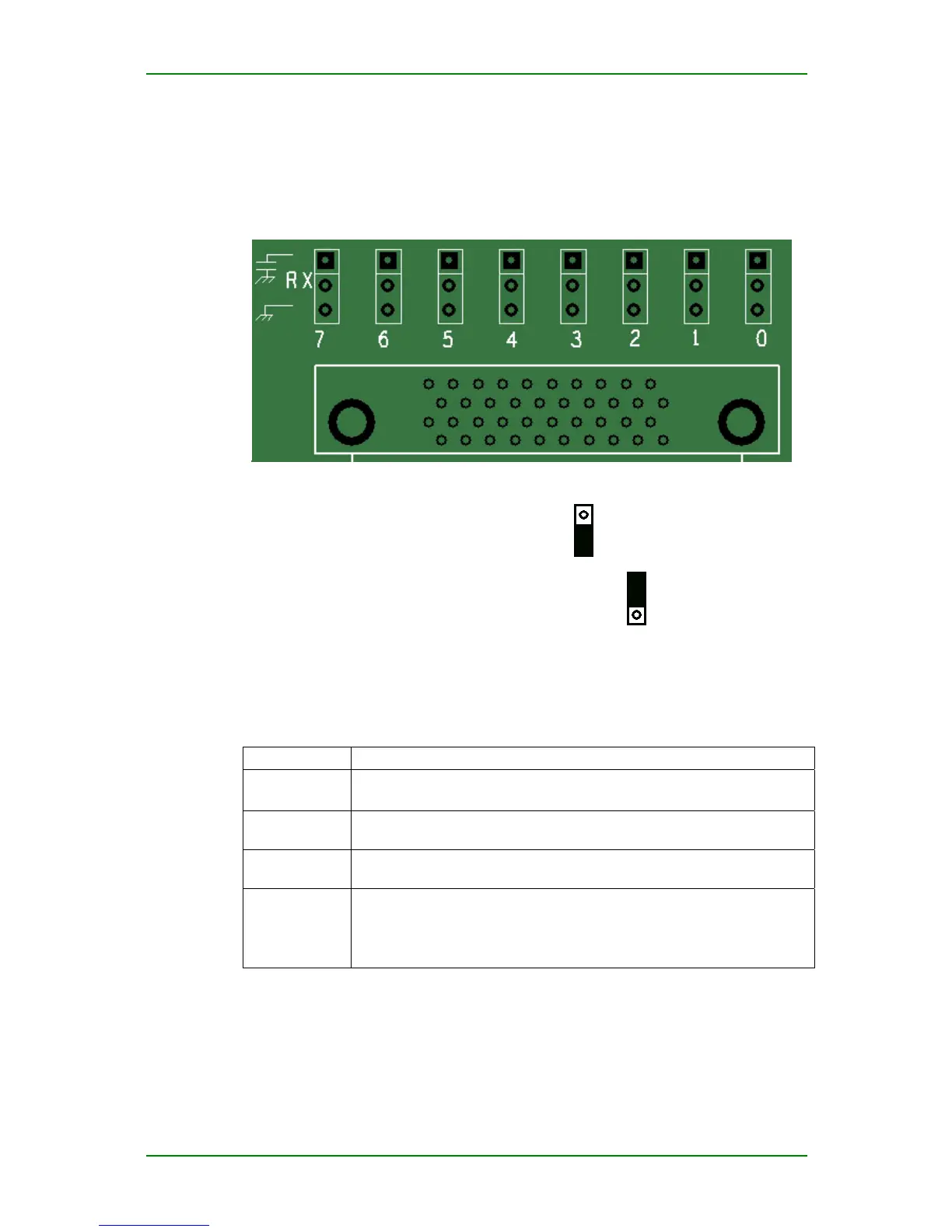

RM7B-32CE1H Jumper Setting
RM7B-32CE1H interface board provides internal jumper setting for
interface grounding. The jumpers are located after DB40 pin connector
and each port corresponds with a jumper.
Jumping mode:
RxShield direct grounding
RxShield grounding through capacitance
RM7B-32CE1H Interface Board Attributes
RM7B-32CE1H interface attributes:
Attributes Description
Interface
type
DB40
DB40<——> 8×BNC
Number of
interfaces
32
Interface
standard
G.703
Supported
protocol
·PPP
·HDLC
·frame-relay
·virtualethernet
