MP7500 Router Installation Manual Version 1.0
RM7B-4ATM-OC3H Interface Module
Attributes
RM7B-4ATM-OC3H interface attributes:
Attribute Description
Interface type Standard dual LC optical interface
Number of
interfaces
4
Interface
standards
SFP MSA
Supported
protocols
ATM
AAL5
IP
PPP
ATM-FR
2-port Gigabit Ethernet Interface Board (RM7B-2GEH)
RM7B-2GEH interface board provides two SFP optical interfaces. The
optical interface can only work in 1000M rate. The transmission distance
varies with the selected optical module. RM7B-2GEH module interface
supports full-duplex and half-duplex working modes. Full-duplex is the
common working mode.
RM7B-2GEH Interface Board Panel and
Indicators

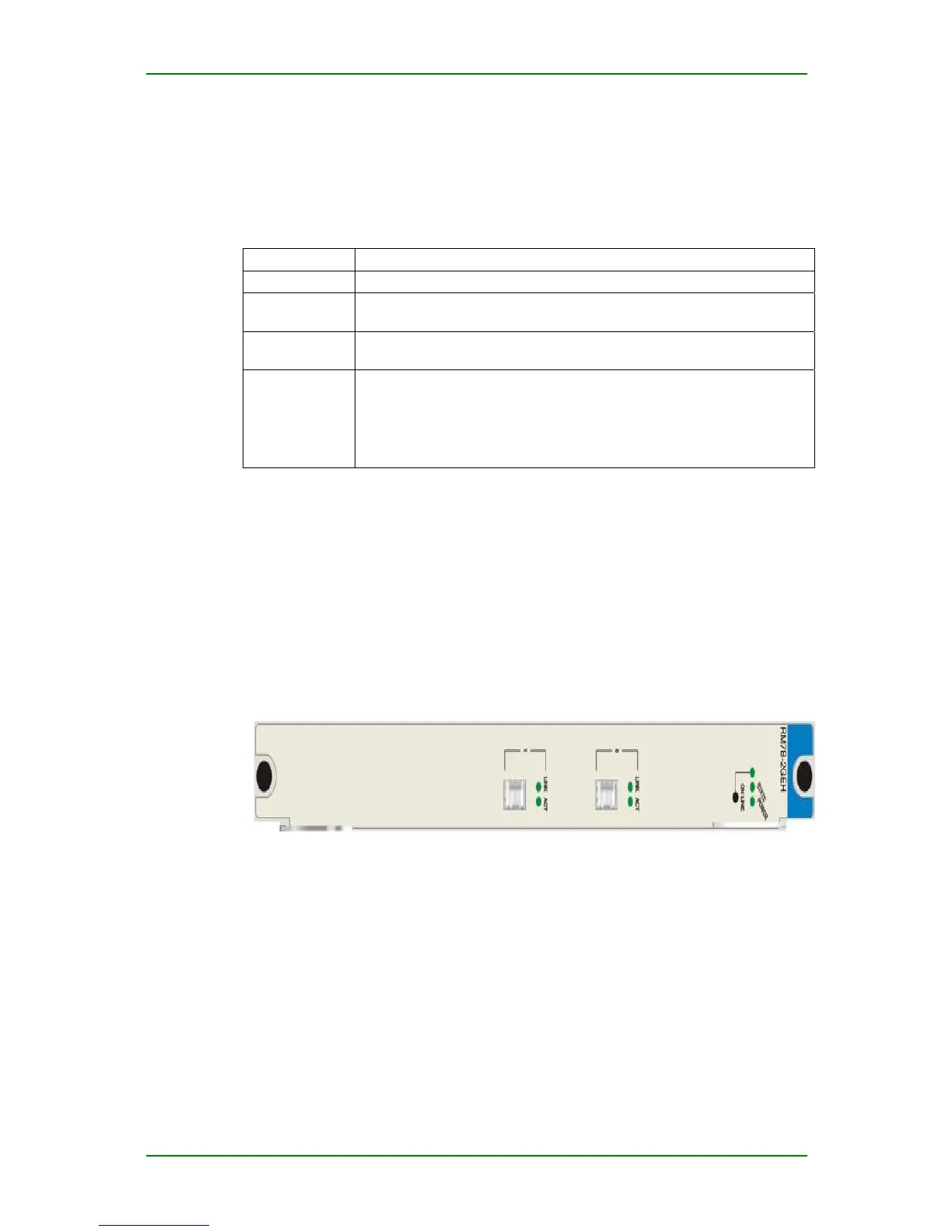

RM7B-2GEH interface board panel:
