MP7500 Router Installation Manual Version 1.0

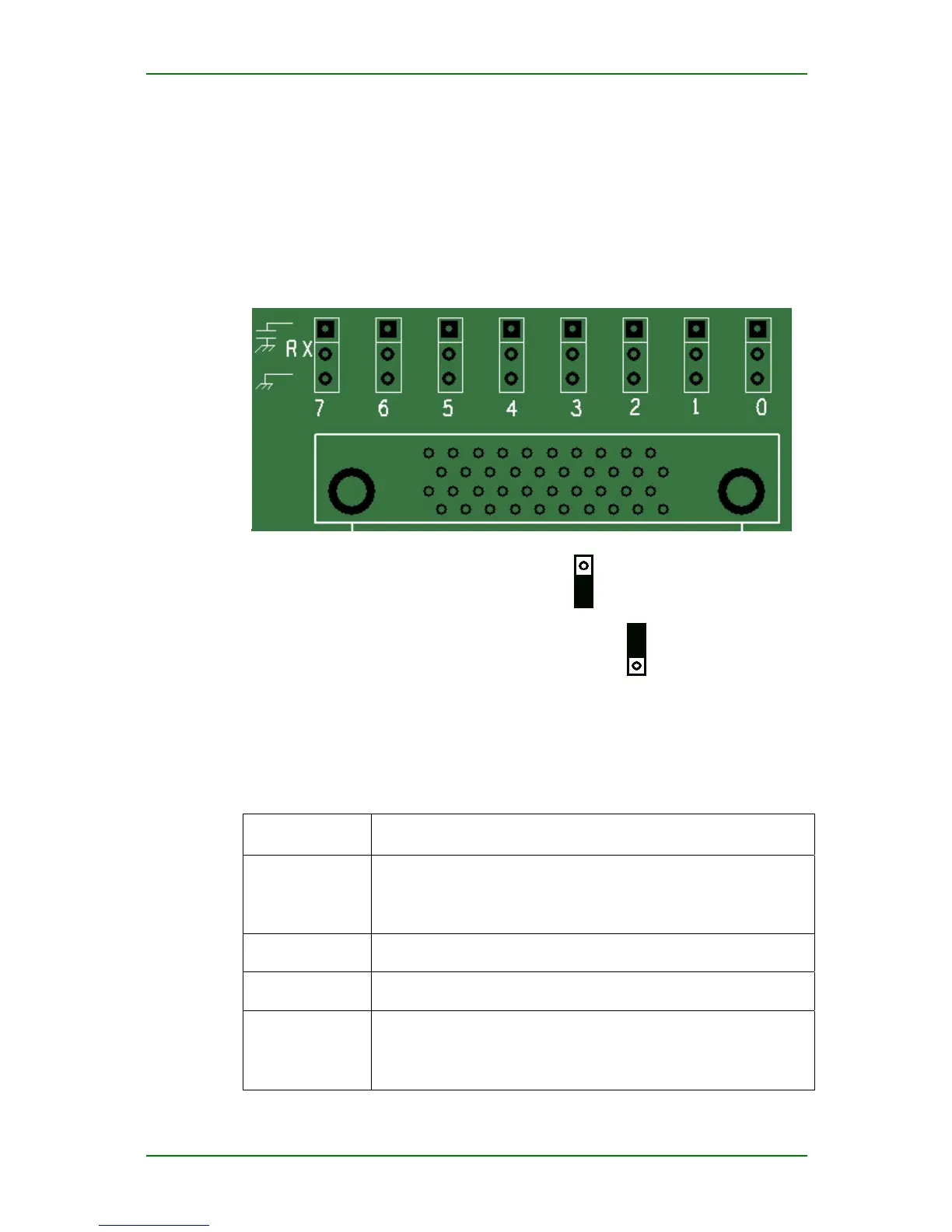

RM7B-8CE1H Jumper Setting
RM7B-8CE1H interface board provides internal jumper setting for interface
grounding. The jumpers are located after DB40 pin connector and each
port corresponds with a jumper.
Jumping mode:
RxShield direct grounding
RxShield grounding through capacitance
RM7B-8CE1H Interface Board Attributes
RM7B-8CE1H interface attributes:
Attributes
Description
Interface type
DB40
DB40<——> 8×BNC
Number of
interfaces
8
Interface
standard
G.703
Supported
protocol
·PPP
·HDLC
·frame-relay
·virtualethernet
Maipu Confidential & Proprietary Information Page 24 of 62
