MP7500 Router Installation Manual Version 1.0

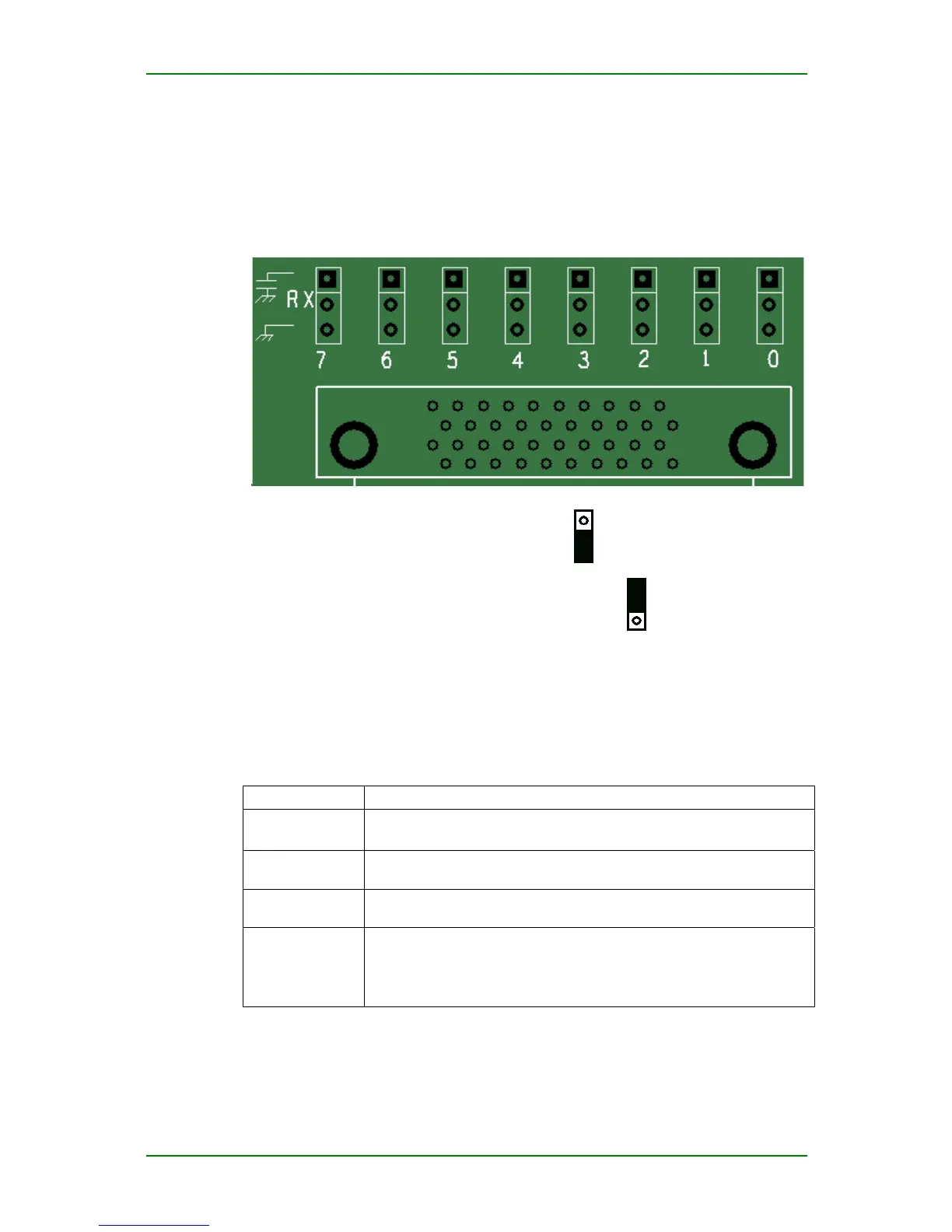

RM7B-16E1H Jumper Setting
RM7B-16E1H provides internal jumper setting for interface grounding. The
jumpers are located after DB40 pin connector and each port corresponds
with a jumper.
Jumping mode:
RxShield direct grounding
RxShield grounding through capacitance
RM7B-16E1H Interface Board Attributes
16E1H interface attributes:
Attributes Description
Interface type DB40
DB40<——>8×BNC
Number of
interfaces
16
Interface
standard
G.703
Supported
protocol
PPP
HDLC
Frame-relay
Virtualethernet
Maipu Confidential & Proprietary Information Page 32 of 62
