MP7500 Router Installation Manual Version 1.0

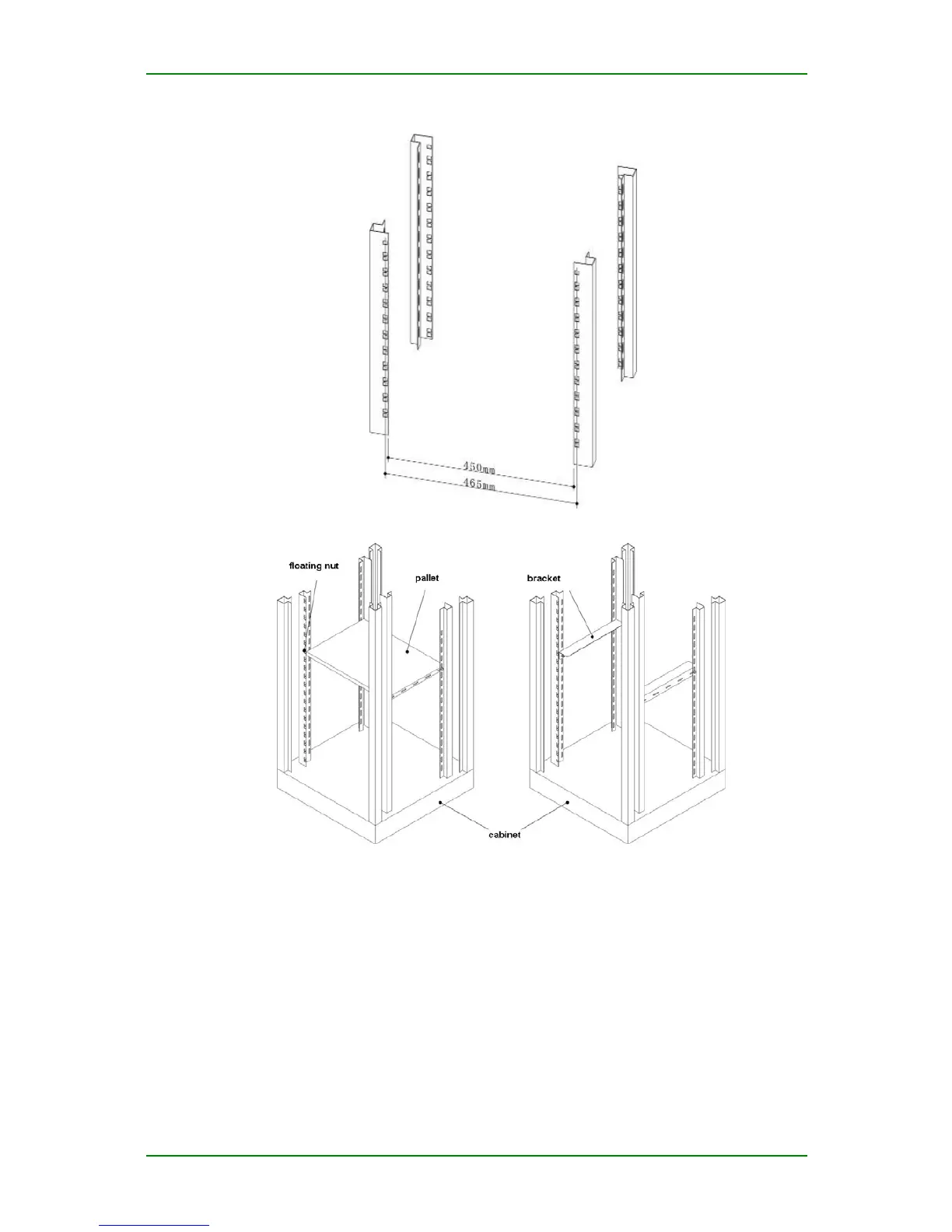

Check whether the floating nut for fixing the device is installed in the
square hole of the cabinet column. If not, insert the floating nut to the
square hole according to the position of the pallet or tray.
It is required that one device is placed on a pallet or a bracket. It is not
recommended to overlap multiple devices.
Maipu Confidential & Proprietary Information Page 48 of 62
