MP7500 Router Installation Manual Version 1.0

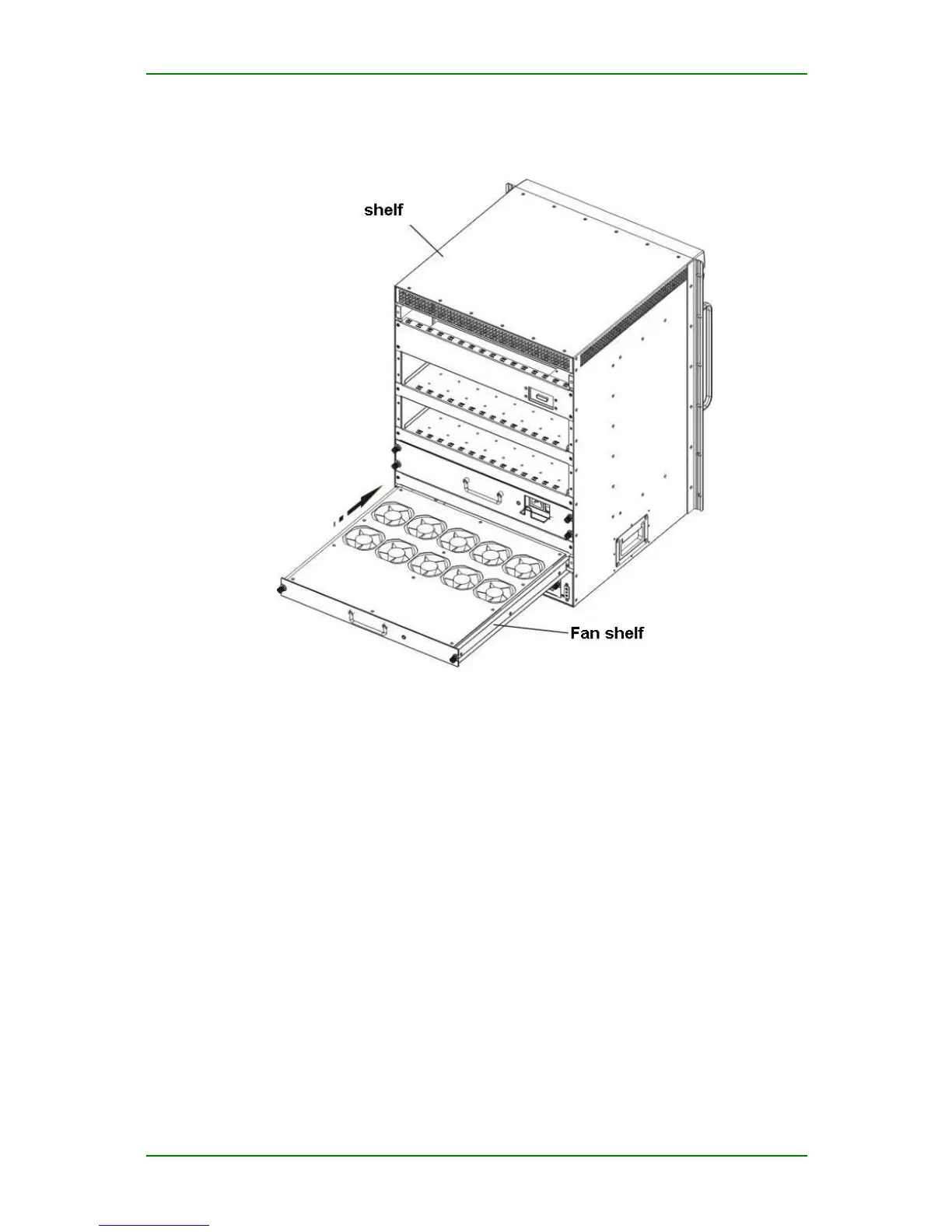

Install the fan shelf as follows:
• Step 1: Before installing fan shelf, ensure that the shelf is installed
in the cabinet correctly and check whether the fan shelf is in good
condition.
• Step 2: Wear gloves, use two hands to hold the fan shelf, and then
insert the fan shelf into the corresponding slot from the shelf back.
• Step 3: Use two hands to push the fan shelf into the shelf stably
and make the fan shelf panel close to the surface of the fixed
column at the back of the shelf.
• Step 4: Circumrotate the screw on the fan shelf clockwise to fix the
fan shelf in the shelf.
• Step 5: Repeat step 1-4 to install the other fan shelf in the shelf.
Maipu Confidential & Proprietary Information Page 51 of 62
