Major tech MT775 User Manual

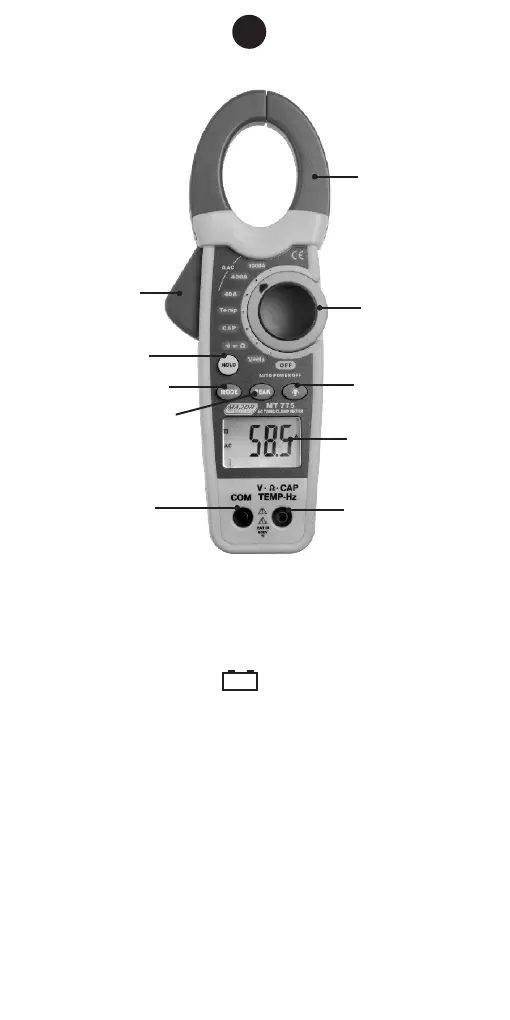

4. INSTRUMENT LAYOUT
Transformer
Jaws
Function
Switch
Jaw Trigger
Data Hold
Switch
Mode Switch
Display with
Bargraph
COM
Terminal
Volt, Resistance,
Frequency,
Temperature
Terminal
Backlight
Switch
Peak Hold
Selector Switch
for Volts and
Current
Clamp Size
Diode Test
Continuity Check
Low Battery Indication
Overrange Indication
Measurements Rate
Input Impedance
Display
AC Current
AC Voltage Bandwidth
Operating Temperature
Storage Temperature
Relative Humidity
Over Voltage
Battery
Auto Power Off
Dimensions
Weight
30mm Opening Approx
Test Current of 0.3mA typical;
Open circuit voltage 1.5V DC
Threshold <35Ω; Test current <1mA
“ “ is displayed
“OL” is displayed
2 per second, nominal
10MΩ (VDC and VAC)
4000 count LCD
50/60Hz (AAC)
50/60Hz (VAC)
-10ºC to 50ºC (-14ºF to 122ºF)
-30ºC to 60ºC (-14ºF to 140ºF)
Up to 85%
Category lll 600V
One PP3 “9V” Battery
Approx 20 minutes
229 x 80 x 49mm
303g
5. SPECIFICATIONS
5
-
+

Major tech MT775 Specifications

General

Brand	Major tech
Model	MT775
Category	Measuring Instruments
Language	English
