4. Operation
NOTES: Read and understand all Warning and Caution statements in this
operation manual prior to using this meter.
NOTES: Set the function select switch to the OFF position when the meter
is not in use.
4.1. AC/DC Current Measurements
WARNING: Ensure that the test leads are disconnected from the meter
before making current clamp measurements.
1. Set the Function switch to the 1000A, 600A range, If the approx.
range of the measurement is not known, select the highest range then
move to the lower ranges if necessary.
2. Use the MODE button to select AC or DC.
3. Press the REL button to zero the meter display.
4. Press the trigger to open jaw. Fully enclose only one conductor. For
optimum results, center the conductor in the jaw.
5. The clamp meter LCD will display the reading.

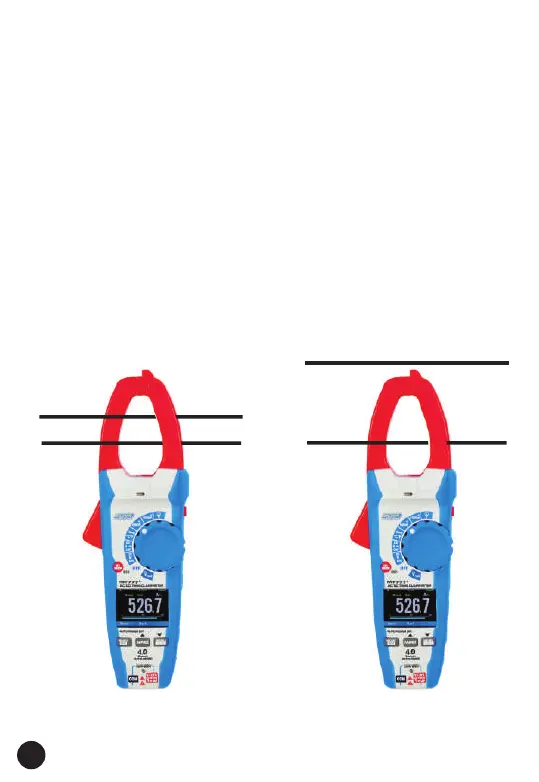

CorrectIncorrect
