CHALLENGERSERIES10‐60KVA  INSTALLATION

AG–SD‐35Rev.No:1Rev.Date:25.09.2013PublicationNo:2 37



THETABLEOFCHALLENGERSERIESEXTERNALBATTERYCONFIGURATION
UPSRating(KVA) 20 30
TotalnumberofBatt. 38 42 46 50 38 42 46 50
I_char_max@V_bat_max(A) 7,6 6,9 6,3 5,8 11,4 10,4 9,5 8,7
I_bat_max@V_cut_off(A) 45 41 37 34 67 61 56 51
Recommendedfuseforexternalcabinet
(A)
50 50 50 40 80 80 63
63

UPSRating(KVA) 40 60
TotalnumberofBatt. 48 50 50
I_char_max@V_bat_max(A) 12,1 11,6 17.4
I_bat_max@V_cut_off(A) 71 68 102
Recommendedfuseforexternalcabinet(A) 80 80 125


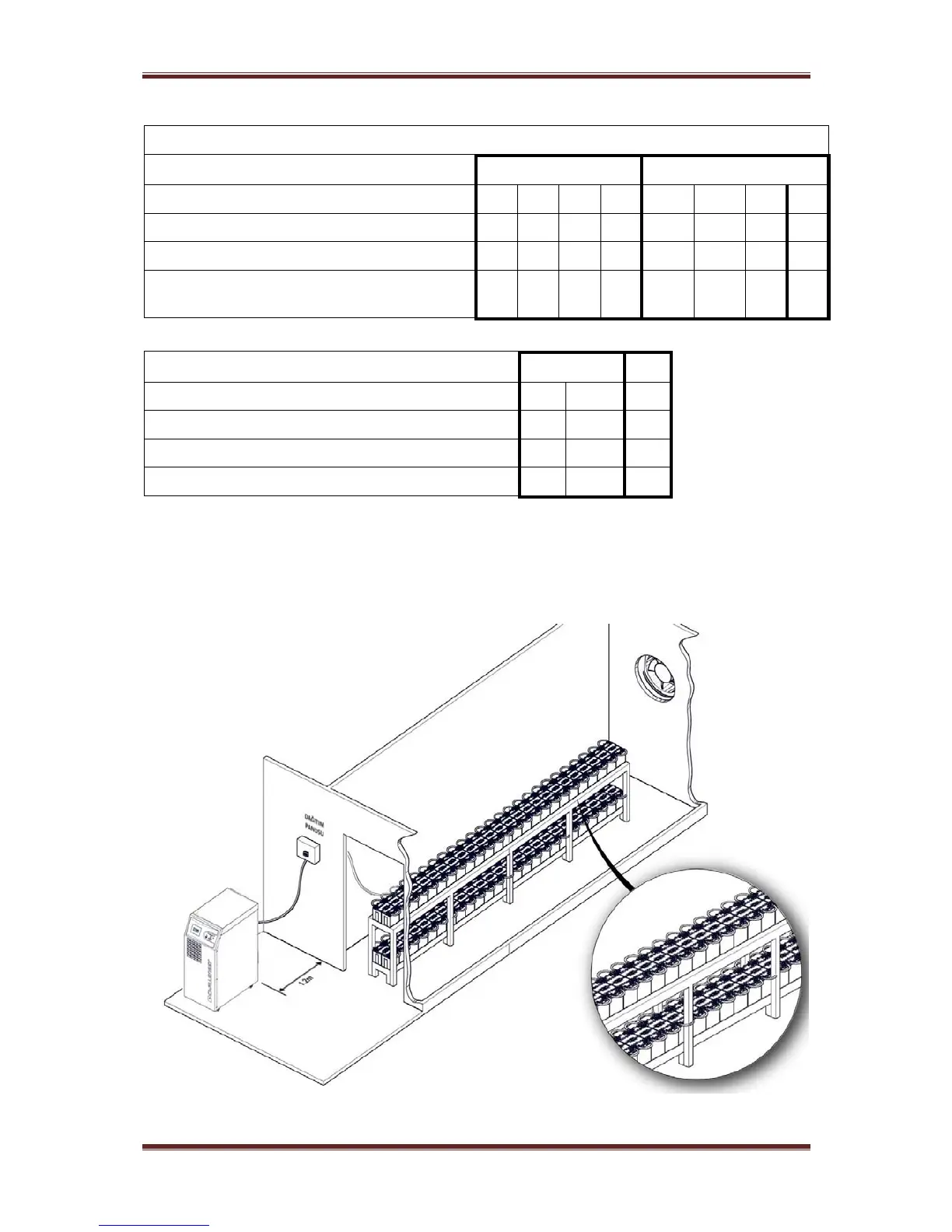

Externalbatterycabinetandbatteryroomapplicationsaregiven below as an example. The
applicationformmayvaryaccordingtothecustomer.



