CHALLENGERSERIES10‐60KVA  INSTALLATION

AG–SD‐35Rev.No:1Rev.Date:25.09.2013PublicationNo:2 41



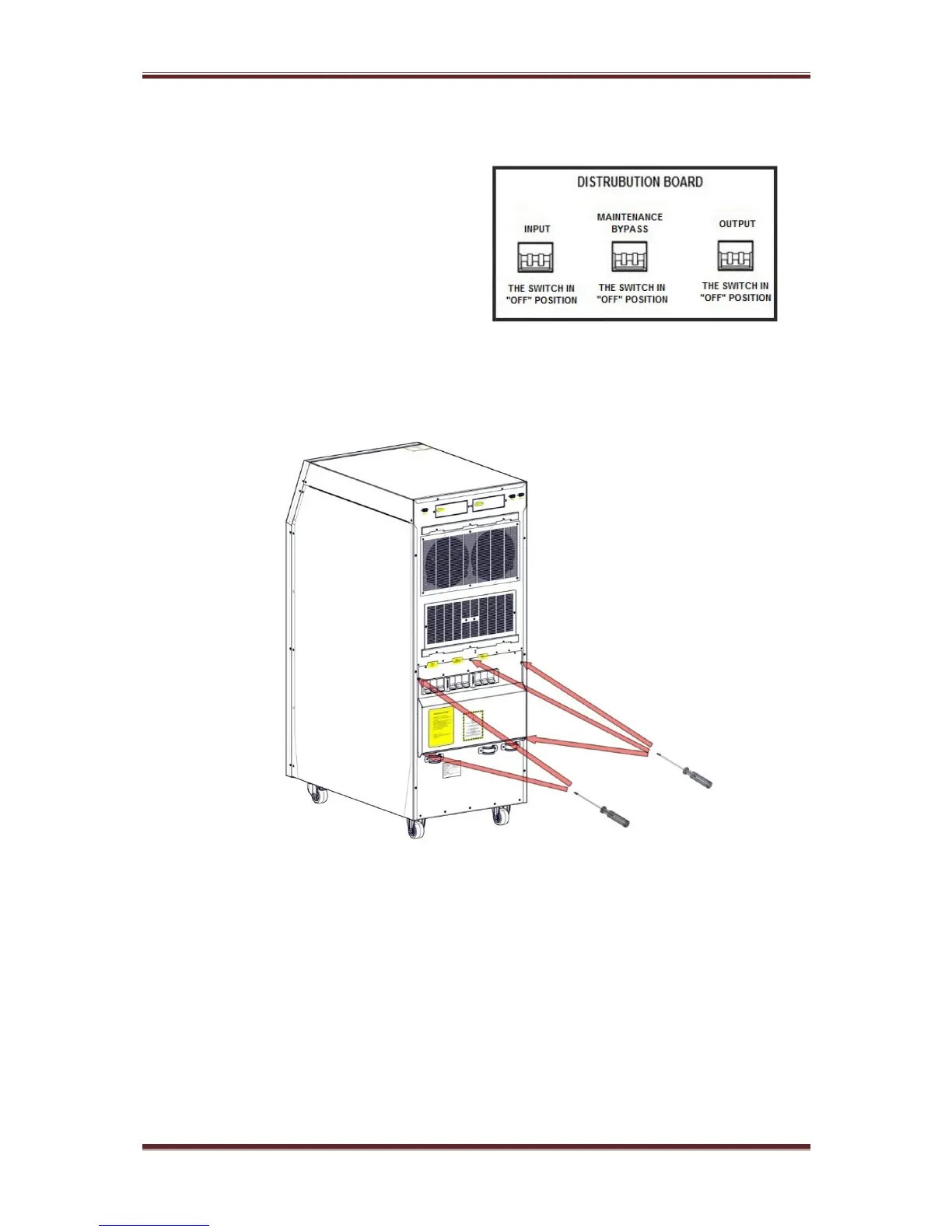

Followthestepsbelowtoelectricalconnections:


1. Makesurethatthenetworkand
loadsareisolatedthroughcablesby
turning off the all breakers on the
distrubutionboard.



1. Unscrewandremovethemetalboardontherearsideofthedevice.














CH1060EN16R0
CH1060EN15R0
