CHALLENGERSERIES10‐60KVA  INSTALLATION

AG–SD‐35Rev.No:1Rev.Date:25.09.2013PublicationNo:2 43



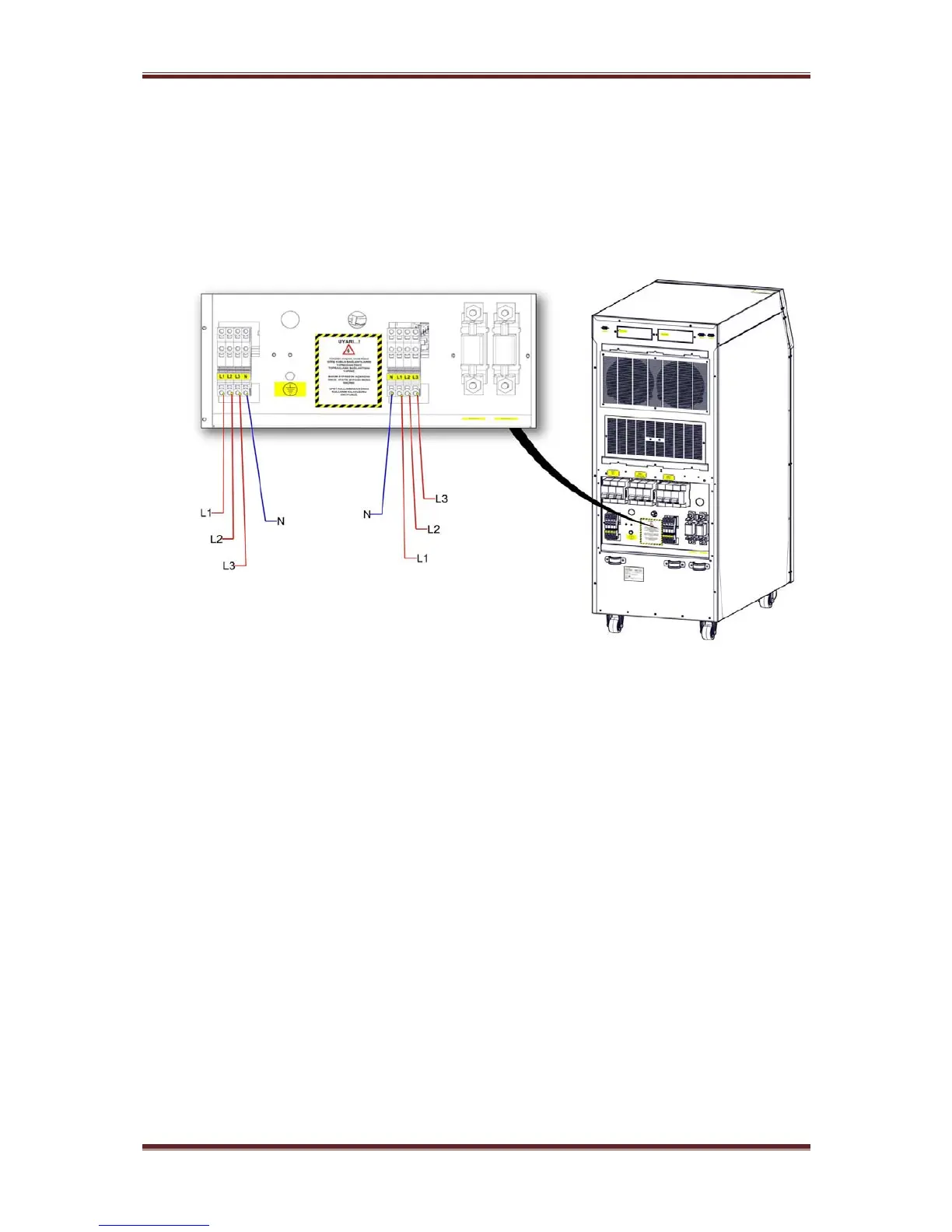

4. Connecttheinputcables.
 RtoINPUTL1,
 StoINPUTL2,
 TtoINPUTL3,
 N(Neutral)toINPUTN.












6.Checkthephasesequence.
7.Repeatsteps5‐6foroutputcables.
8.Replacetherearboardandtightenthescrews

Usethecableclipstostabilizethecableswhentheconnectionsaredone.
WARNING:MakesurethattheloadsareisolatedfromtheUPSoutputiftheyarenotready
tobeconnected.
WARNING: Make sure that the cables are connected properly before UPS isstarted.
Additionaly,checkifthereisgalvanicisolationtransformersatinputofUPSandconsider
thelocaldirections.

WARNING:CheckthegroundingbeforestartingtheUPS.Wrongworksorgroundingon
UPSorotherdevicesofinstallatonmaybehazardous.Wrongworksandgroundingmay
damageUPSandanothersystemontheinstallation.

CH1060EN19R0
