MAKELSAN LEVELUPS Series - Battery Configuration Guide

LEVELUPS SERİSİ 10-20 KVA OPERATION
AG-SD-83 / Publication Date: 15.09.2014 / Rev. No: 0 / Rev. Date:
3.1.3.2 Internal Battery Configuration
10-20 kVA UPS can be configured by 62 pcs 4,5 Ah, 7 Ah or 9Ah standard as following.
LEVELUPS SERIES INTERNAL BATTERY USAGE TABLE
UPS Power(KVA)
10
15
20
Batteries in series
31
31
31
Number of Paral. arms
2
2
2
Total Number of Batteries
62
62
62
I_bat_max @ V_bat_cut off. (A)
16,3
24,6
32,7
Recommended Internal Fuse (A)
20
32
40
Recommended Back-Cover Fuse (A)
20
32
40
* Table shows recommended battery configurations.
* Fast and semi-conductor protection type fuses are used for batteries.

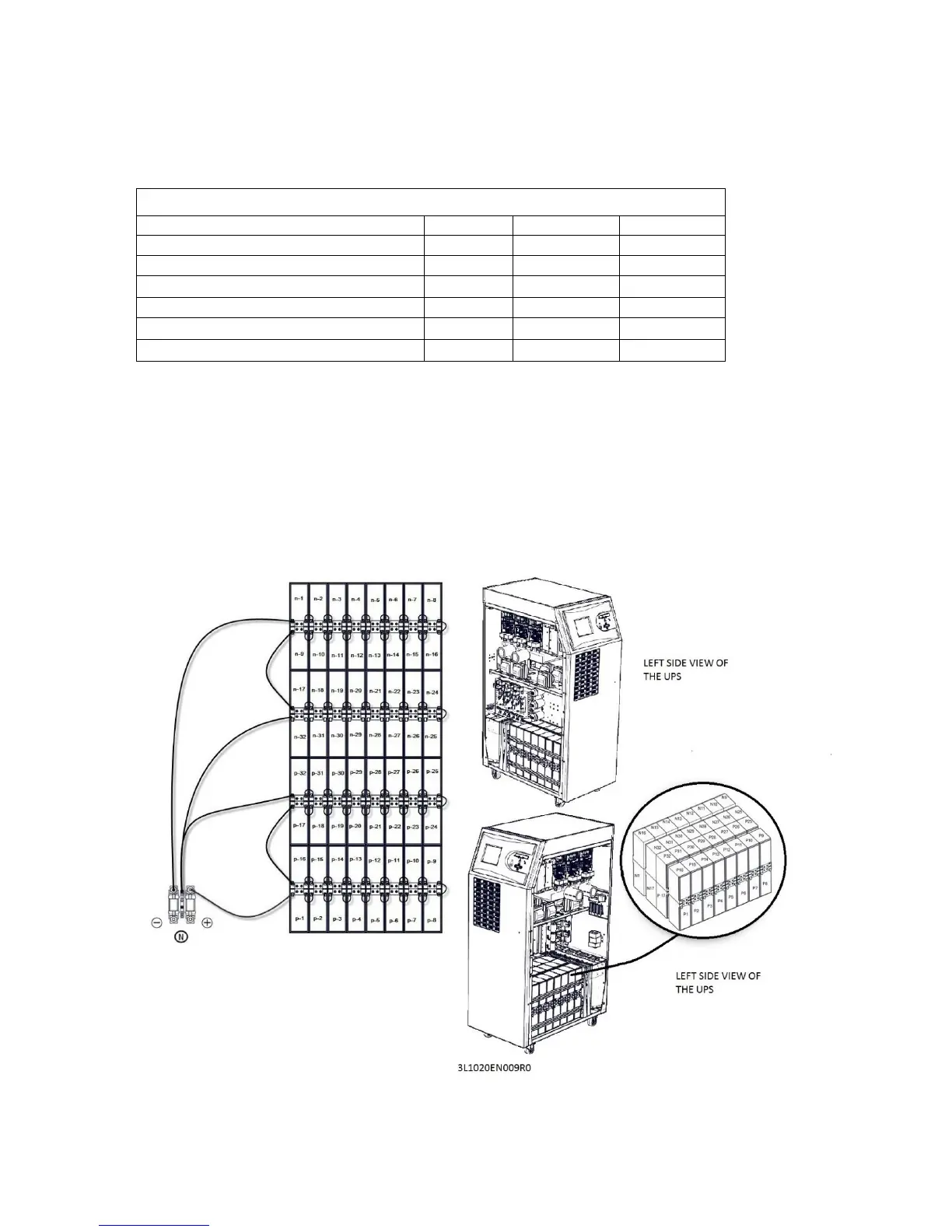

The 7/9 Ah and 4.5 Ah batteries positioning can be seen at the following table;
