LEVELUPS SERİSİ 10-20 KVA OPERATION
AG-SD-83 / Publication Date: 15.09.2014 / Rev. No: 0 / Rev. Date:
4.1.2 First start-up
WARNING: Wait for at least 5 seconds between each step.
1. Turn all circuit breakers OFF.
2. Push the soft start button (SW1) at least for 10 sec.

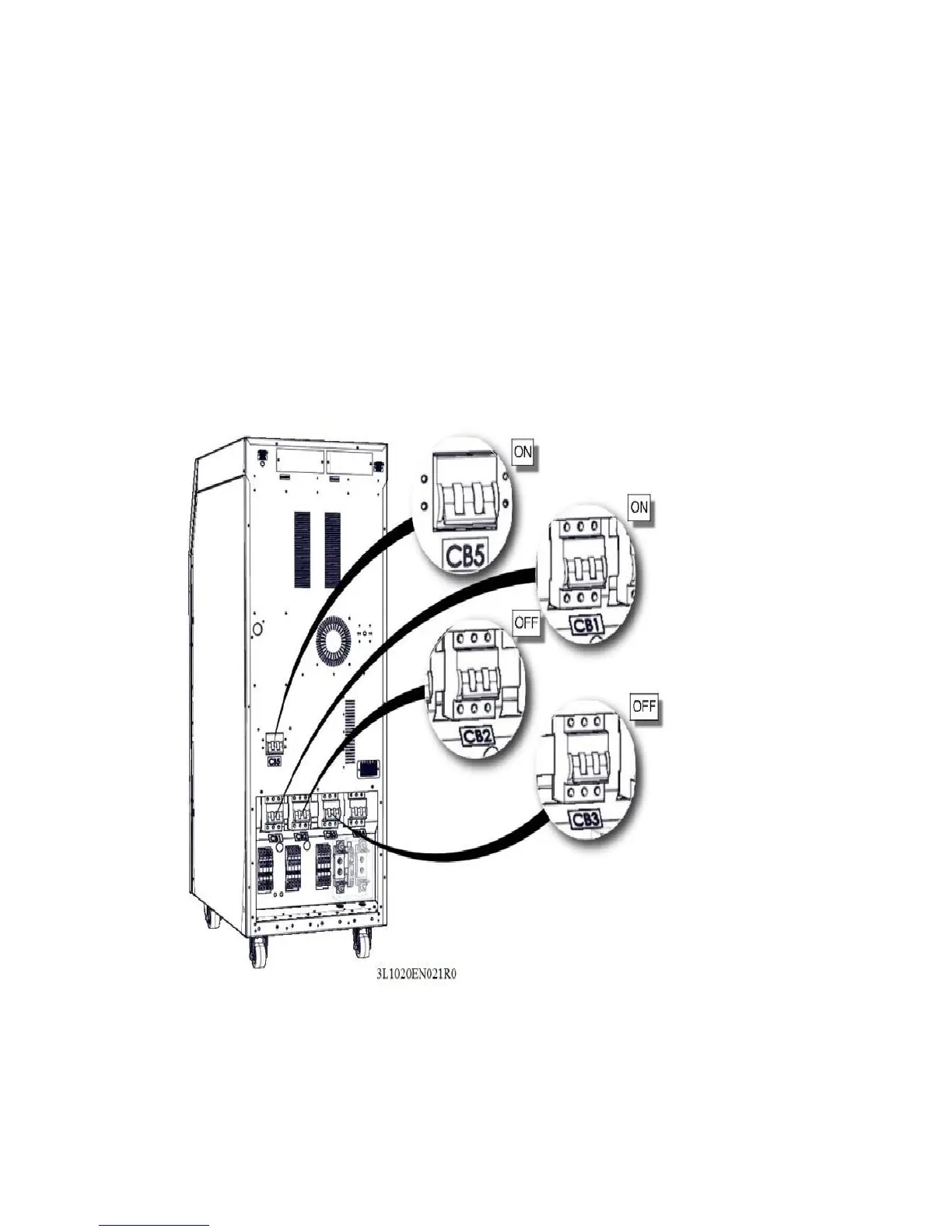

3. Turn input circuit breaker (CB1) ON. If there is an external bypass input, put the external
bypass switch (CB5) to position closed circuit (ON)
To Next Page
