LEVELUPS SERİSİ 10-20 KVA OPERATION
AG-SD-83 / Publication Date: 15.09.2014 / Rev. No: 0 / Rev. Date:
Avoid short circuit in the batteries. Short circuited batteries are hazardous
to human health and environment!
Battery terminal may rise up to 450 Vdc.
6. Replace the metal rear cover.

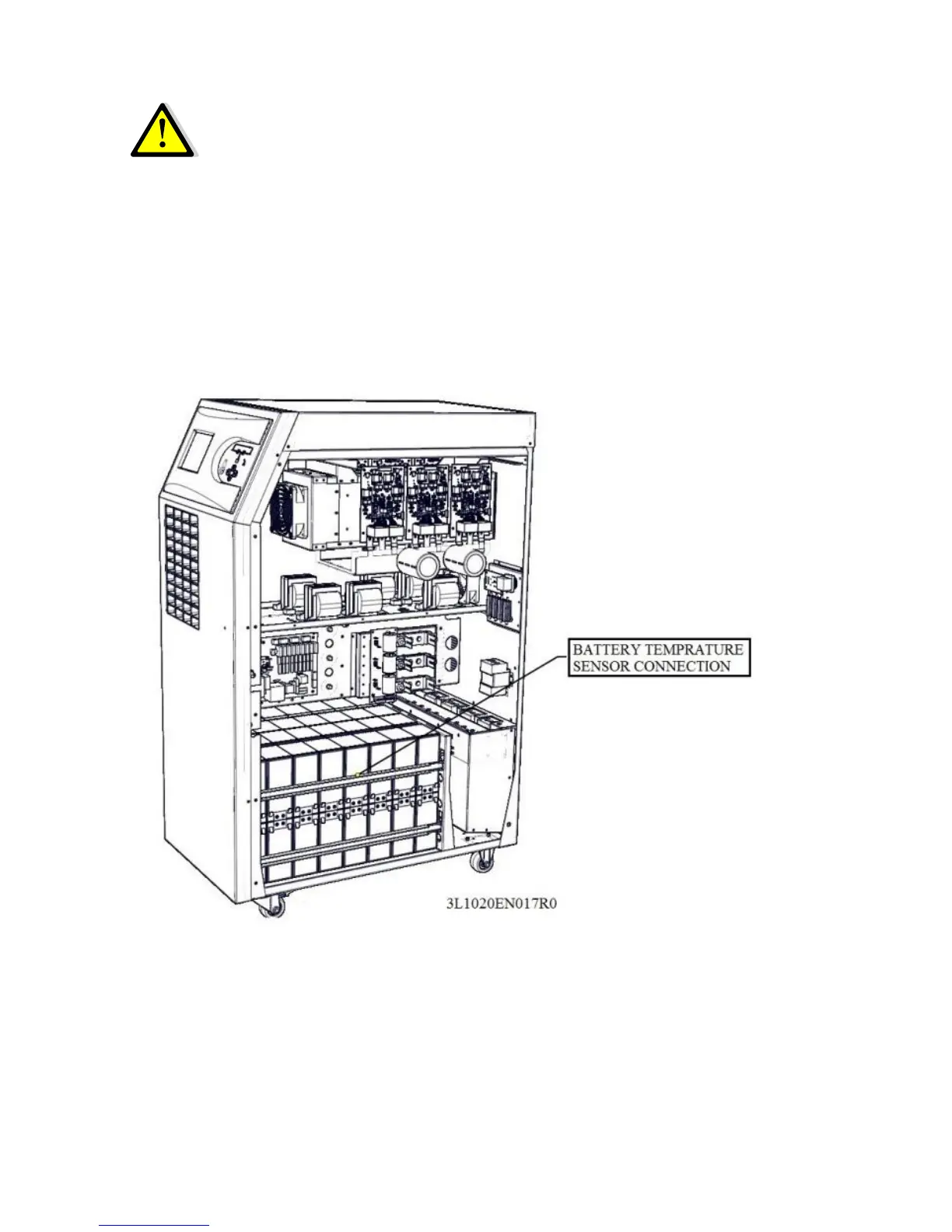

Battery temperature monitoring
Internal battery temperature is monitored by the NTC connected to the J26 socket of the main
board. Refer to the options section for external battery monitoring.
