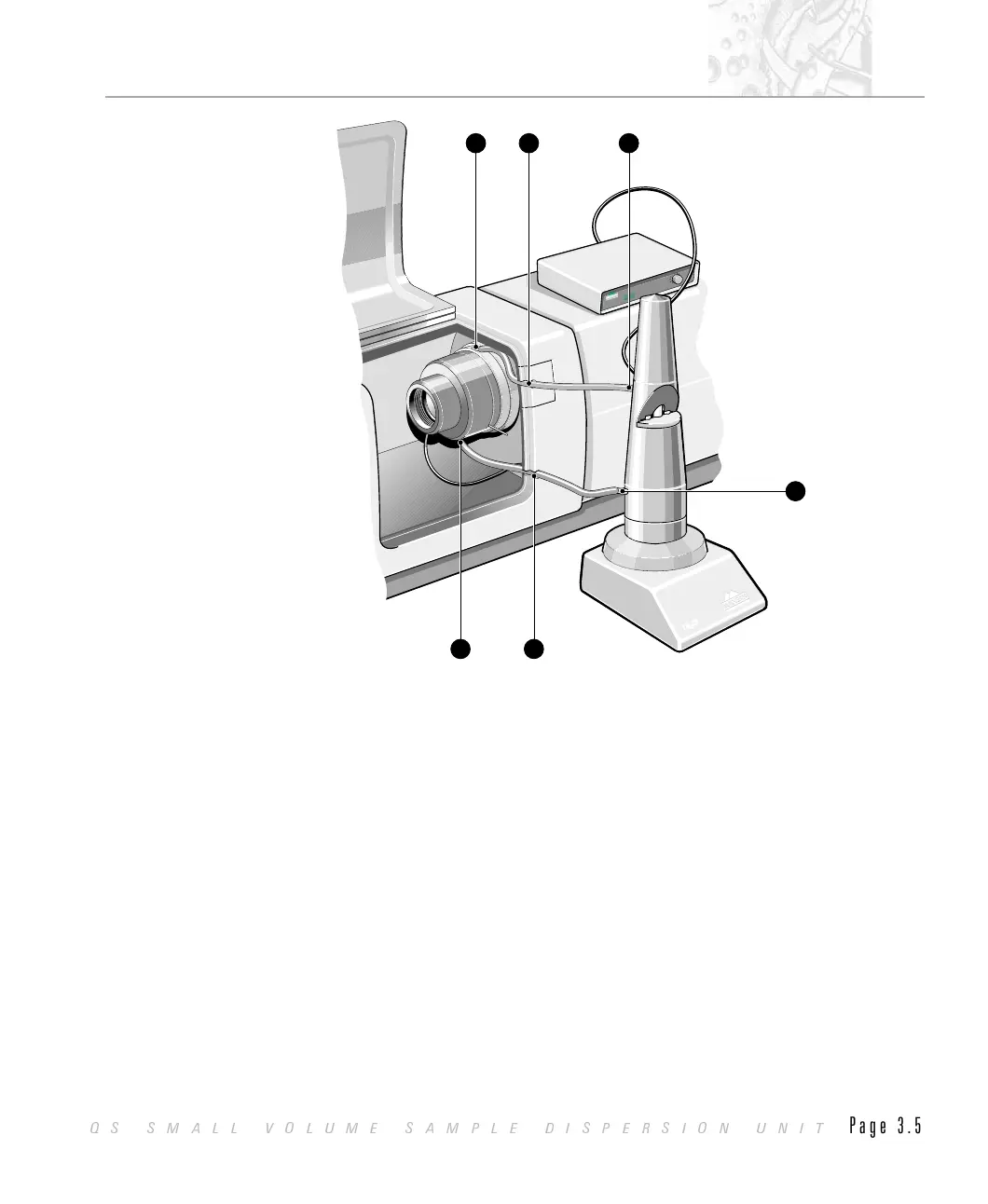

Similarly, make a connection between the outlet (top connection) of the
flow cell à to the top connection of the Dispersion Unit Ä with sample
tubing. Pass the tube through the cover by squeezing the tube and fitting it
into the “keyhole” recess Å. Make sure the tube is not constricted.
.
Ensure that all sample tubing is arranged such that there are no twists or
loops. This is because the flow cell and tubing drain under gravity.
.
If your sample and dispersant are safe to be disposed of into the water sys-
tem, connect a length of drain tubing between the drain of the Dispersion
Unit and a sink, otherwise place a suitable sized beaker or conical flask (at
least 150 ml capacity) below the drain outlet. Again, ensure the tubing is ar-
ranged such that the Dispersion Unit can drain under gravity.
.
Attach the 37 way D type connector (digital I/O) from the Controller Unit
to the digital I/O socket on the Mastersizer.
.
Attach the Dispersion Unit cable on the Dispersion Unit to the 15 way D
type connector on the Controller Unit.
.
Connect the mains power cable into the power socket at the rear of the
Controller Unit.
Small Volume Sample Dispersion Unit
INSTRUMENTS
Small Volume Sample Dispersion Unit
INSTRUMENTS
Dis
p
e
r
s
io
nUn
i
tC
o
n
tr
o
lle
r
Stir
re
r
Sp
e
e
d
R
P
M
IN
S
T
RU
M
E
N
TS
Dis
p
e
r
s
io
nUn
i
tC
o
n
tr
o
lle
r
Stir
re
r
Sp
e
e
d
R
P
M
IN
S
T
RU
M
E
N
TS
4 56
2 3
1
ILL 3039
CHAPTER 3
QS SMALL VOLUME SAMPLE DISPERSION UNIT
Page 3.5
