anti-clockwise the pump speed will be zero, with it turned fully clockwise the
pump speed will be at its maximum.
É Qspec logo
If your company operates within the pharmaceutical industry, you will be pleased
to know that the Qspec label means that the instrument is eligible for coverage by
a Malvern Qspec Validation contract which can help you to meet the
requirements of the Food and Drug Administration (FDA). For further details
contact your local Malvern distributor.
Controller Unit rear panel

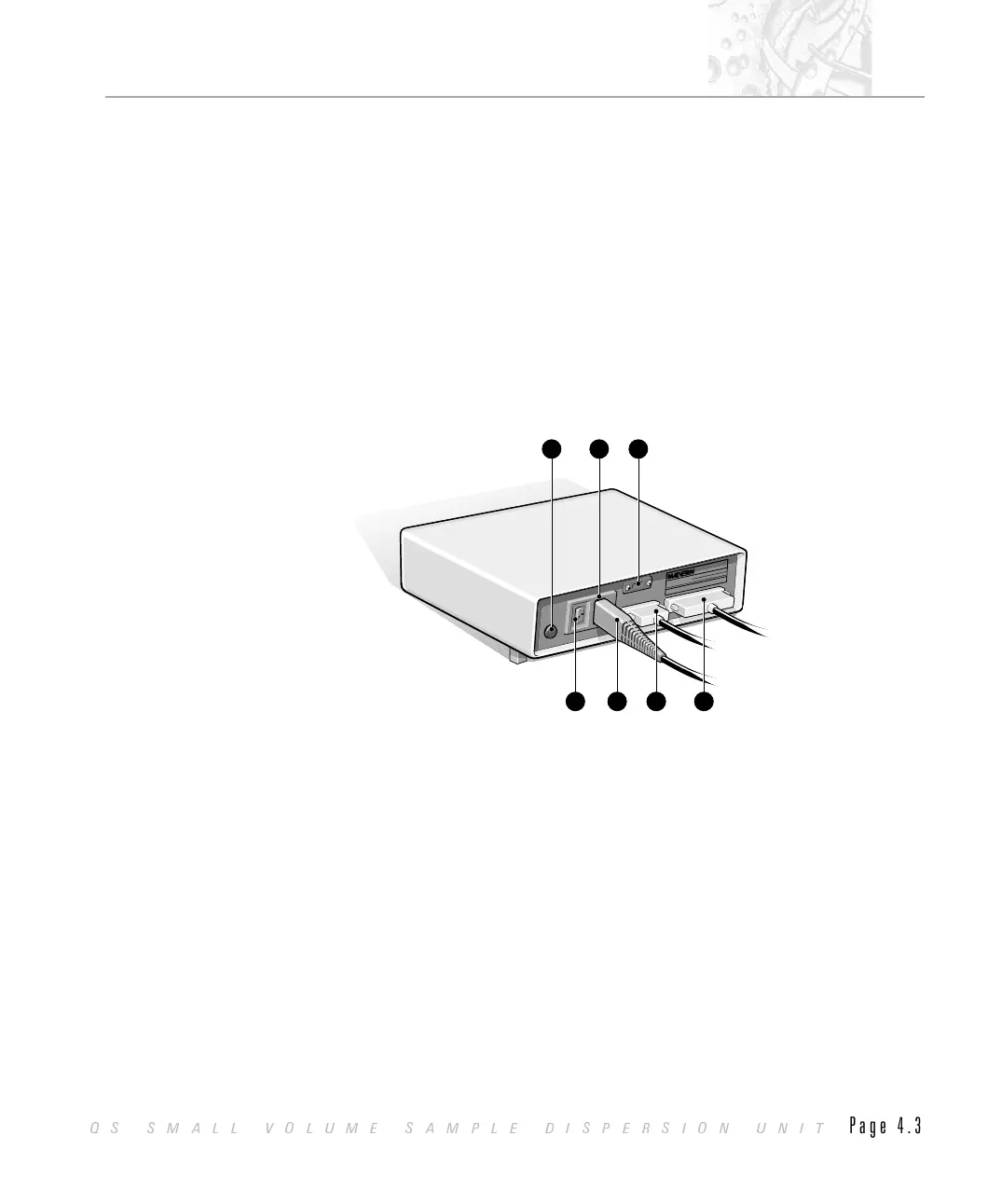

The illustration below identifies the main features of the rear panel.
+
Mains on/off switch
The mains on/off switch controls the mains power supply to the Accessory.
,
Dispersion Unit connector
The Dispersion Unit connector carries the power supply and control signals to
the Dispersion Unit from the control electronics located in the Controller Unit.
-
Mains power cable
The mains power cable connects the mains power supply to the Accessory.
