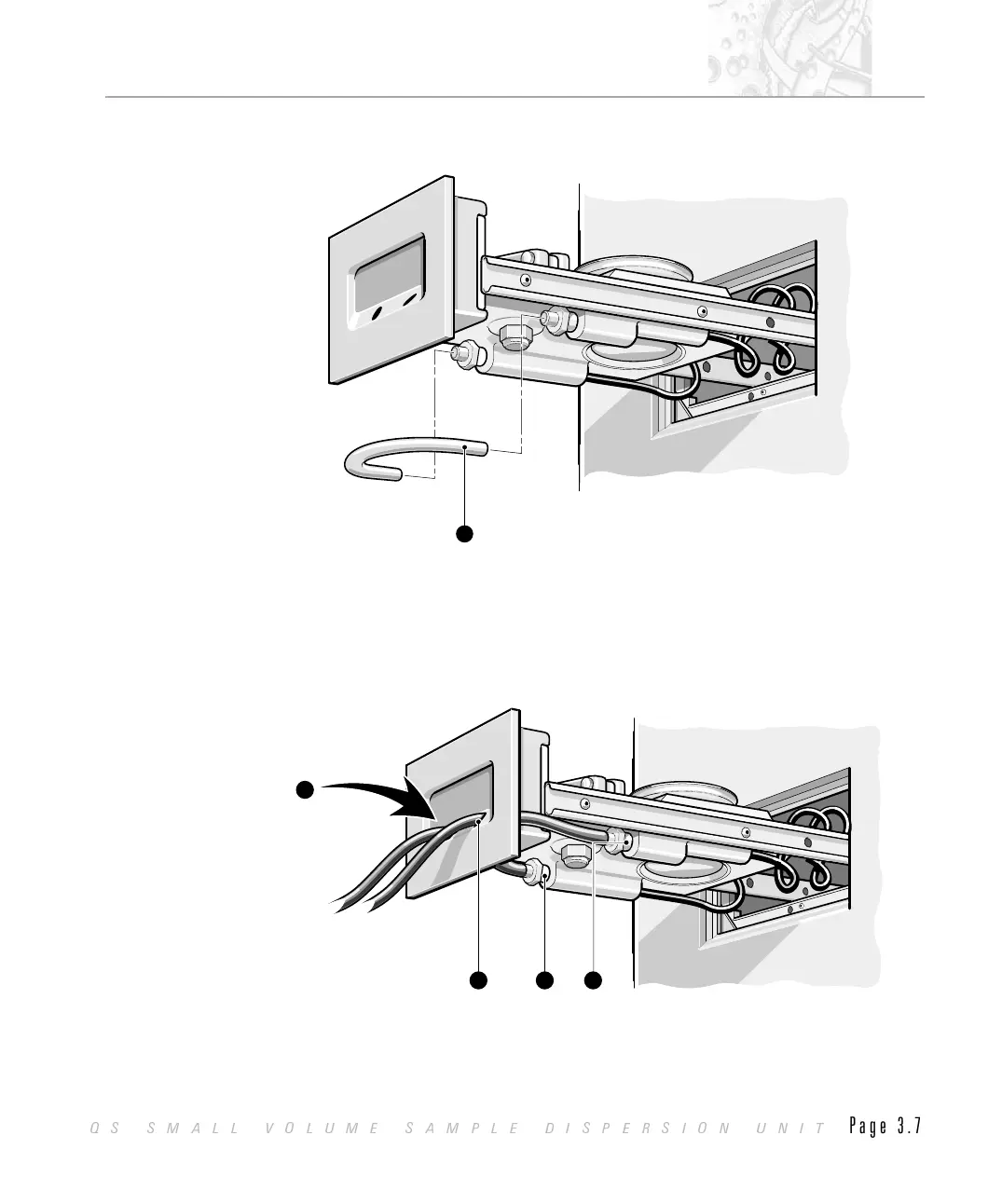

On the under side of the cell drawer, remove the sample tube À connect-
ing the cell inlet to the outlet.
.
Referring to the next two illustrations, cut a suitable length of sample tub-
ing and connect the sample out (bottom connection) of the Dispersion
Unit À to the inlet (front connection) Á on the Mastersizer, via the associ-
ated hole in the front of the drawer Â, see the illustrations below.
1
ILL 3667
6
3 5 2
ILL 3668
CHAPTER 3
QS SMALL VOLUME SAMPLE DISPERSION UNIT
Page 3.7
