SET-UP AND INSTALLATION 18000 OPERATOR MANUAL

4-108

Published 12-05-17, Control # 032-23

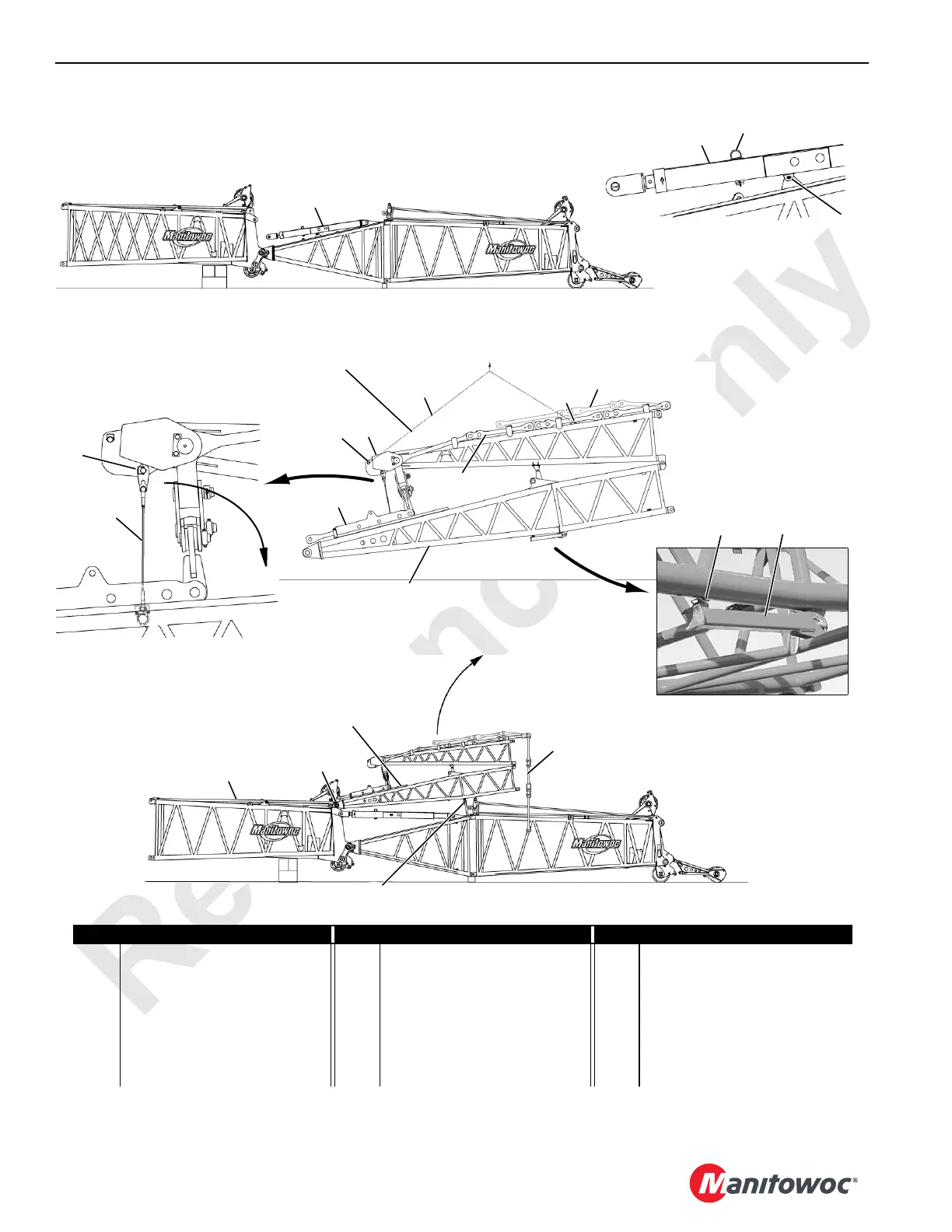

FIGURE 4-58

View A

View B

View C

View D

View E

View F

(shipping position)

(stored)

(unfolded)

Pin pendants

(14) here for

storage

(folded)

Longer sling

attached to

strut top

P2184

Item Description Item Description Item Description

1 Jib Stop 9 Jib Straps and Links (as shipped) 17 Boom Top

2 Stop Pin 10 Jib Straps and Links (assembled) 18 Adjustable Link Strap

3 Pin w/Snap Pin 11 Lifting Lug 19 Strap Retaining Pin

4 Jib Strut Butt 12 Connecting Pin w/Cotter Pins 20 Backstay Strap (#55 Boom)

5 Jib Strut Top 13 Strut Support 21 Strap Connecting Link

6 Adjustable Link 14 3 ft, 3 in (0,99 m) Pendant 22 Connecting Pin w/Collar and

7 Sling from Assist Crane 15 Pin w/2 Snap Pins Retaining Pins

8 Pin w/2 Snap Pins 16 Pin w/2 Snap Pins 23 Strap Shipping Pin

4-198

4-200

4-201

4-202

4-203
