SET-UP AND INSTALLATION 18000 OPERATOR MANUAL
4-118
Published 12-05-17, Control # 032-23
Anchoring Wire Rope to Drum
See Figure 4-64 for the following procedure.
Use the correct wedge part number for the size of wire rope
being used (see parts drawing for the boom hoist drums or
for the load drum shaft to obtain the correct part number).
1. Assemble wire rope and wedge to drum socket.
2. Tighten wedge, rapping back of wedge with a brass drift
pin and hammer.
Winding Wire Rope onto Drum
See Drum and Lagging Chart in Capacity Chart Manual for
correct size of drum laggings, if used.
See Wire Rope Specifications Chart in Capacity Chart
Manual for correct type, size, and amount of wire rope to be
installed on load drums.
See Boom Rigging Drawing at the end of this section for
correct type, size, and amount of wire rope to be installed on
boom hoist drums.
1. Carefully inspect drums and all rope guides, rollers, and
sheaves for defects that can cause wire rope to wear or
be cut. If defects cannot be fixed, replace faulty parts.

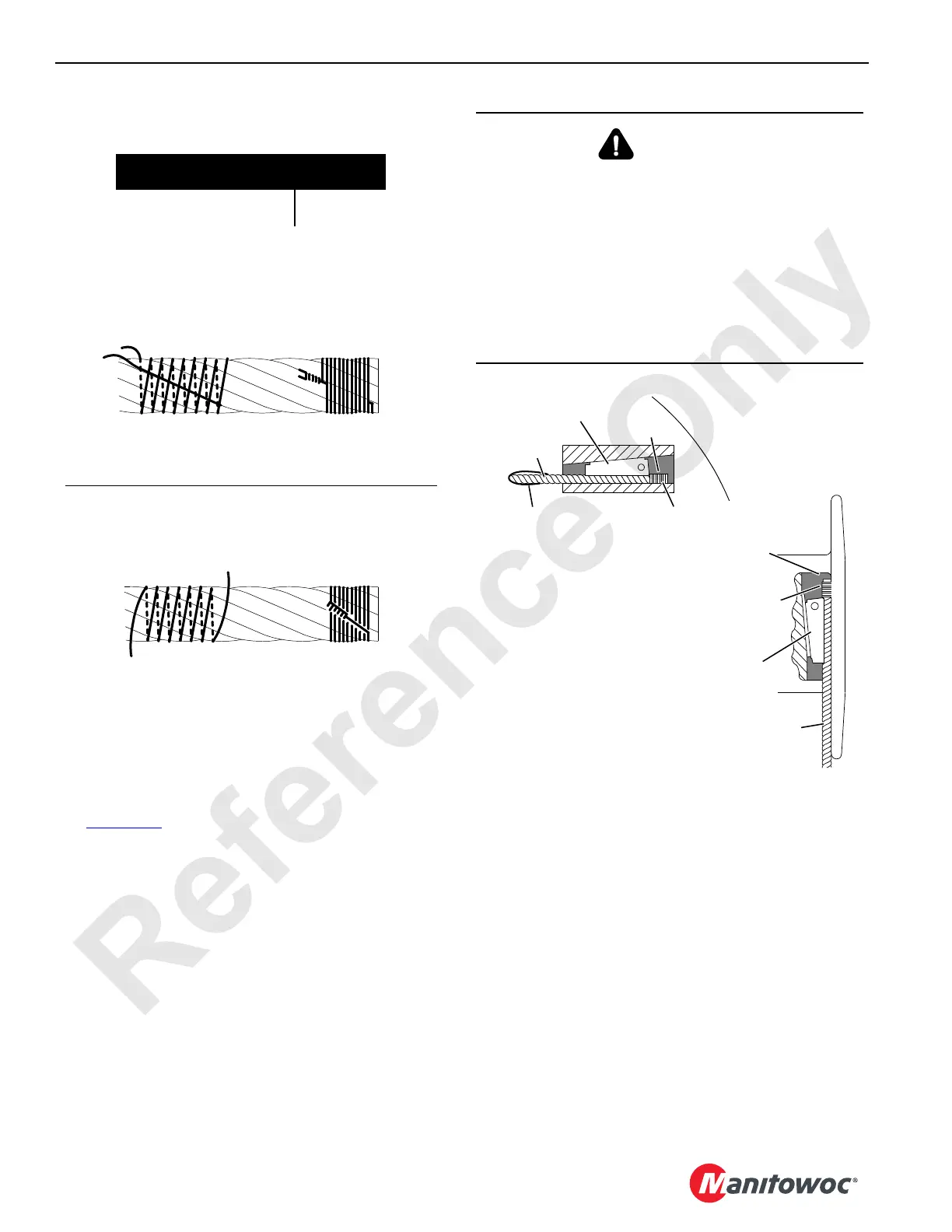

FIGURE 4-63
Place free end of seizing wire in valley between two stands.
Then wind seizing wire over free end as shown. Finally, twist
and pull two ends of seizing wire together until seizing is tight.
View A
A925
Rope Diameter 1 in (26 mm) and Larger
View B Rope Diameter Smaller than 1 in (26 mm)
Wind seizing wire around wire rope as shown. Then twist two ends
of seizing wire together at center of seizing. Alternately twist and pull
ends until seizing is tight.
Wire Rope Type
Seizings
Required
Preformed 1
Non-preformed 3
WARNING!
Falling Load Hazard!
Wire rope can be pulled out of drum if the following steps
are not taken.
• Install straight wedge so corrugated side is against
wire rope.
• Install wedge so end of wire rope extends past end of
wedge, but not out of drum socket.
• Make sure seizing is not under wedge. Remove
seizing if it interferes with assembly.
FIGURE 4-64
Hole in
Drum Flange
Straight Wedge
Inside Drum
Straight Wedge
Outside Drum
Don’t Allow End of
Wire Rope to Extend
Out of Socket Opening
Seizing
Seizing
Wire
Rope
Wire
Rope
