Configure Enclosure Panels

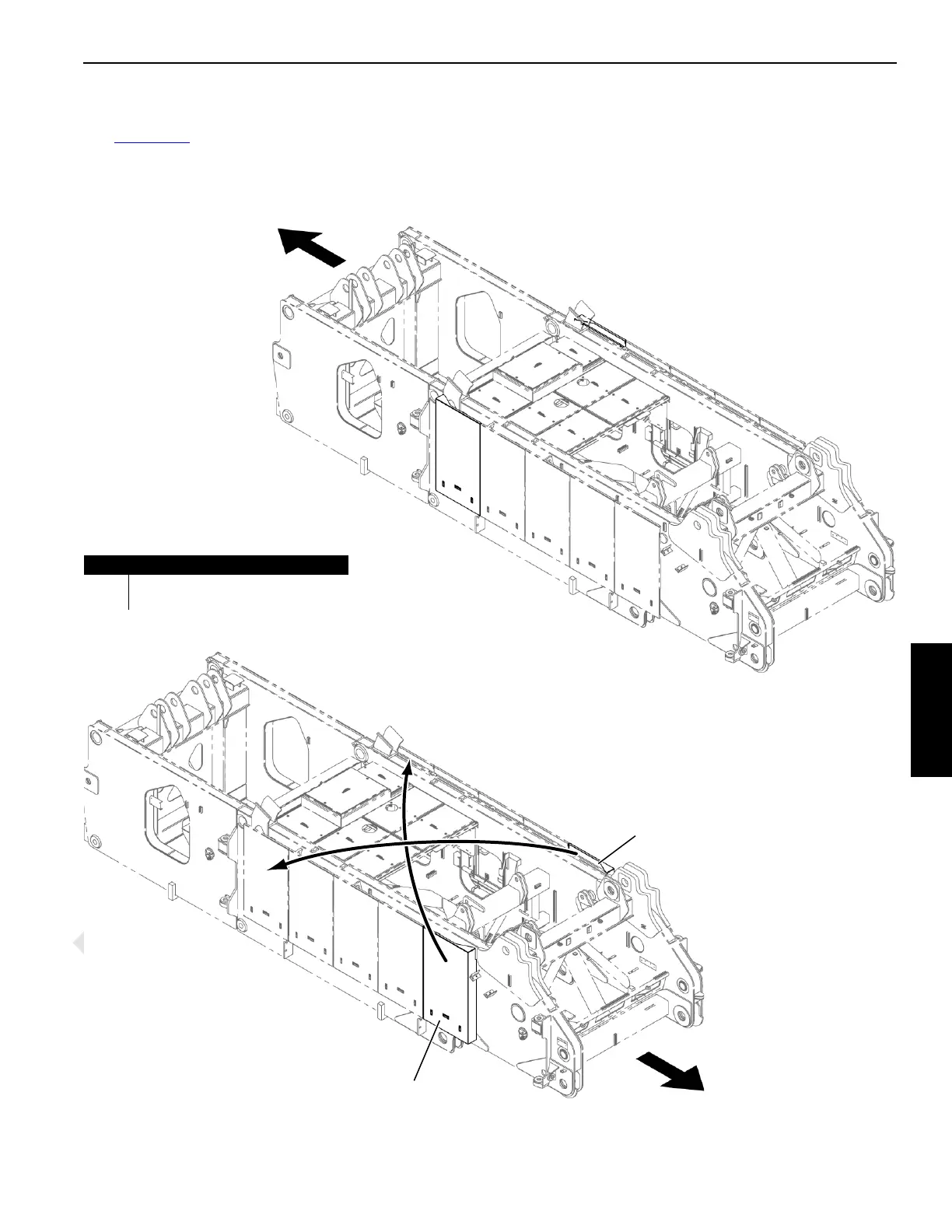

See Figure 4-19 for the following procedure.
NOTE This procedure only applies to crane when shipped
with front of rotating bed facing truck cab (shipping
position 2).
Working Position
1. Reposition enclosure panels on both sides of crane by
swapping sides with panels (1) and (2) and relocating to
the rear of the rotating bed.
Front Face of Rotating Bed
Working Position or Shipping Position 1
Truck Cab
Shipping Position 2
Truck Cab
Front Face of Rotating Bed
1
2
2
1
Move to Rear
Move to Rear
Current Production Shown; Past Production Similar
FIGURE 4-19
Item Description
1 Right Side Rear Enclosure Panel
2 Left Side Rear Enclosure Panel
