31000 LUFFING JIB OPERATOR MANUAL SET-UP AND INSTALLATION
69
Information below from drawing A19443, Sheet 26:
• Install shackles (A) and block snatch (B) to the lower boom point dead end lug (C).
• Reeve the hook block with a sucker line per drawing A18701.
• Connect the 50 mm rope (G) to the 19 mm rope (H) as shown below:
Step Action

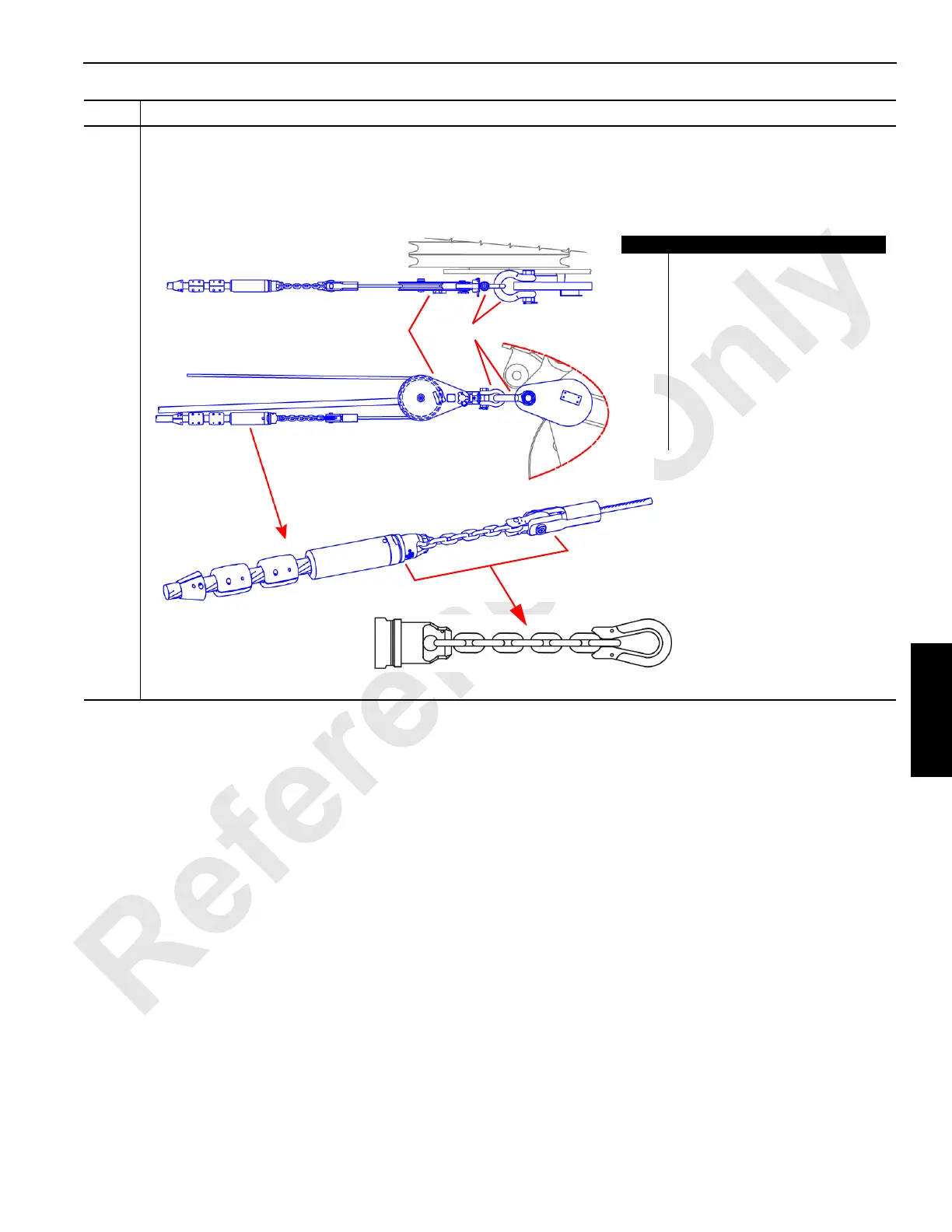

FIGURE 4-66
Item Description
A Shackles.
B Block snatch.
C Lower boom point dead end lug.
D Split collars for 50 mm rope.
E Swivel head button.
F Button socket for 19 mm rope.
G 50 mm rope.
H 19 mm rope (Drum 6 rigging winch).
I Swivel head button.
J Chain.
K Chain coupler.
AB
C
D
D
D
E
F
G
H
I
J
K
