TRANSMISSION AND TORQUE CONVERTER 5540F/YB5515 SERVICE MANUAL
7-46 Published 10-21-2010, Control# 198-04

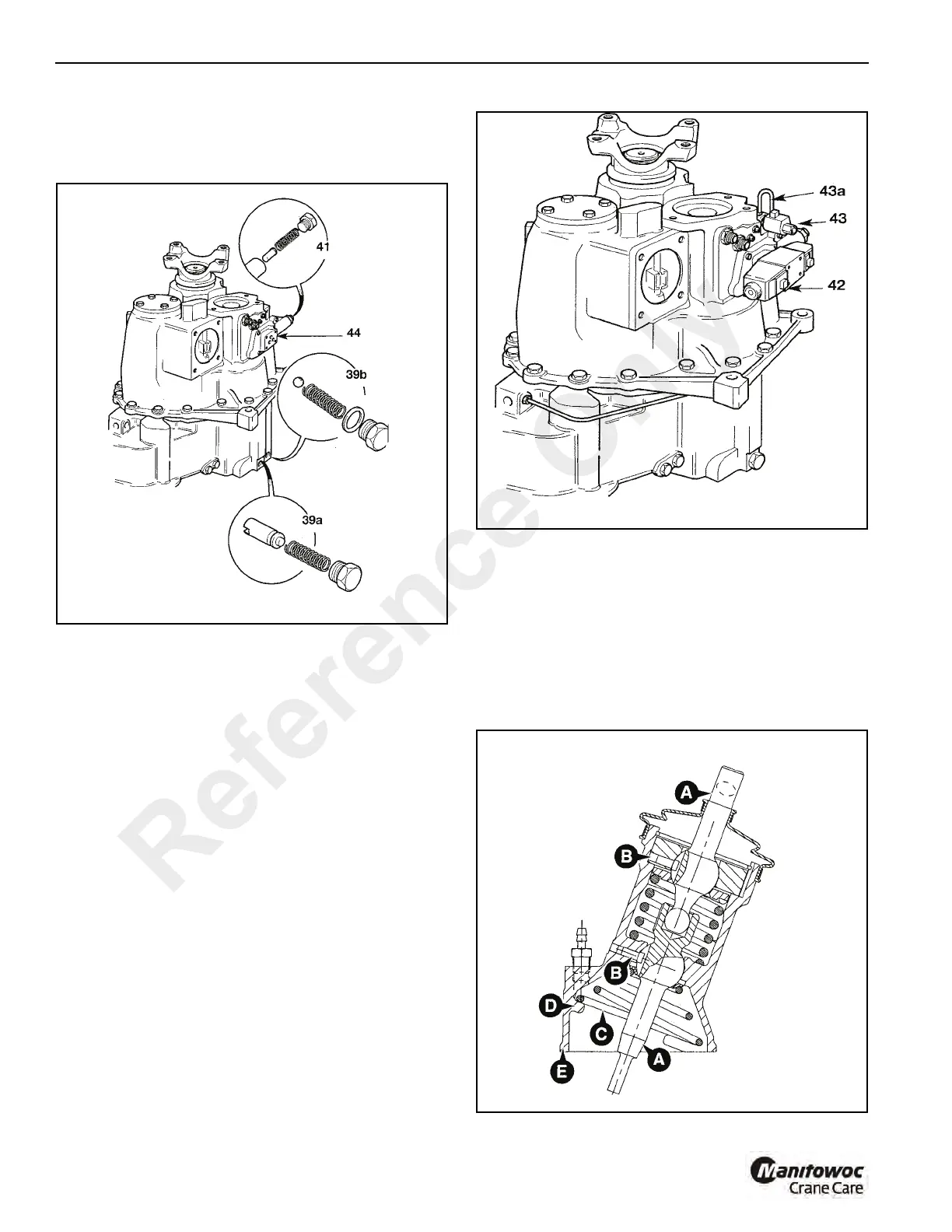

41. Assemble pressure maintenance valve spool 41 and
spring into adaptor block. Apply Loctite 242 to plug, fit
and tighten. Do not overtighten as damage to the
aluminium housing could result.
42. Install new O-rings around ports on mating face of
solenoid valve 42. Mount solenoid valve onto pressure
maintenance valve, ensuring that port P1 aligns with
metering orifice in the pressure maintenance valve body.
Apply Loctite 242 to capscrews and tighten to 3.7 lb ft (5
Nm).
43. Fit the 4-wheel drive solenoid valve. Fit the hydraulic
pipe 43a.
44. If the gear lever turret assembly has been dismantled,
apply grease liberally to the working surfaces before
assembling. Assembly is the reverse of the procedure
detailed in Gearbox - Dismantling, Step 11, but note the
following:
a. Be sure to locate the slots in the levers A
(Figure 7-67) with the pegs B in the housing E.
b. After fitting spring C, rotate it so that the end of the
bottom coil butts with the spigot D in the housing E.
