SET-UP AND INSTALLATION PROCEDURES RT530E-2 OPERATOR’S MANUAL
4-12 Published 5-3-2016, Control # 555-02
6036
5
7
4
6
2
1
3
OUT POSITION
3
4
2
6
1
7
5
6035
6034
IN POSITION
DETAIL A
DETAIL B
13
8
12
11
10
10
9

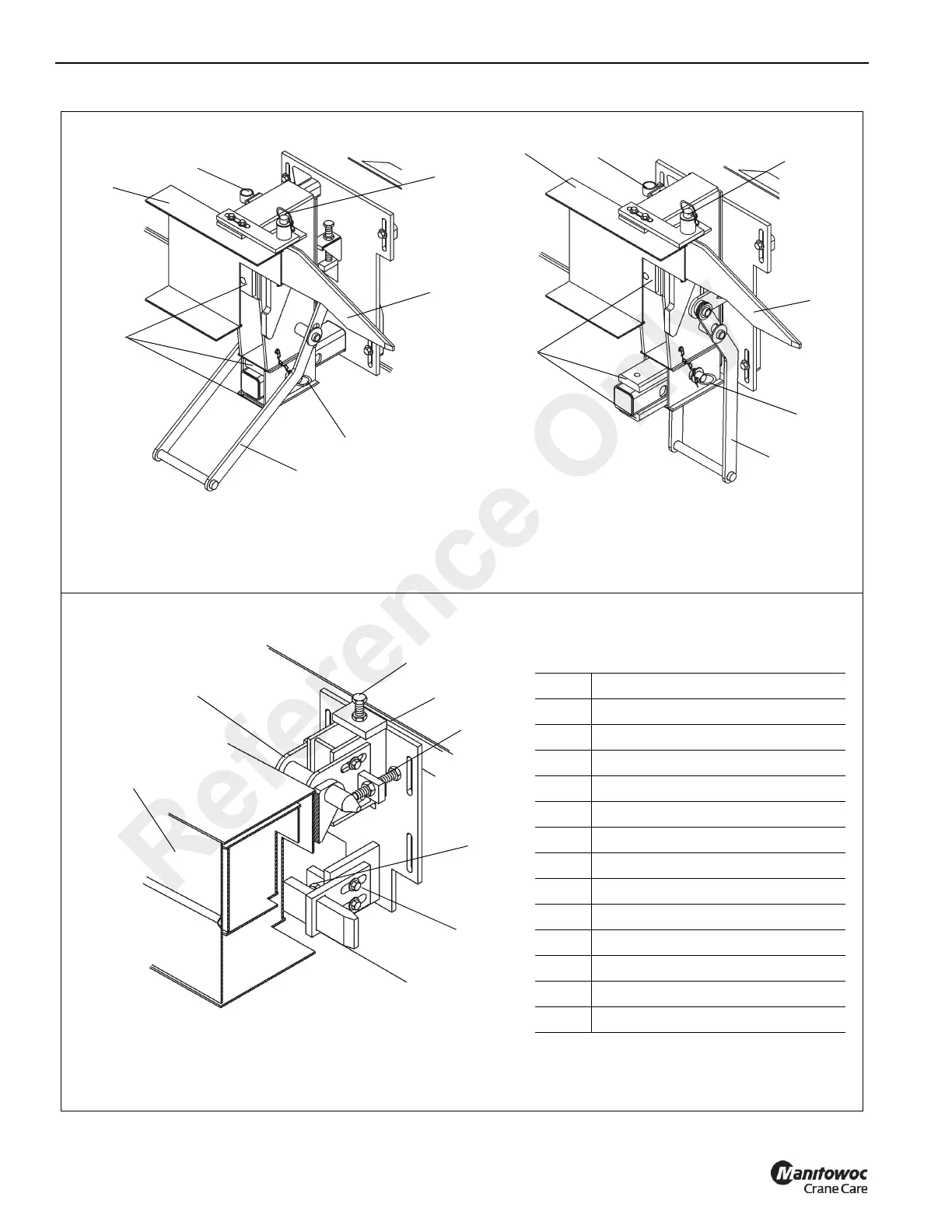

Item Description
1 Handle
2 Retainer Pin
3 Wear Pads
4 Clip Pin and Hitch Pin
5 Swingaway
6 Sliding Support and Ramp
7 Stowage Lug for Hitch Pin
8 Hanger Weld
9 Vertical Adjustment Bolt
10 Horizontal Adjustment Bolt
11 Lower Support Weld
12 Base Boom Section
13 Swingaway
FIGURE 4-12
Reference Only
