Manitowoc Grove RT540E - Page 21

Published 01-15-2016, Control # 526-01 1-5
RT540E OPERATOR MANUAL INTRODUCTION
GROVE
1

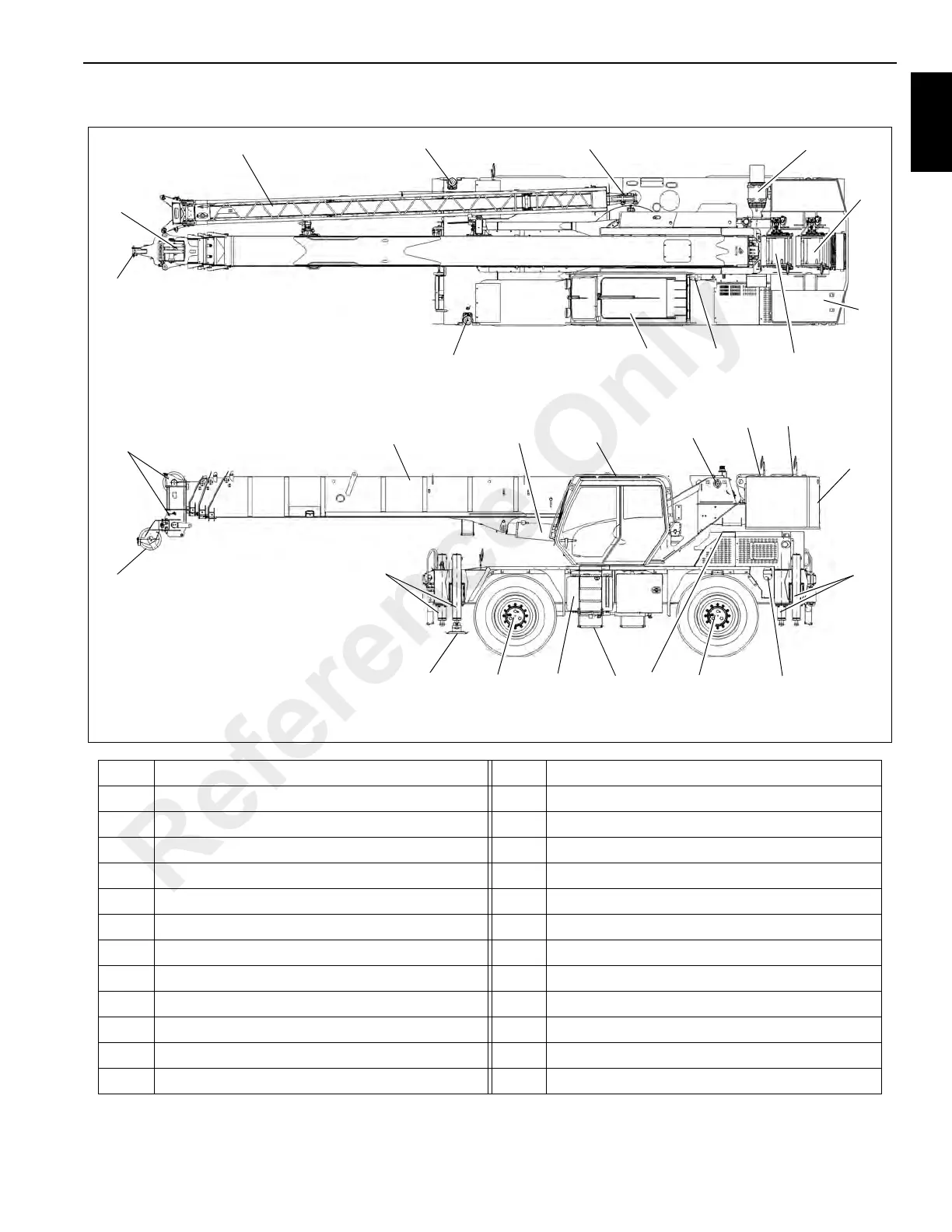

COMPONENT LOCATIONS
8512
8513
FIGURE 1-3
9
15
14
19
20
20
10
19
23
1
7
6
16
8
3
9
1
5
8
3
2A
3
22
4
11
5
Top View
Left Side View
12
25
24
3
1 Cab 13 Boom Extension Mast Sheave
2A Outrigger Float (Installed) 14 Boom Extension
2B Outrigger Float (Stowed) 15 Boom Extension Nose
3 Outrigger Jack Cylinder 16 Boom Pivot
4 Steps 17 Hydraulic Tank
5 Counterweight 18 Hydraulic Filter
6 Lift Cylinder 19 Main Hoist
7 Boom 20 Auxiliary Hoist
8 Boom Nose Sheaves 21 Hookblock
9 Auxiliary Boom Nose 22 Fuel Tank
10 Front Axle 23 Windshield Washer Fluid Container
11 Rear Axle 24 Air Cleaner
12 Engine (Under hood) 25 Diesel Exhaust Fluid (DEF) Tank
Reference Only
