NATIONAL CRANE Published 11-01-2020 Control # 710-00 4-17
NBT60XL OPERATOR MANUAL SET-UP
4

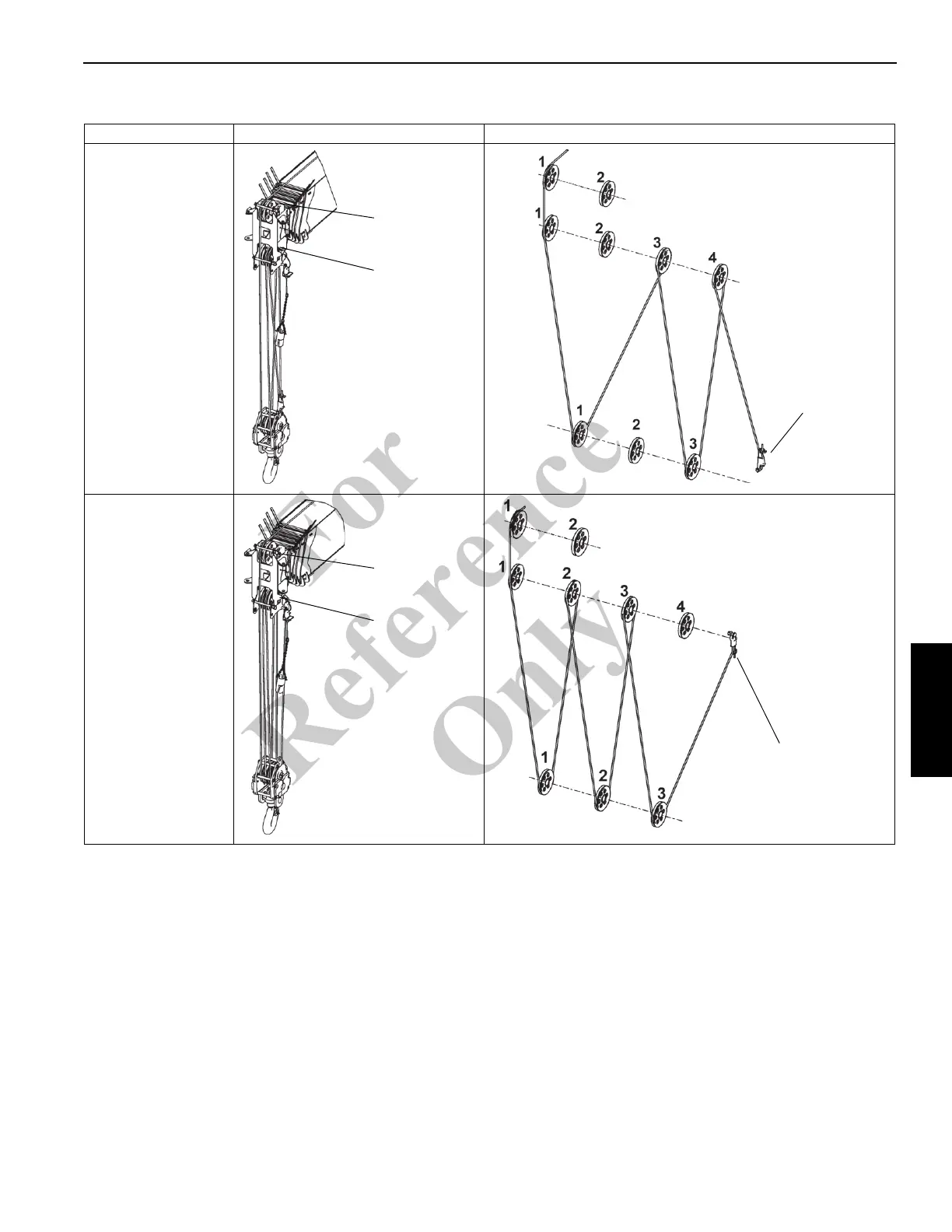

5-Part Line Reeving
6-Part Line Reeving
Table 4-1 Possible Multi-Part Line Reeving Combinations (Continued)
Line Parts Assembled View Reference Drawing
3-Sheave
Hook Block
ATB
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
9647
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Hook Block
Sheaves
Connect to
Hook Block
9648
3-Sheave
Hook Block
ATB
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
9649
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Hook Block
Sheaves
Connect to
Boom Nose
9650
Fo
r
Reference
Only
