NATIONAL CRANE Published 11-01-2020 Control # 710-00 4-19
NBT60XL OPERATOR MANUAL SET-UP
4

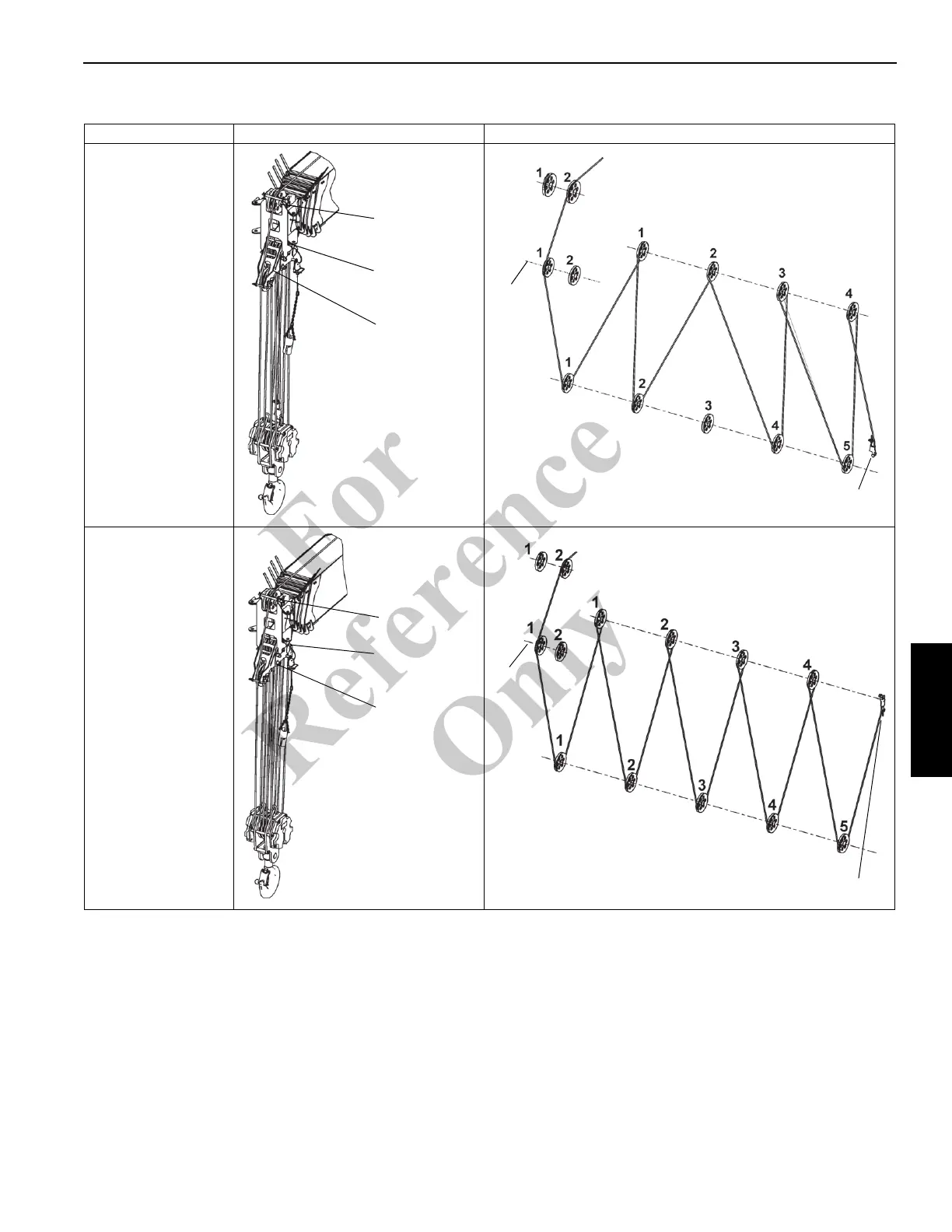

9-Part Line Reeving
10-Part Line
Reeving
Table 4-1 Possible Multi-Part Line Reeving Combinations (Continued)
Line Parts Assembled View Reference Drawing
5-Sheave
Hook Block
ATB
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Auxiliary
Sheave Case
9655
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Hook Block
Sheaves
Connect to
Hook Block
Sheave
Case
Aux
9656
5-Sheave
Hook Block
ATB
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Auxiliary
Sheave Case
9657
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Hook Block
Sheaves
Connect to
Boom Nose
Shve.
Case
Aux
9658
Fo
r
Reference
Only
