NATIONAL CRANE Published 11-01-2020 Control # 710-00 2-11

NBT60XL OPERATOR MANUAL SAFETY PRECAUTIONS

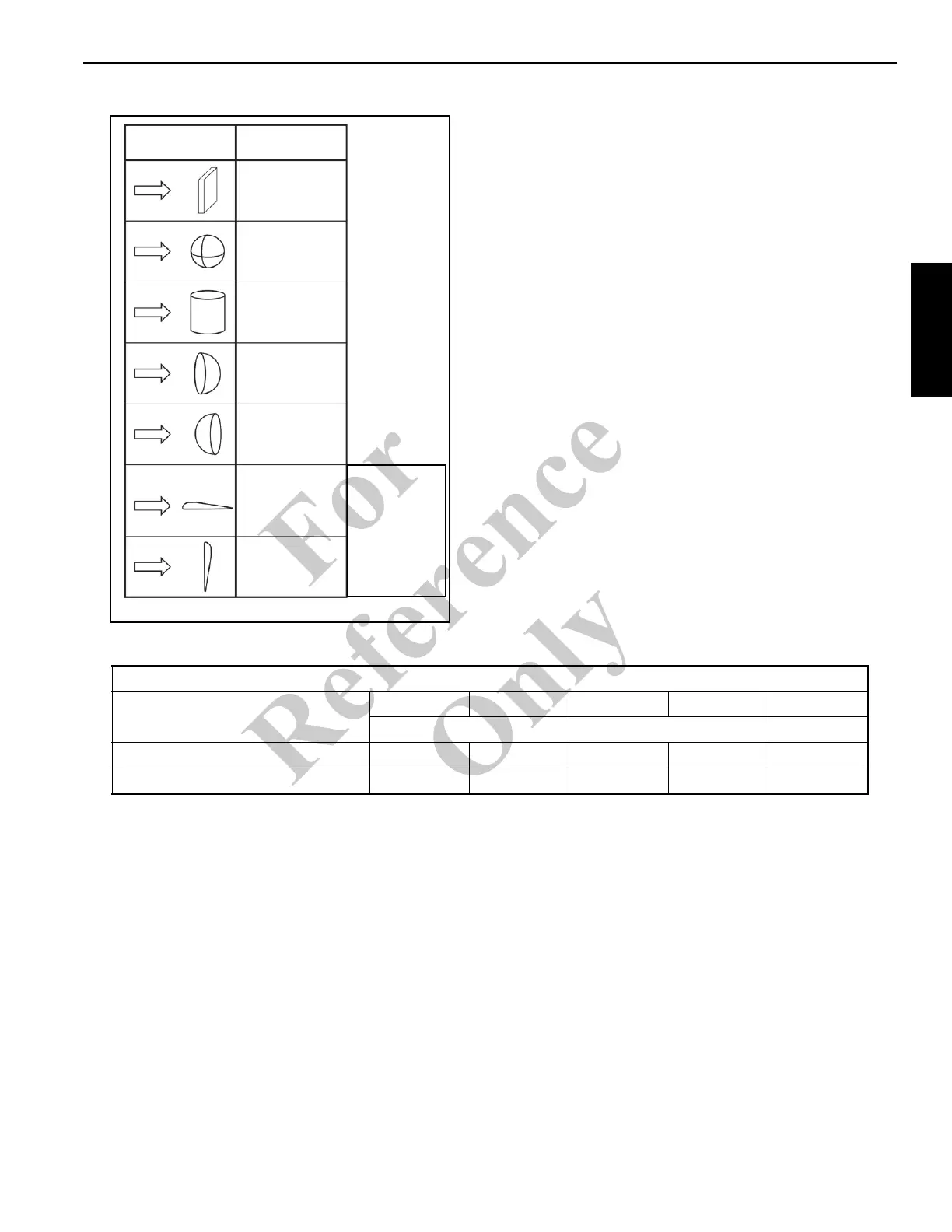

Table 2-2 Wind Drag Coefficient

Maximum Permissible Wind Speed

If the wind resistant area of the load Awr

(load)

is greater than

the allowable wind resistant area Awr

(allow)

, the ratio can be

used to determine a permissible wind speed V(z) for the load

using Table 2-3.

Table 2-3 Awr Ratio and Permissible Wind Speed V(z) - Imperial units

8384-2

Shape

1.1 to 2.0

0.3 to 0.4

0.6 to 1.0

0.8 to 1.2

0.2 to 0.3

0.05 to 0.1

Approximately 1.6

Turbine Blade or

Complete Rotor

Note: Permissible and rated wind speeds in this table are the 3-second gust wind speeds at boom tip height.

Ratio:

1.2 1.4 1.6 1.8 2

Maximum Permissible Wind Speed (mph)

For Rated Capacity at 30 mph 27.4 25.4 23.7 22.4 21.2

For Allowable Capacity at 45 mph 41.1 38.0 35.6 33.5 31.8
