NBT60XL OPERATOR MANUAL CONTROLS AND OPERATING PROCEDURES
NATIONAL CRANE Published 11-01-2020 Control # 710-00 3-9
Emergency Stop Switch
There is an emergency stop switch (9, Figure 3-3) on the
outrigger controls on each side of the carrier. Pressing either
switch shuts down the engine.
NOTE: Use the emergency stop switch only in the case of
an emergency to shut down the engine; do not use
the emergency stop switch regularly as a means of
turning off the machine.

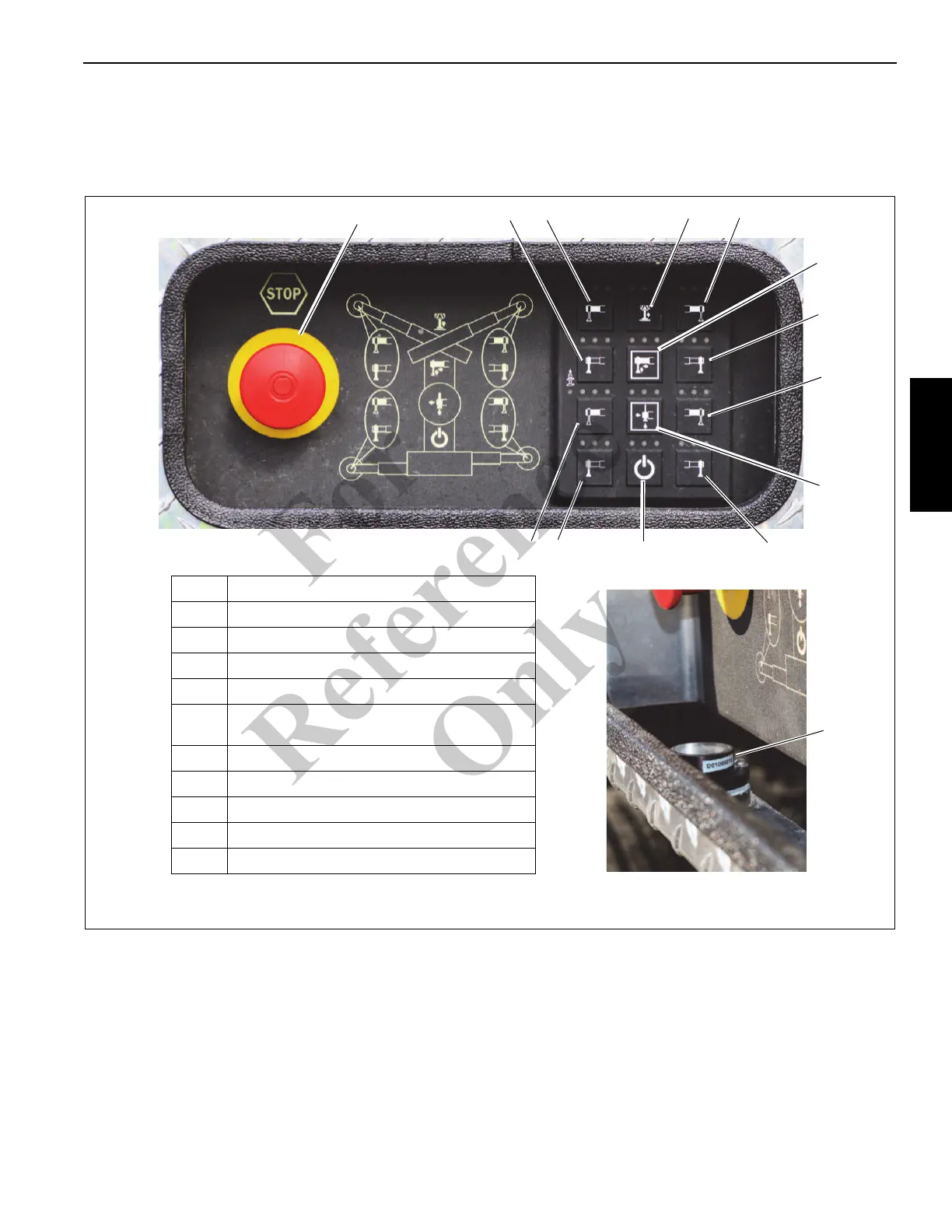

FIGURE 3-3
9697
1
2
3
9
4
5
1
1
1
Item Description
1 Outrigger Beam Selector Button
2 Outrigger Jack Selector Button
3 Extend Button
4 Retract Button
5
Single Front Outrigger (SFO) Button (if
equipped)
6 Enable Button
7 Module Power Indicator
8 Console Panel
9 Emergency Stop Switch
10 Level Indicator
2
2
2
6
10
9595
