NBT60XL OPERATOR MANUAL CONTROLS AND OPERATING PROCEDURES
3
NATIONAL CRANE Published 11-01-2020 Control # 710-00 3-11
30
41
9600

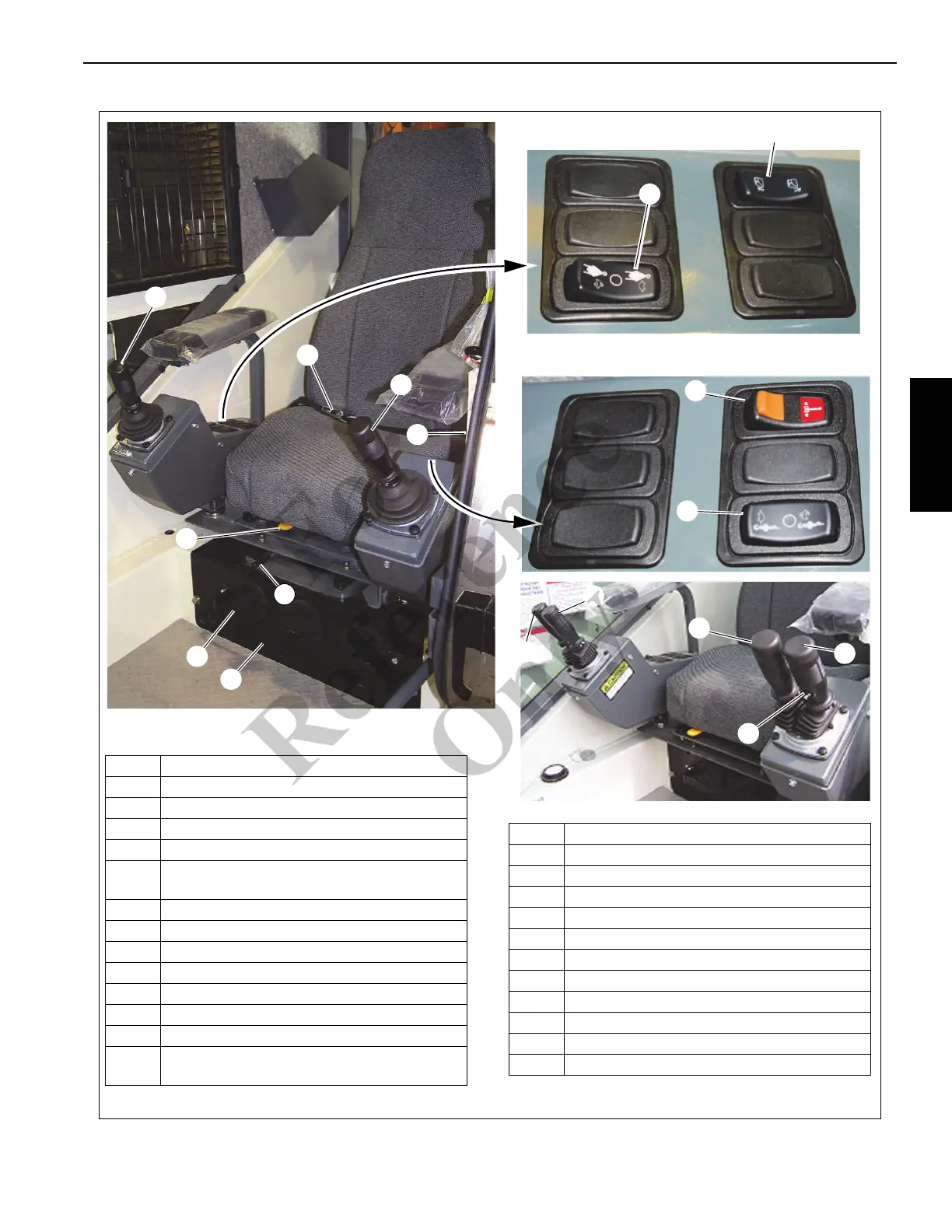

FIGURE 3-4 continued
29
28
27
26
31
10
34
7459-22
9599
33
39
38
37
36
35
7459-23
32
25
Item Description
25 Dual Axis Controller-Boom Lift/Main Hoist
26 Dual Axis Controller-Swing/Tele/ Aux Hoist
27 Seat Belt
28 Seat Back Adjustment
29
Seat/Controls Assembly Slide Adjustment
Lever
30 Main Hoist Speed Switch-HI/OFF/LOW
31 Auxiliary Hoist Speed Switch-HI/OFF/LOW
32 Swing Brake Control Switch
33 Horn Button
34 AC/Heater Climate Control Unit
35 Single Axis Controller-Boom Lift Lever
36 Single Axis Controller-Main Hoist Lever
37
Single Axis Controller-Boom Telescope/
Auxiliary Hoist Lever
38 Single Axis Controller-Swing Control Lever
39 Seat (only) Slide Adjustment Lever
40 360° Swing Lock Pedal (Optional)
41 Cab Tilt Switch
42 House Lock
43 Diagnostic Connector, RCL Module
44 PC1 Diagnostic Connector
45 Crane USB-B Diagnostics Connector
46 CCS RCL Module Diagnostics Connector
47 Seat Heater
48 USB-A (Standard) Power Port
Item Description
Fo
r
Reference
Only
