CD5515-2/YB5515-2 SERVICE MANUAL STEERING SYSTEM
10
5. Fit the cross pin into the spool/sleeve (Figure 10-36).
6. Fit bearing races and needle bearings as shown in
Figure 10-37 or Figure 10-38.
7. Turn the steering unit until the bore is horizontal. Guide
the outer part of the assembly tool into the bore for the
spool/sleeve (Figure 10-39).
8. Grease O-ring and kin-ring/roto Glyd with hydraulic oil
and place them on the tool (Figure 10-40).
9. Hold the outer part of the assembly tool in the bottom of
the steering unit housing and guide the inner part of the
tool right to the bottom (Figure 10-41).

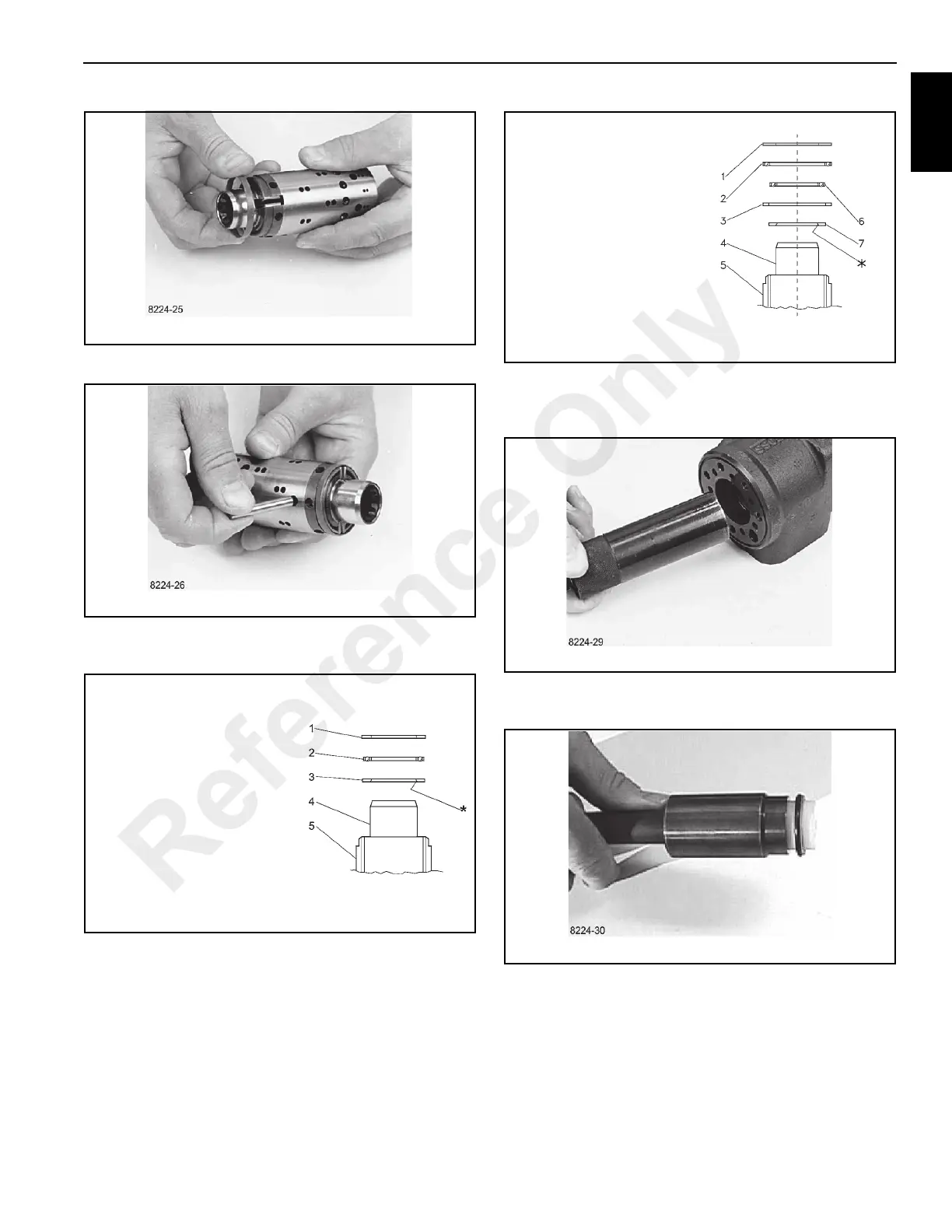

FIGURE 10-35
FIGURE 10-36
FIGURE 10-37
1. Outer bearing race
2. Needle bearing
3. Inner bearing race
4. Spool
5. Sleeve
FIGURE 10-38
1. Washer for axial bearing
2. Outer needle bearing
3. Outer bearing race
4. Spool
5. Sleeve
6. Inner needle bearing
7. Inner bearing race
FIGURE 10-39
FIGURE 10-40
Reference Only
