5
Getting
Started
ENGLISH
Q4
ENTER button ······························· (11, 38 – 40)
Used to confi rm an item.
• TUNER mode ··············································· (22)
Used to register a broadcast station.
Q5 u/i buttons
• SETUP mode ··································· (11, 38, 40)
Used to select the item to be set.
• TUNER mode ··············································· (22)
Used when switching frequencies.
• DISC, iPod/USB mode ························ (28 – 31)
Used to select the item.
GWith the door openH
Q7 Q8 W0 W1 W2Q9

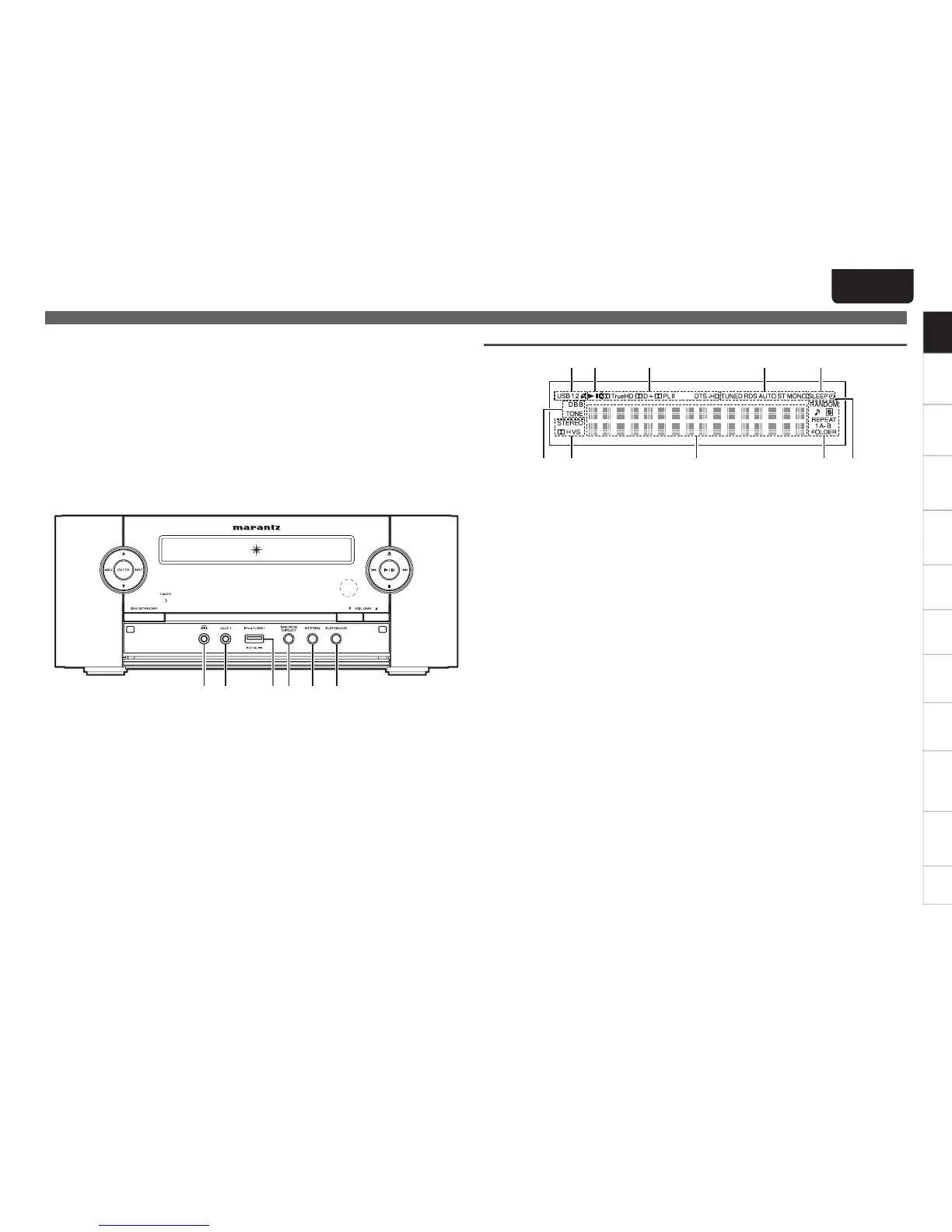

Part names and functions
Q6 MODE button
• SETUP mode ··············································· (39)
Calls up the SETUP menu when pressed
continuously.
• TUNER mode ··············································· (22)
Used to select reception band.
Q7 Headphones jack ········································ (13)
Q8 AUX1 input jack ··········································(26)
Q9 iPod/USB1 port ··········································(25)
W0 SOURCE DIRECT button ····························(13)
W1 STEREO button ···········································(21)
W2 SURROUND button ···································· (21)
q Tone indicators
DBB: Lights when the dynamic bass boost
function is set to “ON”.
TONE: Lights when the tone (bass/treble) is
being adjusted.
w Surround mode indicators ························(21)
e Information display
Various information is displayed here.
r Play mode indicators
Lights when the random playback mode or
repeat playback mode is used.
t Remote control signal reception indicator
y Timer operation indicator ··························(39)
Display
ew r
tq
Q0 o i u y
u Tuner reception mode indicators ·············(22)
These light according to the reception conditions
when the input source is set to “TUNER”.
TUNED: Lights when the broadcast is properly
tuned in.
RDS: This light when receiving RDS broadcasts.
AUTO: Lights when “FM AUTO” is selected.
ST: In the FM mode, this light when receiving
analog stereo broadcasts.
MONO: Lights when “FM MONO” is selected,
or when an analog monaural broadcast is
received.
i Decoder indicators
These light when the respective decoders are
operating.
o Playback mode indicators
1 : During playback
3 : During pause
Q0 USB/DISC indicators
Lights when a disc or USB memory device is
installed.
