Marantz NR1504 /U1B - 1. Front Panel Assy Disassembly (cont.)

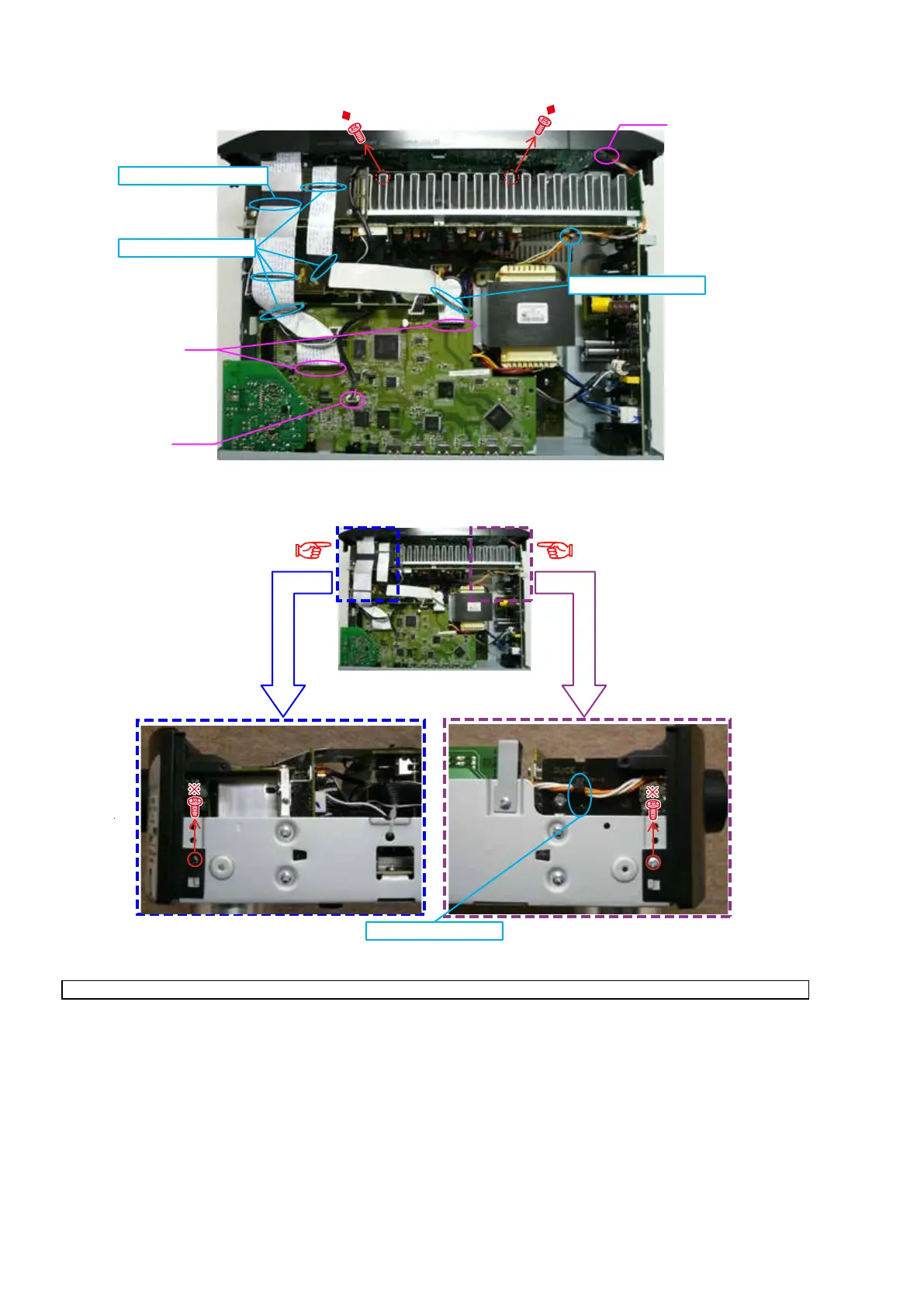

(2) Disconnect the connector wires and FFC. Remove the Style pin and screws.
(3) Remove the screws and Style pin.
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT PANEL ASSY.
FFC
N2801
CP4401
STYLE PIN:Loosen
Remove:ACETA TAPE
STYLE PIN : Loosen
Shooting direction: D
Shooting direction: C
STYLE PIN : Loosen
