Marantz NR1504 /U1B - 5. PCB HDMI Assy Disassembly

5. PCB HDMI ASSY
Proceeding : TOP COVER
→
PCB RC5_MX
→
PCB HDMI ASSY

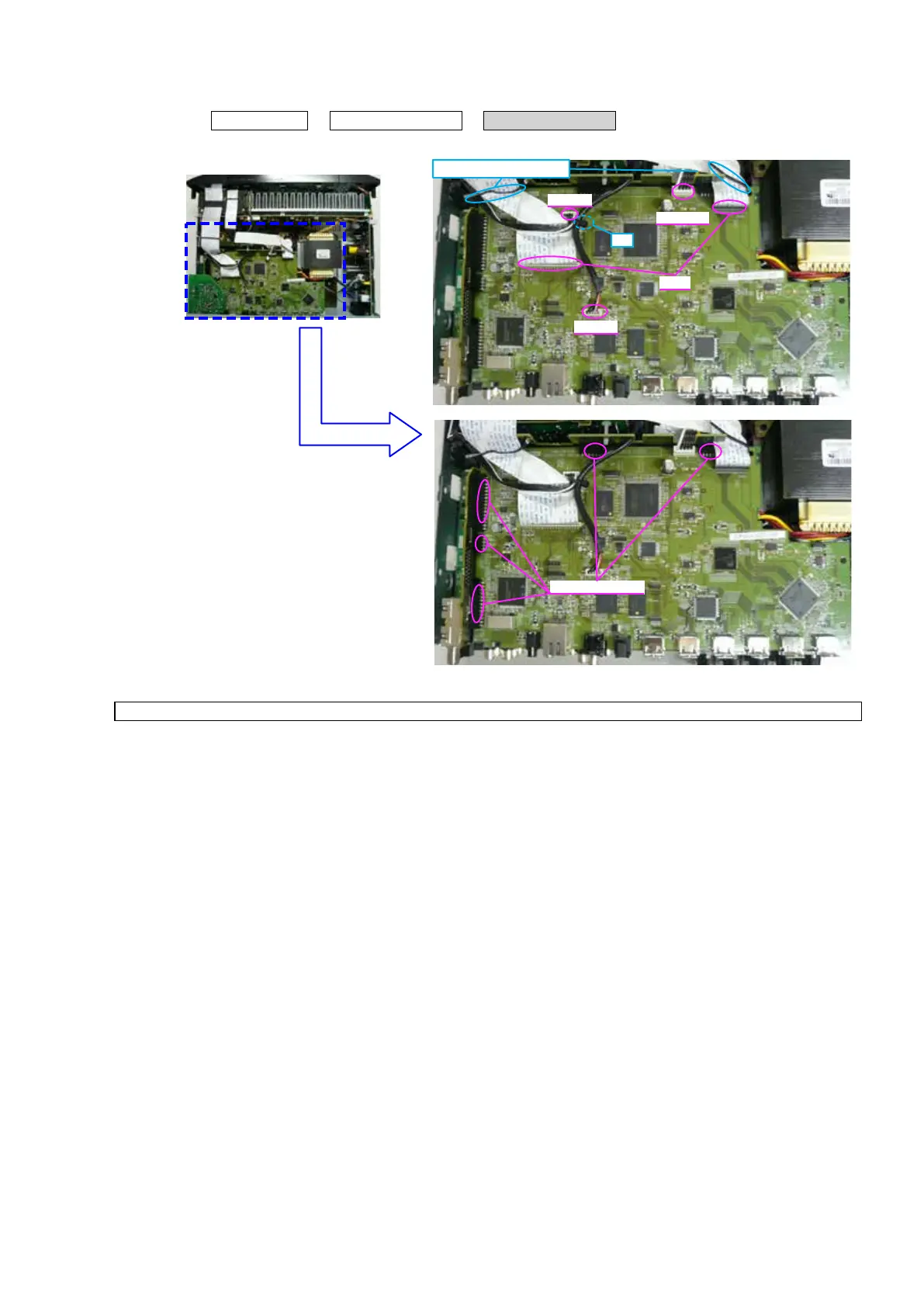

(1) Disconnect the connector wires and FFC, then disconnect the connector board.
NOTE :
When you remove a HDMI board, be careful of breakage of "PCB FRONT_CNT".
STYLE PIN : Loosen
cut
FFC
CX1000
N3405
N2801
Board to board
19
