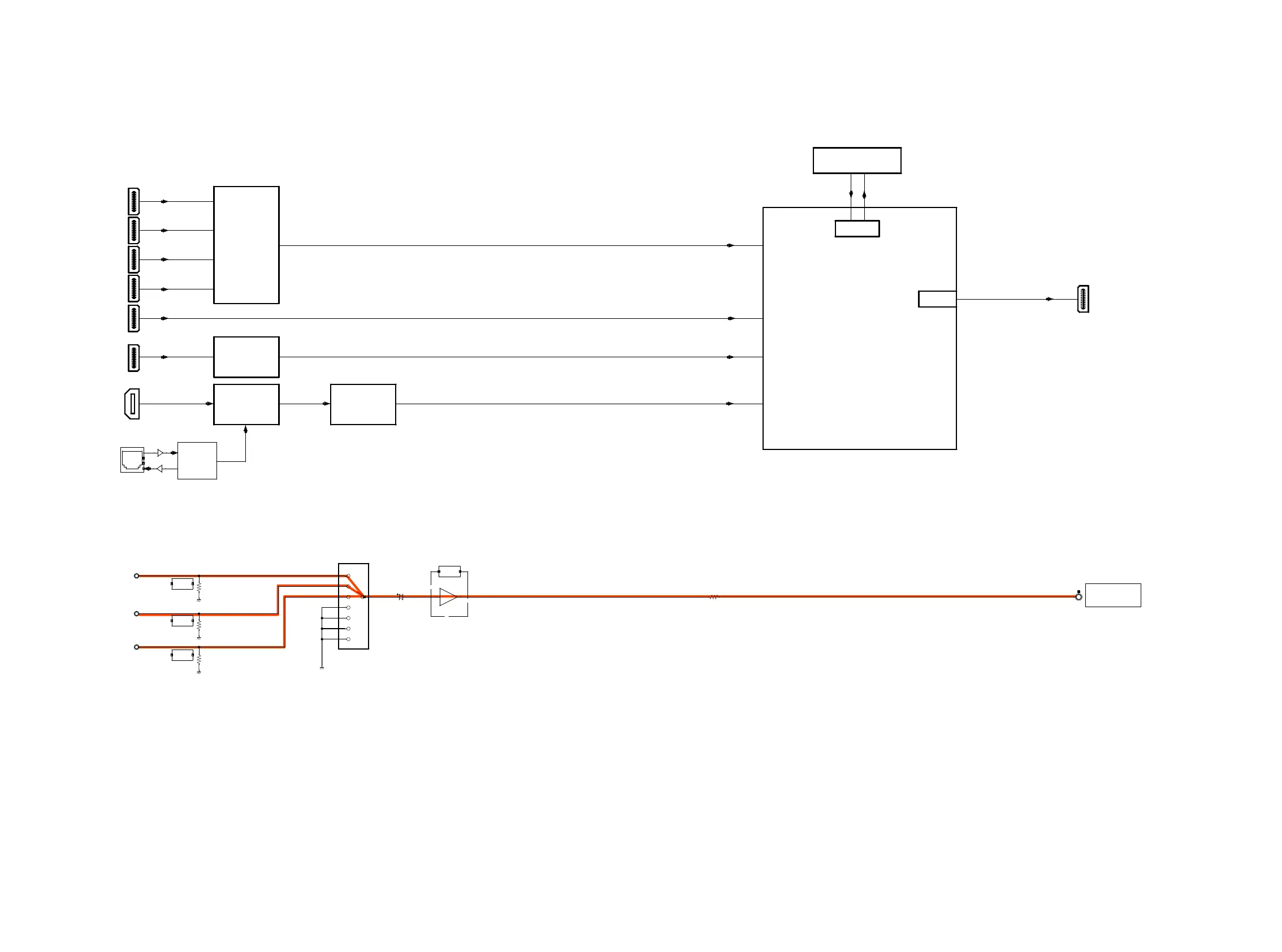

Marantz NR1504 /U1B - Block Diagram: Video Signal Path

-6dB
-6dB
-6dB
6dB
USBD+/- CCIR-656(8-BIT)
75
TMDS IN
TMDS IN
TMDS IN
TMDS IN
TMDS OUTPUT
ETHERNET
PHY
LAN8720
DM860A
TC4051
OUT1
ADV8195
BUFFER
SPI FLASH
INPUT SELECT
SLI11131
OSD
TMDS SW
ADV3002
ADV7623
HDMI TRANSCEIVER
NR1504 VIDEO DIAGRAM
Fig.1:Analog Video (Signal) Pass
IN3
IN2
IN1
USB
HDMI5
HDMI4
HDMI2
HDMI3
HDMI1
HDMI IN
ETHERNET
HDMI OUT
FRONT HDMI
CVBS IN
CVBS
MONITOR OUT
BLOCK DIAGRAM
33
