Marantz NR1504 /U1B - 9. PCB SPK Disassembly

9. PCB SPK
Proceeding : TOP COVER
→
PCB RC5_MX
→
PCB HDMI ASSY
→
AV ASSY
→
PCB SMPS
→
PCB SPK

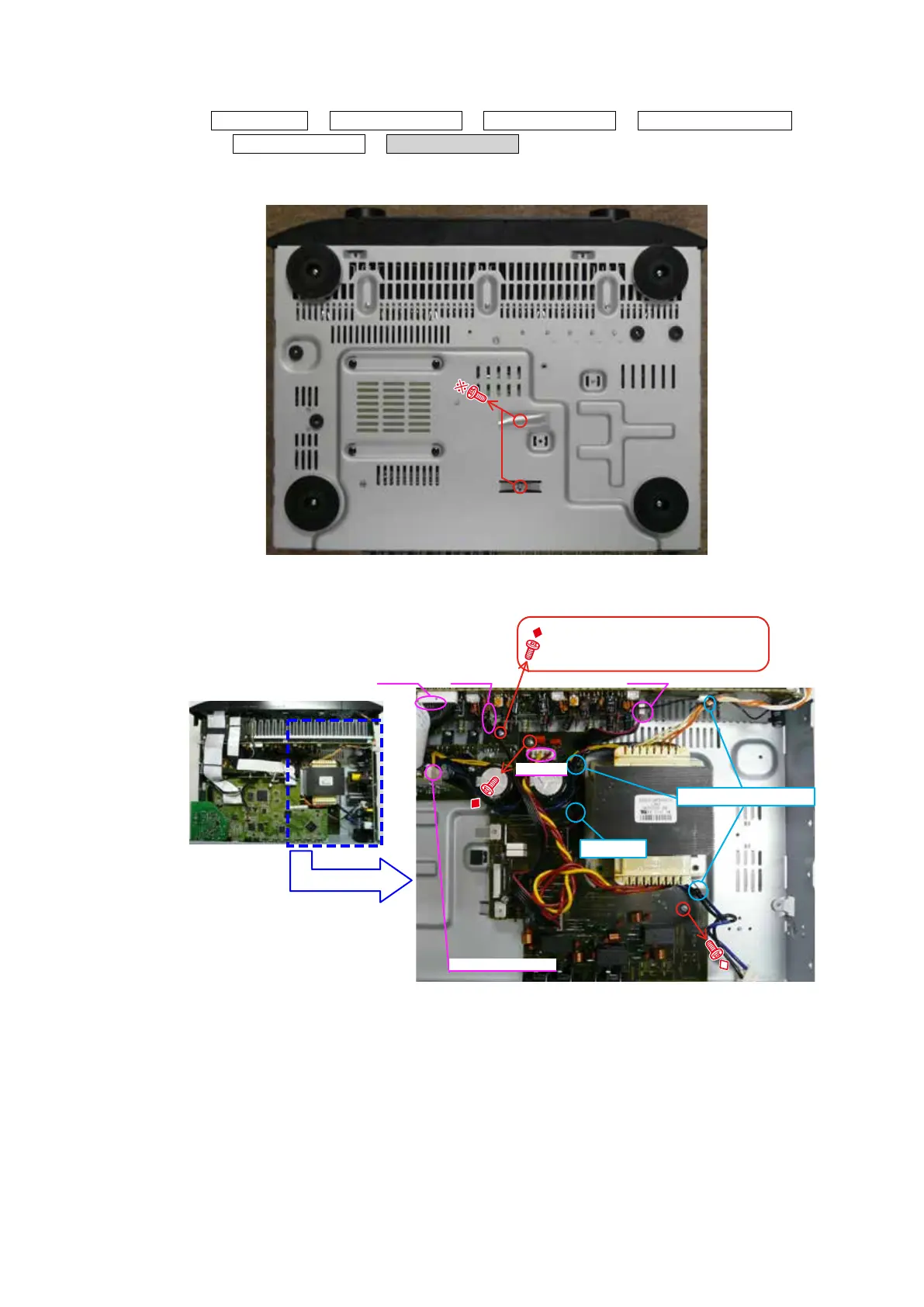

(1) Remove the screws.
(2) Disconnect the connector wires, then remove the screws and Style pin.
View from the bottom
STYLE PIN : Loosen
HOLDER
Remove the screws, after remove
the RADIATOR ASSY.
CP4001
CP4801
CP4800
CP4802
CP4602,CP4603
