6. POWER TRANS MAIN
Proceeding : TOP COVER
→
PCB RC5_MX
→
PCB HDMI ASSY
→
POWER TRANS MAIN

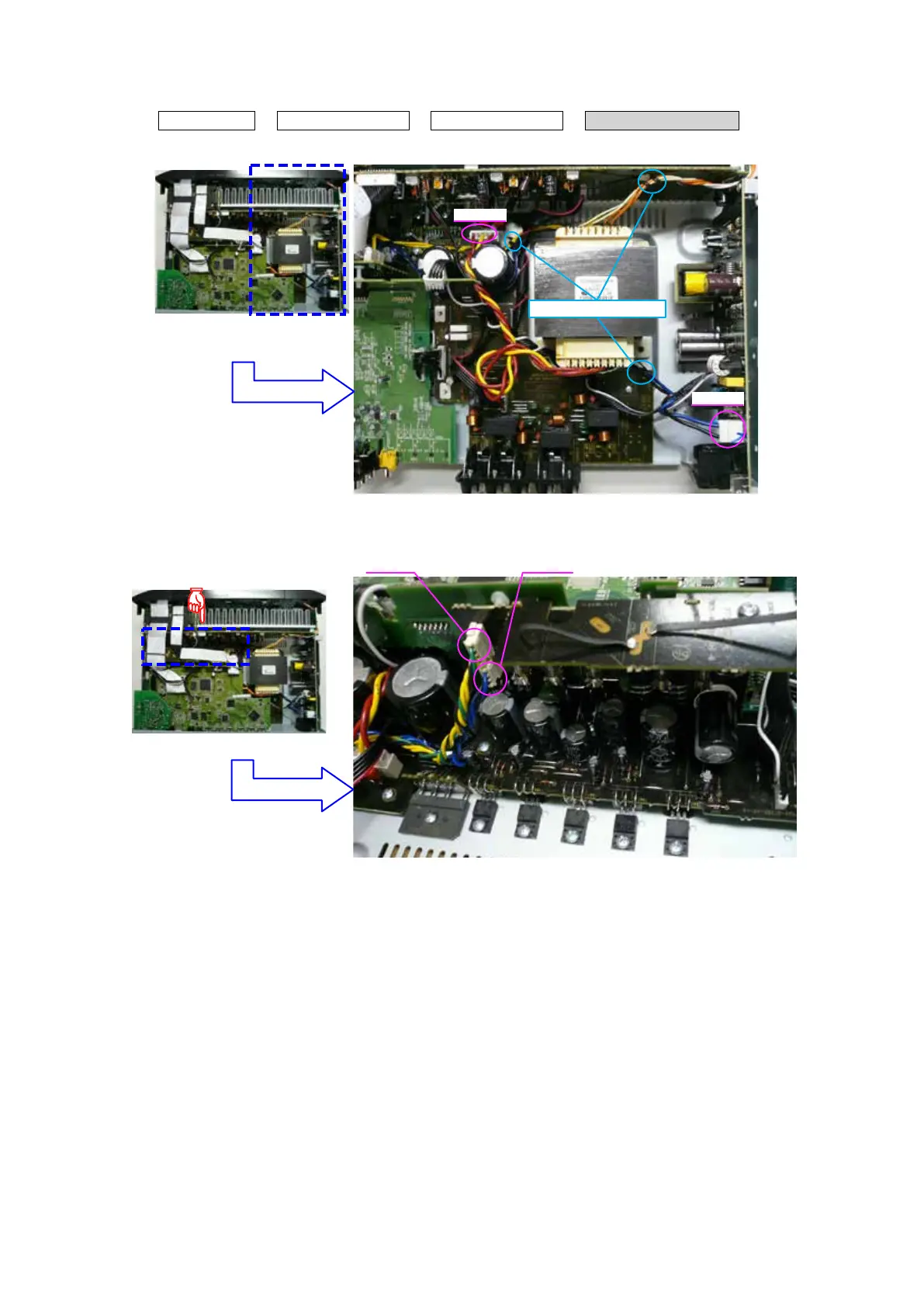

(1) Cut the wire clamp band, then disconnect the connector wires and Style pin.
(2) Disconnect the connector wires.
STYLE PIN : Loosen
CP4001
CP4142
Shooting direction: B
CP4603CP4602
