Marantz NR1504 /U1B - 2. Radiator Assy Disassembly (cont.)

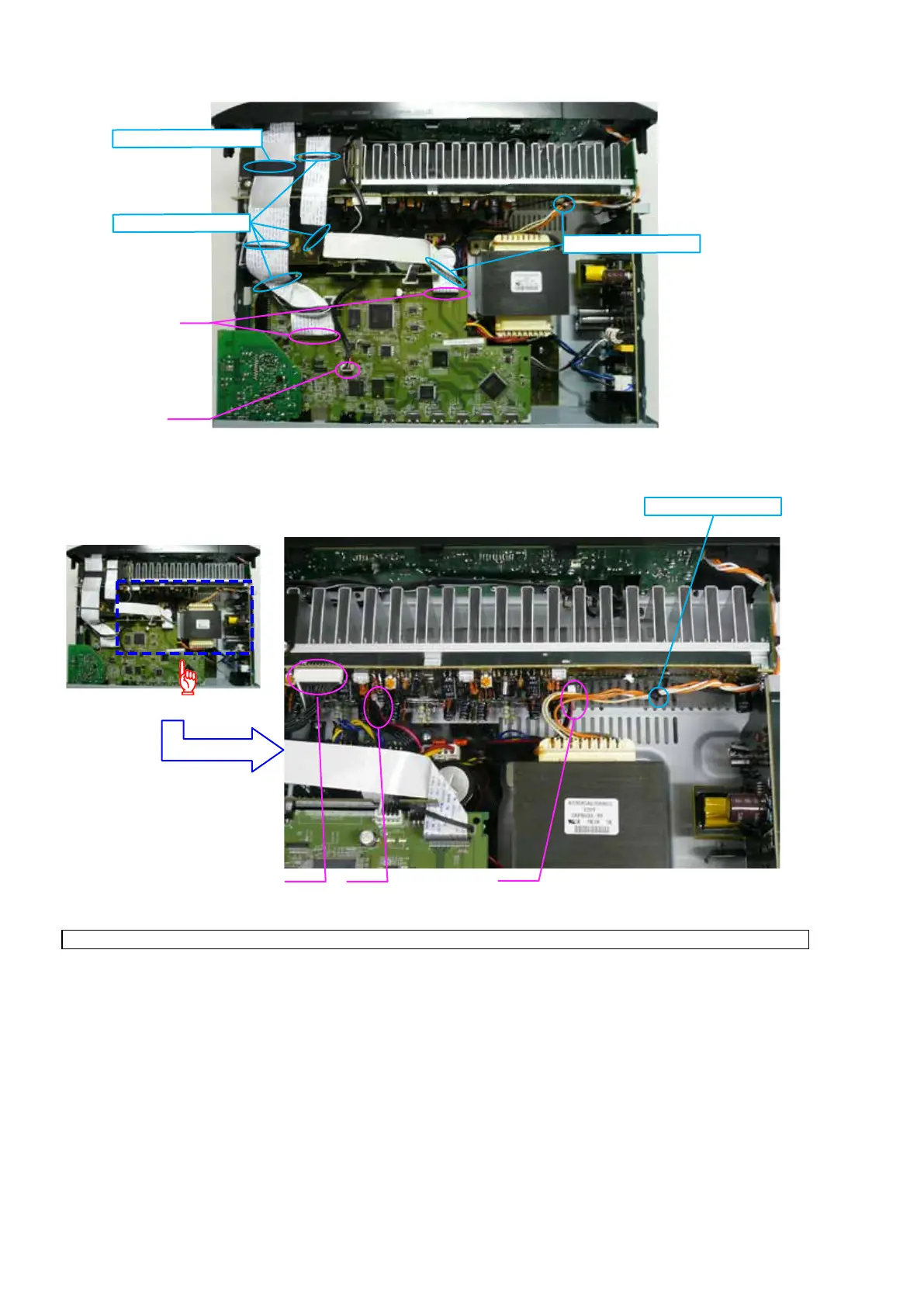

(3) Disconnect the connector wires and FFC. Remove the Style pin and screws.
(4) Disconnect the connector wires.
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in RADIATOR ASSY.
FFC
N2801
STYLE PIN:Loosen
Remove:ACETA TAPE
STYLE PIN : Loosen
STYLE PIN : Loosen
CP4801
CP4800
CP4802
