Marantz PM5004 User Manual

5
Getting started
Troubleshooting Specifi cations IndexAdvanced connections Advanced operation Explanation terms
ENGLISH
Basic operationBasic connections
Getting started

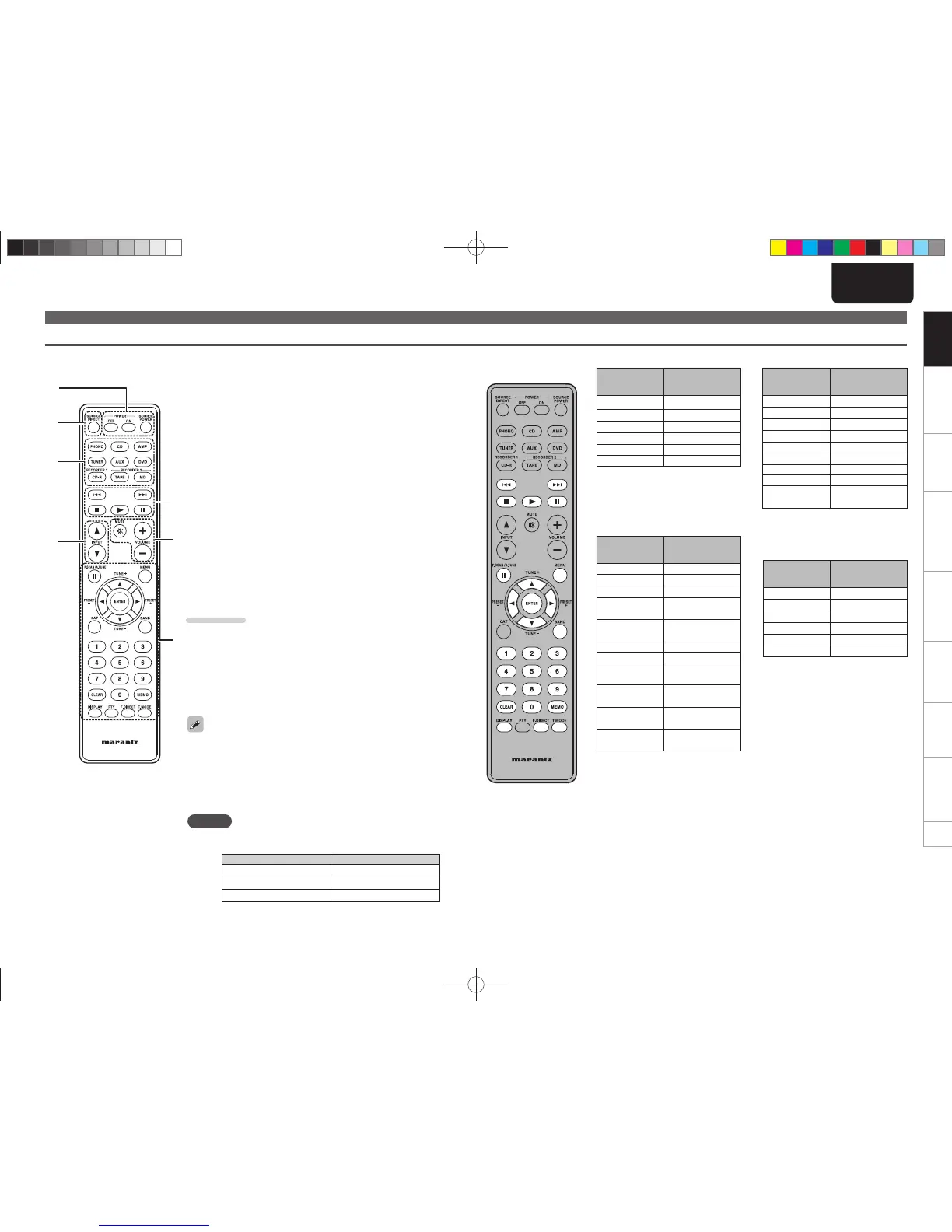

Part names and functions
q
e
t
y
t
r
w
Remote control
n CD operation
n Tuner operation
n DVD operation
n Cassette deck operation
Operation
buttons
Function
8 9
Cue
2
Stop
1
Playback
3
Pause
0 – 9 Track selection
T.MODE Sound mode selection
Operation
buttons
Function
8 9
Cue
2
Stop
1
Playback
3
Pause
MENU Menu
d f 0 1
Cursor operation
ENTER Enter setting
0 – 9 Enter number
DISPLAY
Display disc
information
Operation
buttons
Function
8
Fast-rewind
9
Fast-forward
2
Stop
1
Playback
3
Pause
CLEAR Counter reset
Operation
buttons
Function
P.SCAN/A.TUNE preset scan
d/TUNE+
Tuning up
f/TUNE–
Tuning down
0/PRESET–
Preset channel
selection
1/PRESET+
Preset channel
selection
BAND FM/AM switching
0 – 9 Enter number
CLEAR
Clear memory
or input data
MEMO
Save preset
station number
F.DIRECT
Direct frequency
tuning
T.MODE
Auto stereo/
monaural switching
• The remote control buttons may
not function properly for some
Marantz tuners.
You can use the supplied remote control to operate this unit and
Marantz audio components such as CD players, tuners, DVD players,
and tape decks. See “Operating Marantz audio components”(vpage
5).
q POWER ON/STANDBY buttons ··············································· (8)
• POWER ON button
• POWER OFF button
• SOURCE POWER button
You can press this button to switch the mode of Marantz audio
components (provided with a power standby function) between
power-on and standby.
w SOURCE DIRECT button ··························································· (9)
e Input selector buttons ······························································ (5)
r INPUT d/f buttons ··································································· (9)
t Component operating buttons
y VOLUME adjustment buttons ·············································· (8, 9)
• MUTE Button
• VOLUME + / – Button
n Operating Marantz audio components
Operation
1 Press the corresponding e Input selector button of the audio
component for selecting the input source to be used in playback
and recording.
• The remote control operation is switched to operation mode of the
selected input source.
• This unit’s function will be switched accordingly.
2 Operate the audio component.
• See the table on the right for the buttons you can use.
• The remote control e Input selector buttons are used to select the
input source for this unit and switch the remote control operation
mode at the same time.
• You can operate the remote control of this unit regardless of the
remote control mode setting.
• To use the remote control correctly, also refer to the operating
instructions of other components.
NOTE
Some input terminals of this unit and corresponding input selector
buttons on the remote control have different names, as shown below.
Remote control buttons The unit input terminals
AUX, DVD AUX/DVD
CD-R RECORDER1
TAPE, MD RECORDER2
1.PM5004NENG校了.inddSec1:51.PM5004NENG校了.inddSec1:5 2010/05/2020:24:452010/05/2020:24:45

Marantz PM5004 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	10 - 50000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	85 dB
Total Harmonic Distortion (THD)	0.0001 %
Dynamic power per channel (4 Ohm)	60 W
Dynamic power per channel (8 Ohm)	45 W
RMS power output per channel (4 Ohm)	55 W
RMS power output per channel (8 Ohm)	40 W
Bridge-mode power output per channel (4 Ohm)	80 W
AC (power) in	Yes
Audio (L/R) in	6
Audio (L/R) out	2
Headphone outputs	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	110 W

Weight and Dimensions

Depth	369 mm
Width	440 mm
Height	105 mm
Weight	6700 g
