Specifi cations
• RMS Power output
(40 Hz – 20 kHz simultaneous drive of both channels): 40 W x 2 (8 Ω load)
55 W x 2 (4 Ω load)
• Total harmonic distortion
(40 Hz – 20 kHz simultaneous drive of both channels, 8 Ω load): 0.01 %
• Output band width
(8 Ω load, 0.06%): 10 Hz – 30 kHz
• Frequency response
(CD, 1 W, 8 Ω load): 10 Hz – 50 kHz +0 dB, -1 dB
• Dumping factor
(8Ω load, 40Hz – 20kHz): 100
• Input sensitivity/Input impedance
PHONO (MM): 2.2 mV/47 kΩ
CD, LINE, TUNER, AUX/DVD, RECORDER: 200 mV/20 kΩ
• Maximum allowable PHONO input level (1 kHz)
MM: 110 mV
RIAA deviation (40 Hz – 20 kHz): ±0.5 dB
• S/N (IHF-A, 8 Ω load)
PHONO (MM): 83 dB (5 mV input, 1W output)
CD, LINE, TUNER, AUX/DVD, RECORDER: 103 dB (2 V input, Rated output)
• Tone control
Bass (100 Hz): ±10 dB
Treble (10 kHz): ±10 dB
• Power requirement: AC 230 V 50/60 Hz
• Power consumption
(EN60065): 110 W
• Power consumption during standby: 0.4 W
• Weight: 6.7 kg
zFor the purpose of improvement, the specifi cations and design are subject to change without notice.
Specifi cations

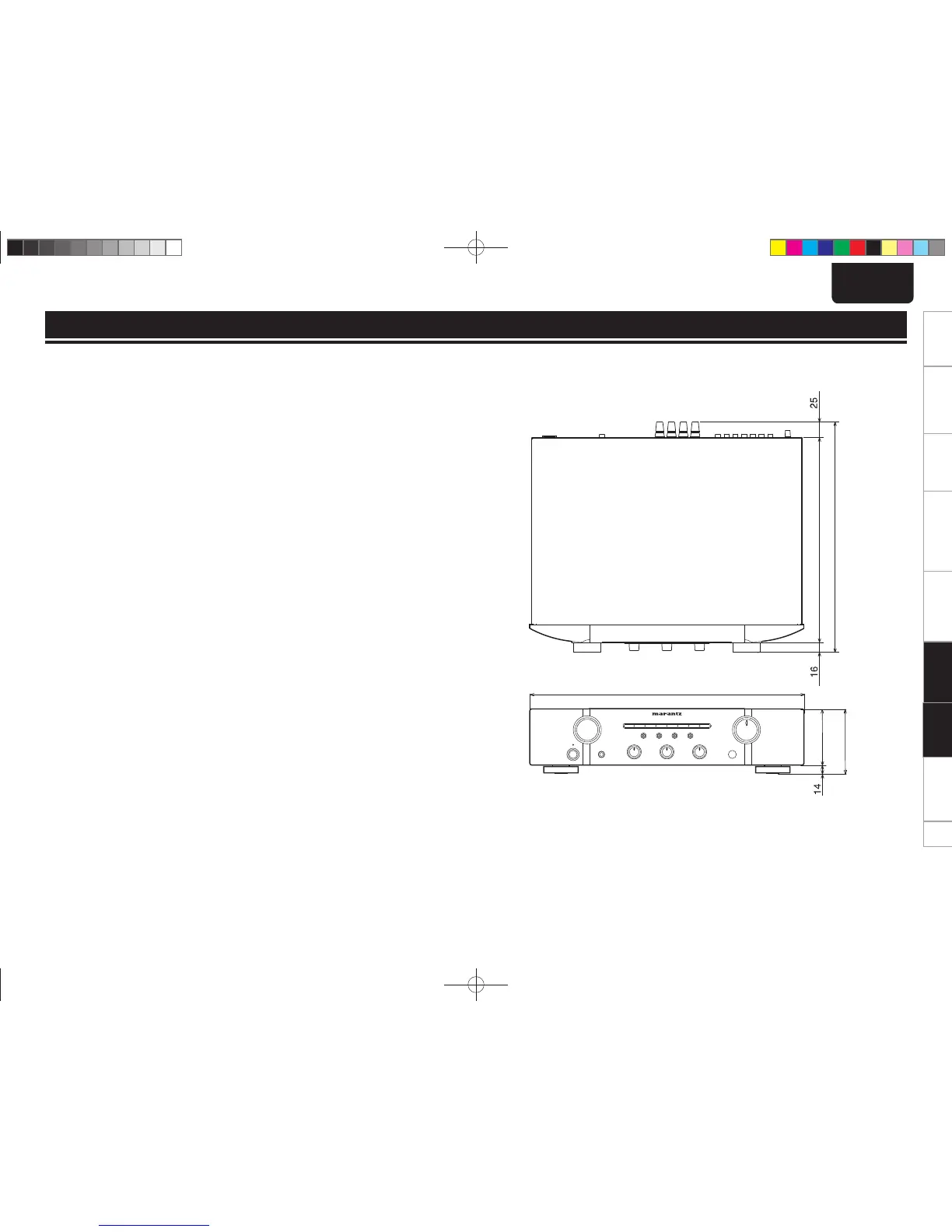

Dimensions (unit: mm)
440
91
105
370 329
1.PM5004NENG校了.inddSec1:131.PM5004NENG校了.inddSec1:13 2010/05/2020:24:472010/05/2020:24:47

Marantz PM5004 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	10 - 50000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	85 dB
Total Harmonic Distortion (THD)	0.0001 %
Dynamic power per channel (4 Ohm)	60 W
Dynamic power per channel (8 Ohm)	45 W
RMS power output per channel (4 Ohm)	55 W
RMS power output per channel (8 Ohm)	40 W
Bridge-mode power output per channel (4 Ohm)	80 W
AC (power) in	Yes
Audio (L/R) in	6
Audio (L/R) out	2
Headphone outputs	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	110 W

Weight and Dimensions

Depth	369 mm
Width	440 mm
Height	105 mm
Weight	6700 g
