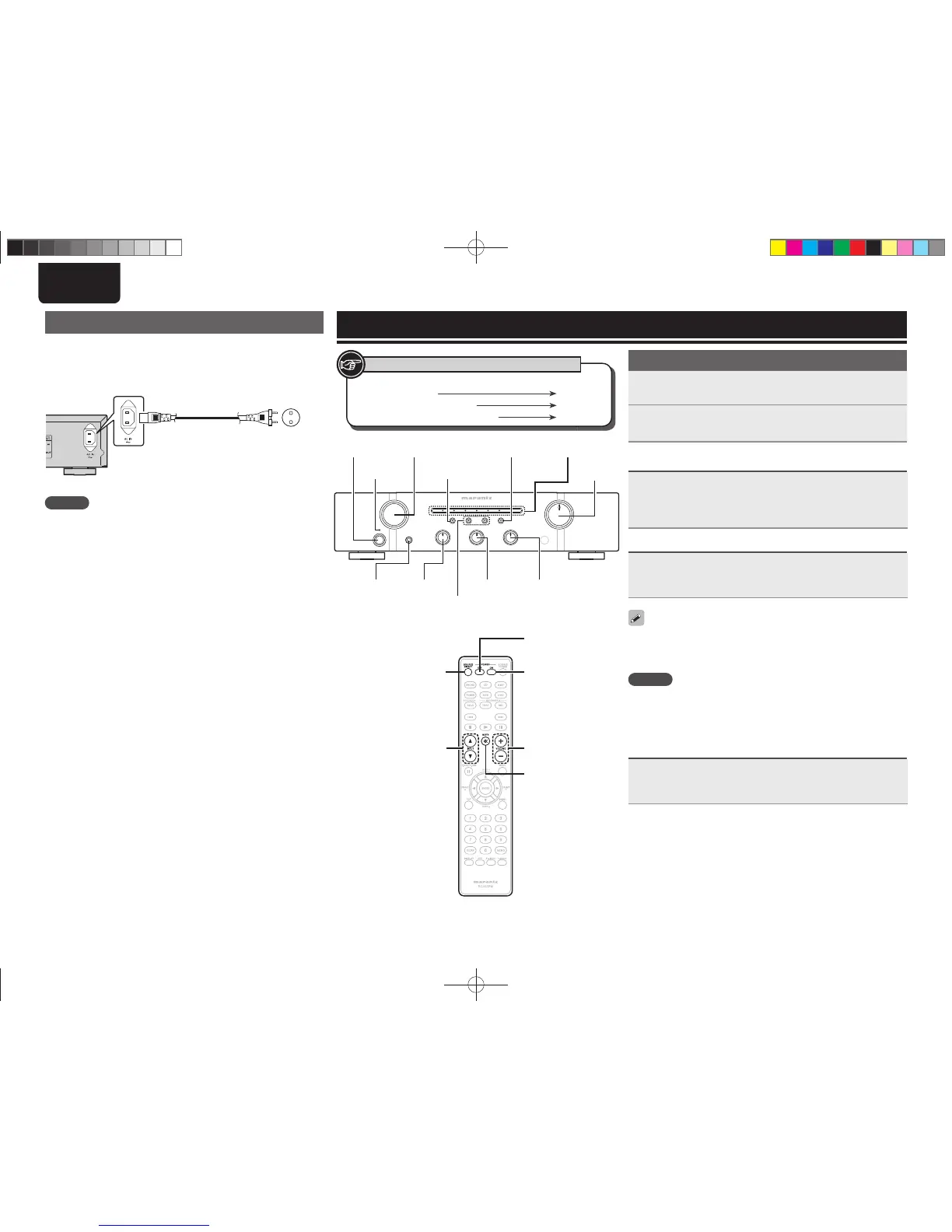

Marantz PM5004 User Manual

8
ENGLISH
Connecting the power cord
Wait until all connections have been completed before connecting the
power cord.
To household power
outlet
(AC 230 V, 50 Hz, 60 Hz)
Power cord
(supplied)
NOTE
• Insert the plugs securely. Loose connections will result in the
generation of noise.
• Do not use any cord other than the provided power cord.
Basic operation
Button located on both the main unit and
the remote control BUTTON
Button only on the main unit <BUTTON>
Button only on the remote control [BUTTON]
Symbols used to indicate buttons in this manual
VOLUME
SOURCE DIRECT
<BASS>
<TREBLE>
<BALANCE>
<INPUT SELECTOR> <LOUDNESS>
<SPEAKERS A/B>
<ON/OFF>
[POWER OFF]
[POWER ON]
VOLUME[INPUTd,f]
SOURCE DIRECT
[MUTE]
Before use
1
Turn the VOLUME all the way down.
2
Set <BASS>, <TREBLE> and <BALANCE> to the
center positions.
Turning the power on
Press <ON/OFF>.
• Power is turned on.
• Input indicator for the selected source lights.
• The unit will be ready to start playback after several seconds.
Turning the power standby
Press [POWER OFF].
• The power is set to the standby mode.
• The Power indicator lights in red.
• Press[POWER ON] to turn on power from standby mode.
• You can also turn on power by using either <INPUT SELECTOR> or
[INPUT d,f] from standby mode.
NOTE
Power continues to be supplied to some of the circuitry even when the
power is in the standby mode. When leaving home for long periods of
time or when going on vacation, either press <ON/OFF> to turn off the
power, or unplug the power cord from the power outlet.
Turning the power off
Press <ON/OFF>.
• Power is turned off.
• All indicators will turn off.
Power
indicator
PHONES
jack
Input
indicators
1.PM5004NENG校了.inddSec1:81.PM5004NENG校了.inddSec1:8 2010/05/2020:24:462010/05/2020:24:46

Marantz PM5004 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	10 - 50000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	85 dB
Total Harmonic Distortion (THD)	0.0001 %
Dynamic power per channel (4 Ohm)	60 W
Dynamic power per channel (8 Ohm)	45 W
RMS power output per channel (4 Ohm)	55 W
RMS power output per channel (8 Ohm)	40 W
Bridge-mode power output per channel (4 Ohm)	80 W
AC (power) in	Yes
Audio (L/R) in	6
Audio (L/R) out	2
Headphone outputs	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	110 W

Weight and Dimensions

Depth	369 mm
Width	440 mm
Height	105 mm
Weight	6700 g
